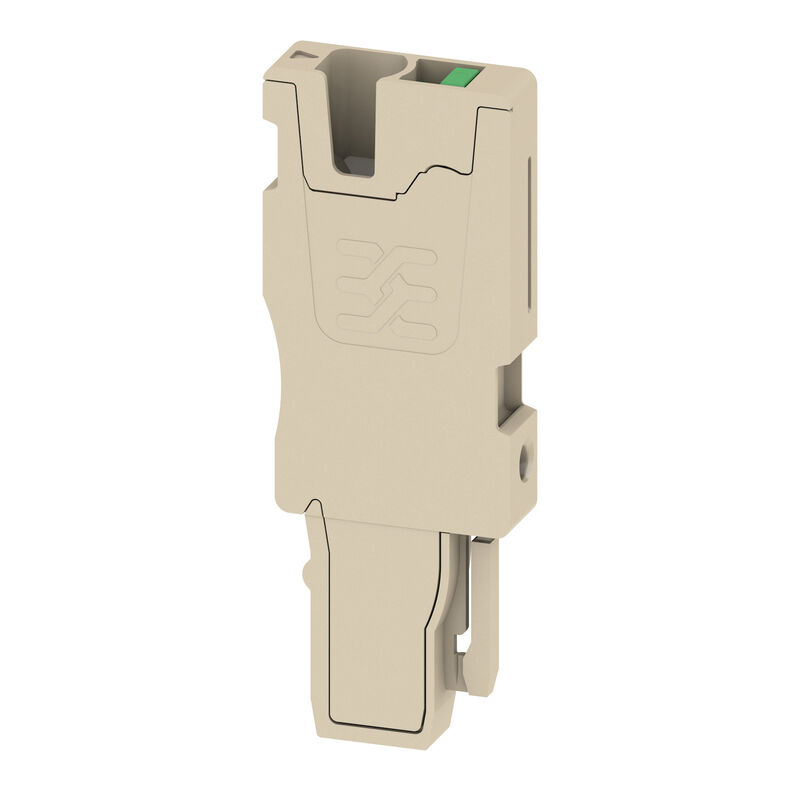

SPG 2.5/1

SPG 2.5/1

Plug (terminal), SNAP IN, 2.5 mm², 24 A, 800 V, Number of connections: 1, Number of poles: 1, Width: 5.1 mm

Produkt ID 3030250000
Download datablad Engineering-support
Tilbehør 11 Er tilbehør til 20 Anvendte produkter 316
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Conductors for clamping (rated connection) General Rating data UL rating data Classifications

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
ec

General ordering data

Ausfuehrung
Plug (terminal), SNAP IN, 2.5 mm², 24 A, 800 V, Number of connections: 1, Number of poles: 1, Width: 5.1 mm
Order No.
3030250000
Type
SPG 2.5/1
GTIN (EAN)
4099986973275
Qty.
50 Styk

Dimensions and weights

Depth
42,5 mm
Depth (inches)
1,673 inch
Altura
16,5 mm
Height (inches)
0,65 inch
Width
5,1 mm
Width (inches)
0,201 inch
Net weight
3,688 g

Temperatures

Storage temperature
-25 °C...55 °C
Temperatura otoczenia
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
Colour of operational elements
green
UL 94 flammability rating
V-0

System specifications

End cover plate required
No
Number of potentials
1
Number of levels
1

Conductors for clamping (rated connection)

Calibre selon 60 947-1
A3
Connection cross-section, stranded, max.
2,5 mm²
Connection cross-section, stranded, min.
0,34 mm²
Csatlakozás típusa
SNAP IN
Csatlakozási irány
top
Csupaszolási hossz
10 mm
Ledararea, fintrådig, min.
0,34 mm²
Ledardiameter, fintrådig, max.
2,5 mm²
Numero di collegamenti
1
Section de raccordement du conducteur, AWG, max.
AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,34 mm²
Сечение соединения проводов, тонкий скрученный с кабельными наконечниками DIN 46228/1, макс.
2,5 mm²
Сечение соединения проводов, тонкий скрученный с кабельными наконечниками DIN 46228/1, мин.
0,34 mm²
クランプ範囲、最大
4 mm²
クランプ範囲、最小
0,34 mm²
刃寸法
0.6 x 3.5 mm
导线连接截面积，单股硬导线，最大
2,5 mm²
导线连接截面积，单股硬导线，最小
0,34 mm²
결선 단면규격 AWG, 최소
AWG 22
와이어 결선 단면적, 와이어 종단 페룰 DIN 46228/4 채용 가는 꼬임, 최대
2,5 mm²

General

Normes
In accordance with IEC 60947-7-1
Number of poles
1
Section de raccordement du conducteur, AWG, max.
AWG 14
Section de raccordement du conducteur, AWG, min.
AWG 22

Rating data

Rated cross-section
2,5 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
24 A
Current at maximum wires
24 A
Standards
In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0,77 mW
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
ec
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
22 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
22 AWG
Current size B (cURus)
20 A
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
