UR20-PF-I

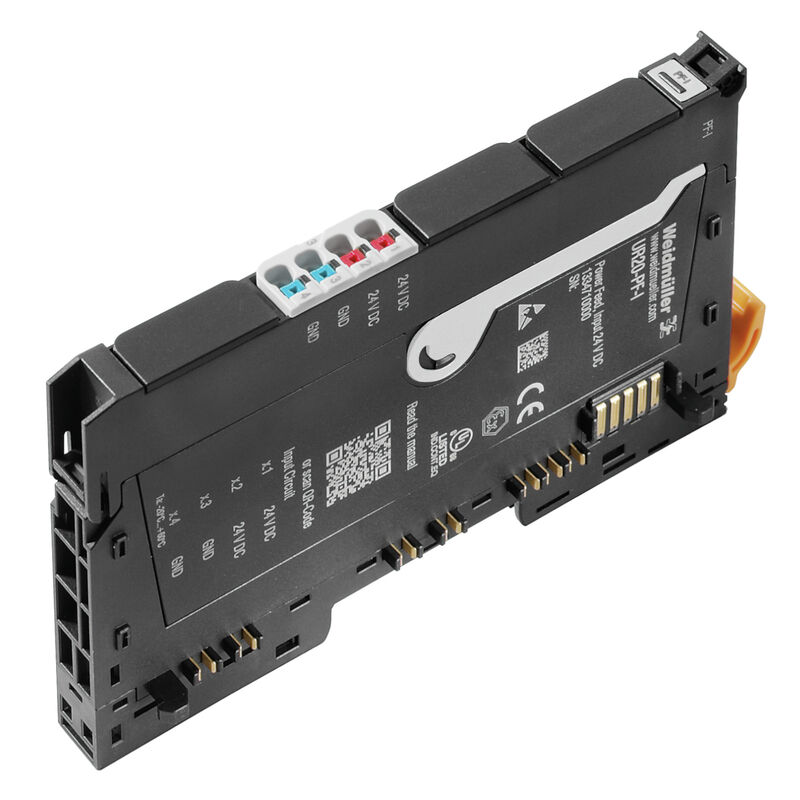

Product image
UR20-PF-I
Block diagram
UR20-PF-I

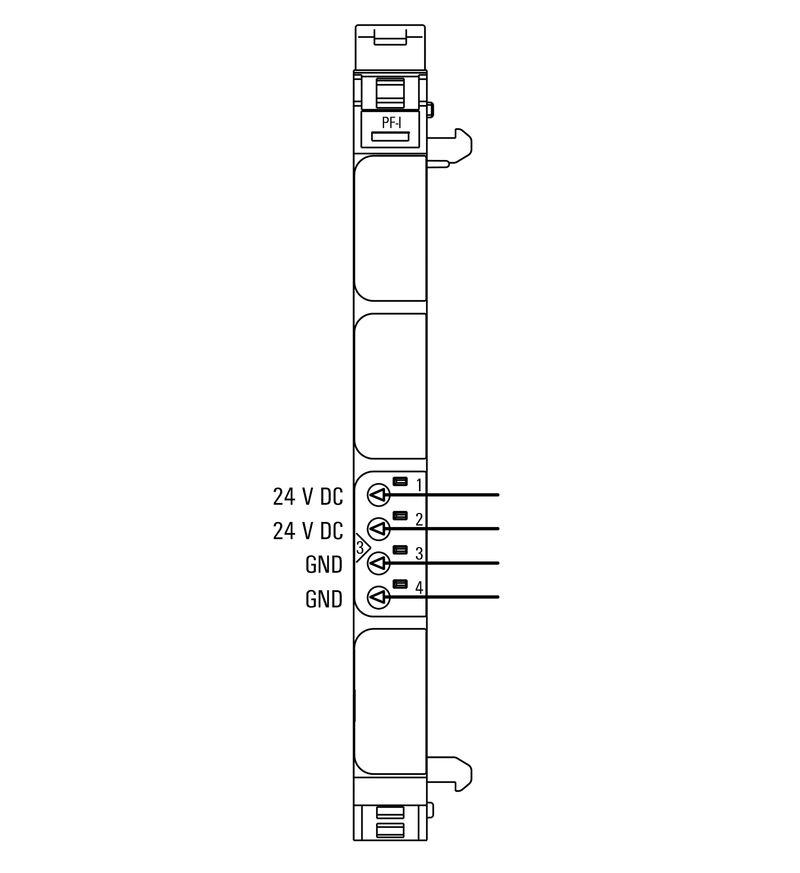

Connection diagram
UR20-PF-I
Explanation of abbreviations

UR20-PF-I

Remote I/O module, IP20, Power supply unit, 24 VDC-Input

Produkt ID 1334710000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 12 Reservedele 3 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data Datos generales Alimentation électrique System data Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d2e83968-d07b-4c8a-82b2-25cf0c69fee7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/dde5b188-d0b1-4486-8f22-54b343043814/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/343066b4-2123-4788-b278-3ff01ec50f19/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cULus)
E141197
Certificate no. (cULusEX)
E223527

General ordering data

Ausfuehrung
Remote I/O module, IP20, Power supply unit, 24 VDC-Input
Best.-Nr.
1334710000
Art
UR20-PF-I
GTIN (EAN)
4050118138023
VPE
1 Styk

Dimensions and weights

Tiefe
76 mm
Depth (inches)
2,992 inch
Höhe
120 mm
Height (inches)
4,724 inch
Breite
11,5 mm
Width (inches)
0,453 inch
Befestigungsmaß Höhe
128 mm
Net weight
76 g

Temperatures

Lagertemperatur
-40 °C ... +85 °C
Betriebstemperatur
-20 °C...60 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8
Product Carbon Footprint
  • Cradle to gate:
    7,959 kg CO2 eq.

Connection data

Anschlussart
PUSH IN
Leiteranschlussquerschnitt, eindrähtig, max.
1,5 mm²
Leiteranschlussquerschnitt, eindrähtig, max. (AWG)
AWG 16
Leiteranschlussquerschnitt, eindrähtig, min.
0,14 mm²
Leiteranschlussquerschnitt, eindrähtig, min. (AWG)
AWG 26
Leiteranschlussquerschnitt, feindrähtig, max.
1,5 mm²
Leiteranschlussquerschnitt, feindrähtig, max. (AWG)
AWG 16
Leiteranschlussquerschnitt, feindrähtig, min.
0,14 mm²
Leiteranschlussquerschnitt, feindrähtig, min. (AWG)
AWG 26

Datos generales

Brennbarkeitsklasse nach UL 94
V-0
Luftdruck (Betrieb)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Luftdruck (Lagerung)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Luftdruck (Transport)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Luftfeuchtigkeit (Betrieb)
10% to 95%, non-condensing as per DIN EN 61131-2
Luftfeuchtigkeit (Lagerung)
10% to 95%, non-condensing as per DIN EN 61131-2
Luftfeuchtigkeit (Transport)
10% to 95%, non-condensing as per DIN EN 61131-2
Prüfspannung
500 V
Schock
15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Tragschiene
TS 35
Verschmutzungsgrad
2
Vibrationsfestigkeit
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Überspannungskategorie
II

Alimentation électrique

Current consumption from IIN (the respective power segment)
<10 mA
Einspeisestrom für IIN (Eingangsstrompfad) , max.
10.000 mA
Versorgungsspannung
24 V DC +20 %/ -15 %
Versorgungsspannung für System und Eingänge
24 V DC +20 %/ -15 %

System data

Feldbusprotokoll
PROFINET IRT
PROFINET RT
CC-Link IE TSN
IEC 61162-450
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
CANopen
DeviceNet
POWERLINK
CC-Link
Modulart
Power-feed module
Schnittstelle
u-remote system bus

Classifications

ETIM 8.0
EC001600
ETIM 9.0
EC001600
ETIM 10.0
EC001600
ECLASS 14.0
27-24-26-10
ECLASS 15.0
27-24-26-10
