Ominaisuudet

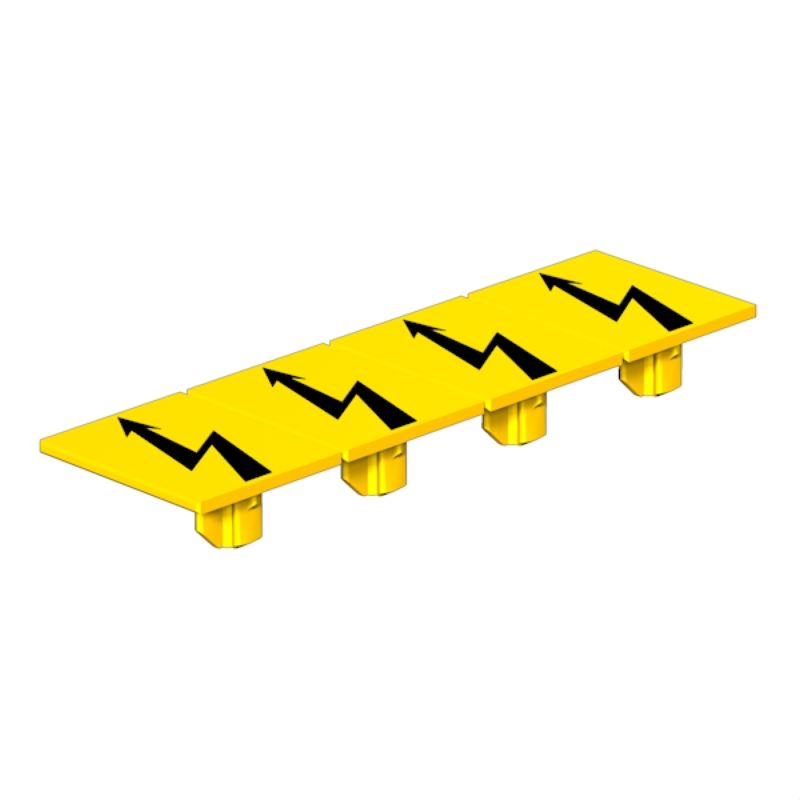

| Version | Terminal marker, 14 x 12 mm, yellow |
| Order No. | 2635590000 |
| Type | AAM 16 YE FLASH |
| GTIN (EAN) | 4050118674538 |
| Qty. | 40 items |
| Depth | 5,3 mm |
| Depth (inches) | 0,209 inch |
| Height | 14 mm |
| Height (inches) | 0,551 inch |
| Width | 12 mm |
| Width (inches) | 0,472 inch |
| Net weight | 0,218 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 6.6 |
| Colour | yellow |
| UL 94 flammability rating | V-2 |
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | −40 °C |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_213448) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2635590000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
On lisävaruste
-
Tuotteen tunnus:2502320000VPE:20 items
Supply terminal, PUSH IN, 16 mm², 800 V, 76 A, blue
-
Tuotteen tunnus:2502280000VPE:20 items
Supply terminal, PUSH IN, 16 mm², 800 V, 76 A, dark beige
-
Tuotteen tunnus:2675050000VPE:20 items
PE terminal, PUSH IN, 16 mm², 1000 V, Green/yellow
-
Tuotteen tunnus:2675020000VPE:20 items
PE terminal, PUSH IN, 16 mm², 1000 V, Green/yellow
-
Tuotteen tunnus:2494020000VPE:20 items
PE terminal, PUSH IN, 16 mm², 1000 V, Green/yellow
-
Tuotteen tunnus:2494010000VPE:20 items
PE terminal, PUSH IN, 16 mm², 1000 V, Green/yellow
-
Tuotteen tunnus:2494090000VPE:20 items
Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, dark beige
-
Tuotteen tunnus:2494100000VPE:20 items
Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, blue
-
Tuotteen tunnus:2494080000VPE:20 items
Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, blue
-
Tuotteen tunnus:2494000000VPE:20 items
Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, dark beige
-
Tuotteen tunnus:2675010000VPE:20 items
Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, blue
-
Tuotteen tunnus:2675000000VPE:20 items
Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, dark beige
-
Tuotteen tunnus:2675030000VPE:20 items
Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, dark beige
-
Tuotteen tunnus:2675040000VPE:20 items
Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, blue
