Ominaisuudet
| Version | Display, Input : 4-20 mA, (loop powered), HART® transparency, Output : Display |
| Order No. | 2920000000 |
| Type | ACT20D-LCD-CI-ILP |
| GTIN (EAN) | 4099986580336 |
| Qty. | 1 items |
| Depth | 120 mm |
| Depth (inches) | 4,724 inch |
| Height | 48 mm |
| Height (inches) | 1,89 inch |
| Width | 96 mm |
| Width (inches) | 3,78 inch |
| Net weight | 262 g |
| Storage temperature | -20 °C...60 °C |
| Operating temperature | -20 °C...60 °C |
| Humidity | 0...95 % (no condensation) |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | f4905d12-f516-4eb5-90a8-8c87685bc956 |
| Adjustment of display backlighting |
0%
50% 100% |
| Decimal point | 18888, 1.8888, 18.888, 188.88, 1888.8 |
| Dimmable | Yes |
| Display range | -9999...9999 |
| Display value | Current |
| Scaling | Variable |
| Type | 4-character, LCD display, 16 mm |
| Accuracy | <0.1 % of measuring range |

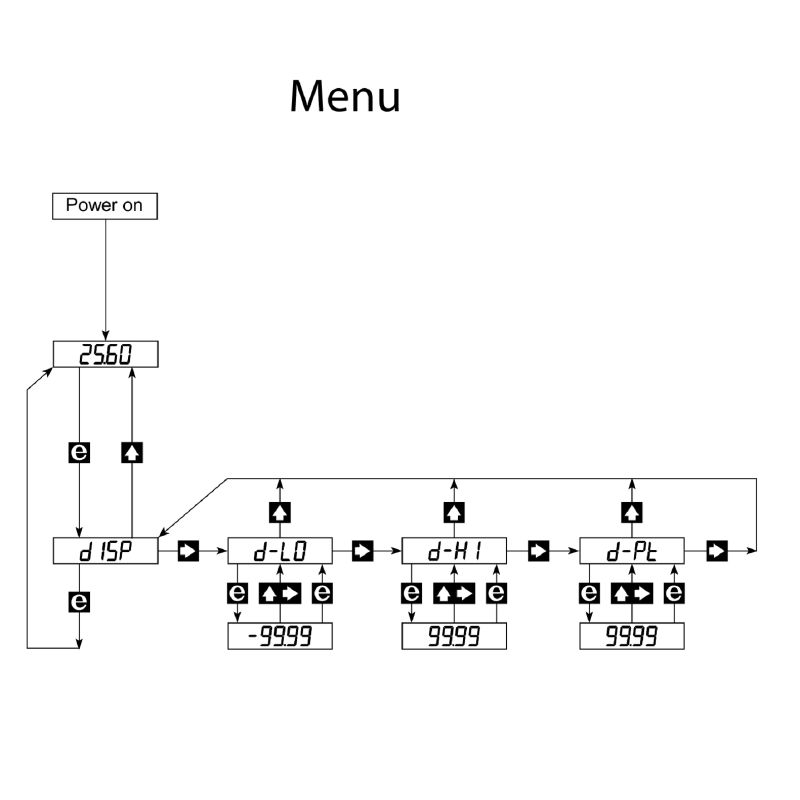

| Configuration |
Front push-button

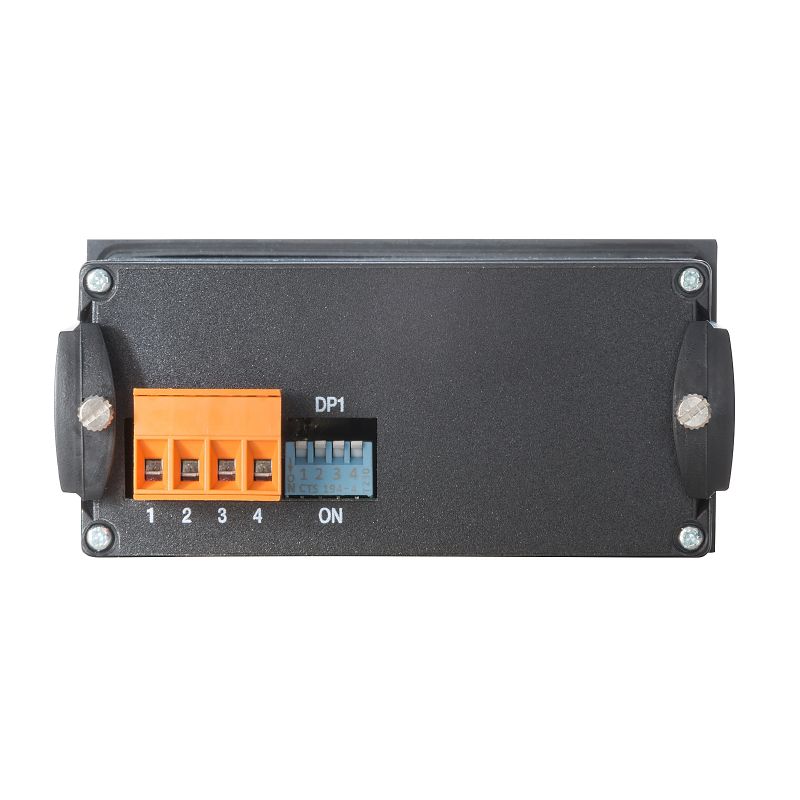

DIP switch to lock / unlock the front push-button |
| DIN Rail compatibility | No |
| HART® transparency supported | Yes |
| Protection degree |
IP20
IP65 (in plugged condition) IP65 |
| Step response time | ≤1s |
| Temperature coefficient | ≤ 0.01 °C of measuring range / °C |
| Type of connection | Tension clamp connection with actuator |
| Type of mounting |
Frontpanel mounting
Front mounting |
| Voltage supply | Loop powered, via 4…20 mA input |
| HART® transparency supported | Yes |
| Input current | 4…20mA |
| Input measurement range | 3.6 … 23 mA (NAMUR NE43 conform) |
| Number of inputs | 1 |
| Response time | ≤ 1 s |
| Sensor |
Current source
4- wire sensor (with own power supply) |
| Type of signal forwarding according to HART® | unchanged |
| Voltage drop, current input |
without backlight <1.5 V @ 20 mA
half backlight <6.5 V @ 20 mA full backlight <10.5 V @ 20 mA |
| Wire connection method | Screw connection |
| Type of connection | Tension clamp connection with actuator |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section, finely stranded, min. | 0,13 mm² |
| Wire connection cross section, finely stranded, max. | 2,8 mm² |
| Approval/Certificate/Document of Conformity |
[RCM certification](https://mdcop.weidmueller.com/mediadelivery/asset/900_303793)
[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_306635) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_317371) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2920000000) |
| User Documentation | [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_306536) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC000677 |
| ETIM 7.0 | EC000677 |
| ETIM 8.0 | EC000677 |
| ETIM 9.0 | EC000677 |
| ECLASS 9.0 | 27-14-31-10 |
| ECLASS 9.1 | 27-21-03-01 |
| ECLASS 10.0 | 27-14-31-10 |
| ECLASS 11.0 | 27-14-31-10 |
| ECLASS 12.0 | 27-14-31-10 |
| ECLASS 13.0 | 27-14-31-10 |
| ECLASS 14.0 | 27-14-31-10 |
| Approvals |  |
| ROHS | Conform |
