ACT20M-CI-2CO-S

Signal splitter, Signal distributor, Input : 0(4)-20 mA, Output : 2 x 0(4) - 20 mA

Tuotteen tunnus 1175990000

Ominaisuudet

General ordering data

Version	Signal splitter, Signal distributor, Input : 0(4)-20 mA, Output : 2 x 0(4) - 20 mA
Order No.	1175990000
Type	ACT20M-CI-2CO-S
GTIN (EAN)	4032248969982
Qty.	1 items

Dimensions and weights

Depth	114,3 mm
Depth (inches)	4,5 inch
Height	112,5 mm
Height (inches)	4,429 inch
Width	6,1 mm
Width (inches)	0,24 inch
Net weight	83,6 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-25 °C...70 °C
Humidity at operating temperature	0...95 % (no condensation)
Humidity	40 °C / 93 % rel. humidity, no condensation

Probability of failure

SIL in compliance with IEC 61508	None
MTBF	219 a

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	2f6dd957-421a-46db-a0c2-cf1609156924

Input

Input current	0...20 mA 4...20 mA
Input resistance, current	70 Ω
Number of inputs	1
Sensor	Current source Sensor with own supply 4-wire sensor
Voltage drop, current input	<1.5 V

Output

Cut-off frequency (-3 dB)	100 Hz
Load impedance current	<300 Ω per channel @ max 23mA
Number of outputs	2
Output current	0...20 mA 4...20 mA
Type	active connected control must be passive

General data

Accuracy	<0.05 % of measuring range
Configuration	none
Galvanic isolation	3-way isolator
Power consumption, max.	0,8 W
Power consumption, typ.	0,45 W
Protection degree	IP20
Rail	TS 35
Step response time	≤ 7 ms
Temperature coefficient	≤ 0.01 % / °C
Voltage supply	24 V DC ±30 % at terminal or via CH20M rail bus

Insulation coordination

EMC standards	IEC 61326-1
Galvanic isolation	3-way isolator
Insulation voltage	2.5 kV_eff /1 min.
Pollution severity	2
Rated voltage	300 V_eff
Surge voltage category	II

Data for Ex applications (ATEX)

Installation location	Device installed in safe area, zone 2
Marking	II 3 G Ex nA IIC T4 Gc

Connection data

Type of connection	Screw connection
Tightening torque, min.	0,4 Nm
Tightening torque, max.	0,6 Nm
Clamping range, rated connection	2,5 mm²
Clamping range, min.	0,5 mm²
Clamping range, max.	2,5 mm²
Wire connection cross section AWG, min.	AWG 30
Wire connection cross section AWG, max.	AWG 14

EMC conformity and approvals

EMC standards	IEC 61326-1
Safety standard	UL 61010-1
Ship use	DNV-GL
Standards	ATEX EN 60079-0 IECEX IEC 60079-0

Important note

Product information

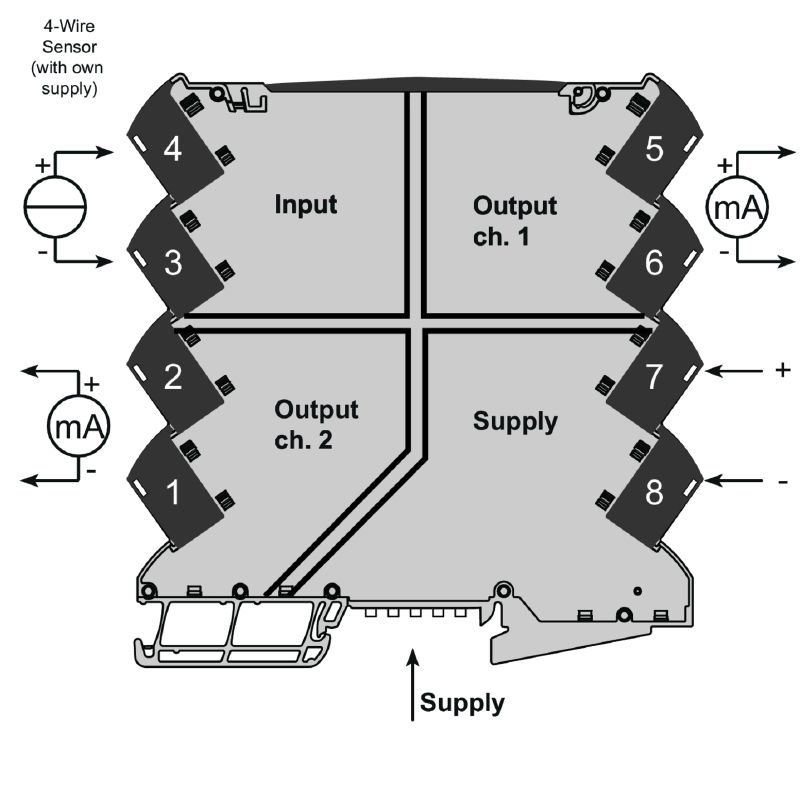

The non-adjustable DC isolating amplifier ACT20M-CI-CO-S isolates analogue standard current signals. An analogue input current signal is linearly converted to an analogue output current signal and is galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation) by means of direct wiring or the Weidmüller rail bus.

The non-adjustable DC isolation amplifier ACT20M CI-2CO-S offers the same functionality, but has 2 galvanically isolated outputs (4-way isolation).

Downloads

Approval/Certificate/Document of Conformity	[DNV-GL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_86299) [FM certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_102445) [IECEXx certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_102446) [ATEX certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_102447) [UL certification for canada](https://mdcop.weidmueller.com/mediadelivery/asset/900_321817) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35386)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_52202)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1175990000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1175990000)
User Documentation	[Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_35877)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002653
ETIM 7.0	EC002653
ETIM 8.0	EC002653
ETIM 9.0	EC002653
ECLASS 9.0	27-21-01-20
ECLASS 9.1	27-21-01-20
ECLASS 10.0	27-21-01-20
ECLASS 11.0	27-21-01-20
ECLASS 12.0	27-21-01-20
ECLASS 13.0	27-21-01-20
ECLASS 14.0	27-21-01-20

Tender specification sheets

Long specification

Standard signal splitter
1-channel signal splitter in 6.1 mm width with external power supply,
to transmit, isolate and split analogue DC current signals 0/4...20 mA

Add-on housing for TS35 rail mounting
Dimensions: L/W/H 114.3/ 6.1/ 112.5 mm
Screw connection / Nominal cross-section 2.5 mm²Protection degree: IP 20

Input                         0/4...20 mA
Output                                              2 x 0/4...20 mA
Load resistance             < 300 Ohm/ Ausgang
Transmission error             < 0,05 % v. E.
Limit frequency 100 Hz
Auxiliary power                                     24 VDC +/- 30 %
Power loss approx. 0.8 W
Ambient
temperature range -25 °C...+70 °C

Isolation                                 EN 61010-1, 3-way isolation up to 2.5 kV AC/DC of all circuits against each other
Test voltage                               2.5 kV input against output against auxiliary power
Rated
voltage                                          300 V AC/DC at overvoltage category II and pollution degree 2
Approvals cULus, FM Div2, ATEX Zone2, DNV, GL

Type ACT20M-CI-2CO-S

Short specification

Standard signal splitter
1-channel signal splitter in 6.1 mm width with external power supply,
to transmit, isolate and split analogue DC current signals 0/4 to 20 mA

Approvals

Approvals	![CCCEX](/picture/CCCEX.gif) ![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif) ![DETNORVER](/picture/DETNORVER.gif) ![FMEX](/picture/FMEX.gif) ![IECEXKEM](/picture/IECEXKEM.gif) ![KEMAATEX](/picture/KEMAATEX.gif) ![UKEX](/picture/UKEX.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E337701
