Ominaisuudet

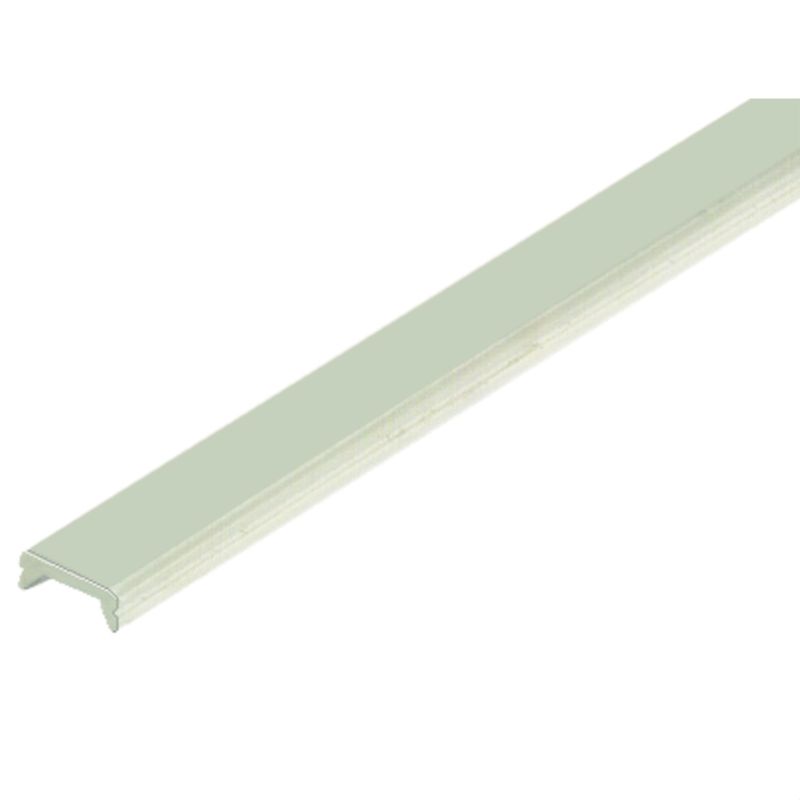

| Version | SAK Series, Cover profile, Transparent, 1000 mm |
| Order No. | 0485400000 |
| Type | ADP 3/HP3 1M |
| GTIN (EAN) | 4008190023928 |
| Qty. | 1 |
| Depth | 89 mm |
| Depth (inches) | 3,504 inch |
| Height | 34,5 mm |
| Height (inches) | 1,358 inch |
| Width | 1 000 mm |
| Width (inches) | 39,37 inch |
| Net weight | 75 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PVC |
| Colour | Transparent |
| UL 94 flammability rating | V-2 |
| Version | cover plate |
| Installation advice | Direct mounting |
| Snap-on | Yes |
| Installation advice | Direct mounting |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59164) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0485400000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0485400000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
