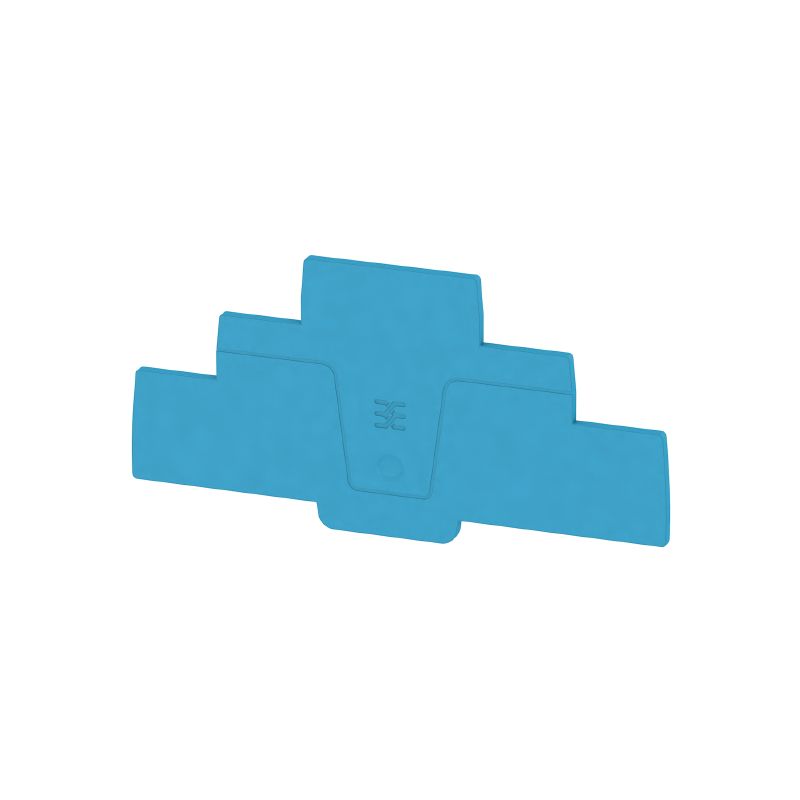

AEP 3T 2.5 BL — Product image

Lataa tietosivu Samankaltaiset tuotteet

AEP 3T 2.5 BL

A-series, End plate

Tuotteen tunnus 2428860000

Ominaisuudet

General ordering data

Version	A-series, End plate
Order No.	2428860000
Type	AEP 3T 2.5 BL
GTIN (EAN)	4050118438154
Qty.	20 items

Dimensions and weights

Depth	57,1 mm
Depth (inches)	2,248 inch
Height	114,1 mm
Height (inches)	4,492 inch
Width	2,1 mm
Width (inches)	0,083 inch
Net weight	4,963 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	−60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material	Wemid
Colour	blue
UL 94 flammability rating	V-0

System specifications

Version

End plate

Additional technical data

Snap-on	Yes
With snap-in pegs	Yes

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66044)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2428860000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2428860000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2428860000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000886
ETIM 7.0	EC000886
ETIM 8.0	EC000886
ETIM 9.0	EC000886
ECLASS 9.1	27-14-11-33
ECLASS 10.0	27-14-11-33
ECLASS 11.0	27-14-11-33
ECLASS 12.0	27-14-11-33
ECLASS 13.0	27-25-03-01
ECLASS 14.0	27-25-03-01

ROHS

Conform
