Ominaisuudet

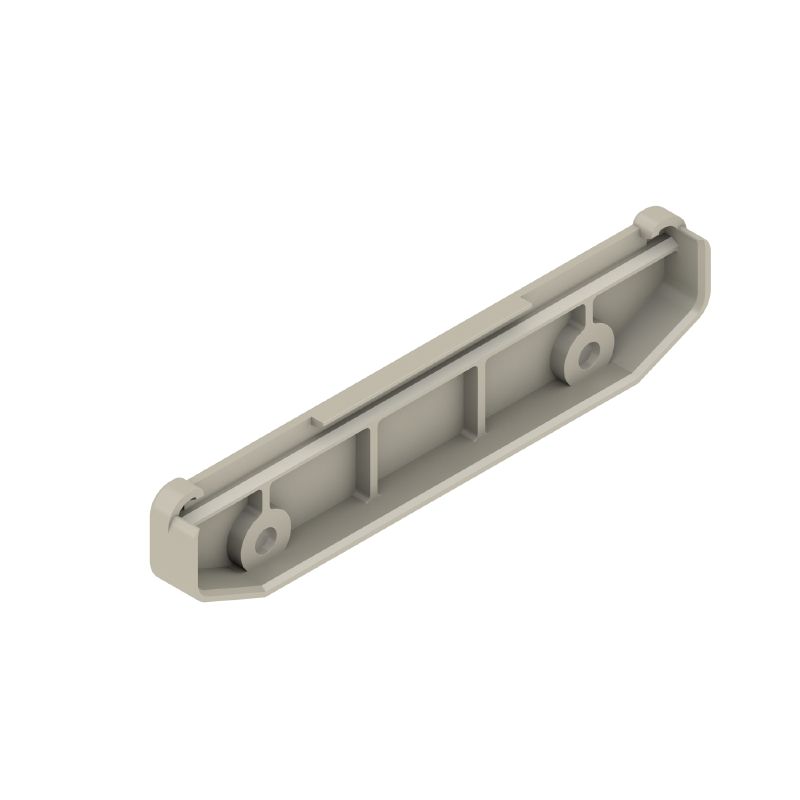

| Version | End plate, RS 100 Pebble grey, End plate direct mounting both sides, Width: 22 mm |
| Order No. | 8817790000 |
| Type | AP 100 D GR |
| GTIN (EAN) | 4032248517756 |
| Qty. | 20 items |
| Depth | 21,9 mm |
| Depth (inches) | 0,862 inch |
| Height | 108,2 mm |
| Height (inches) | 4,26 inch |
| Width | 22 mm |
| Width (inches) | 0,866 inch |
| Net weight | 7,5 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Comparative Tracking Index (CTI) | 600 ≤ CTI |
| Insulating material | PA 66 |
| Insulating material group | I |
| Material | PA 66 |
| Surface finish | untreated |
| UL 94 flammability rating | V-2 |
| Colour | Pebble grey |
| Colour chart (similar) | RAL 7032 |
| Encapsulation option | No |
| Protection degree | IP20 in installed state |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212835) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8817790000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC002779 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-02 |
| ECLASS 14.0 | 27-19-06-02 |
| ROHS | Conform |
