Ominaisuudet

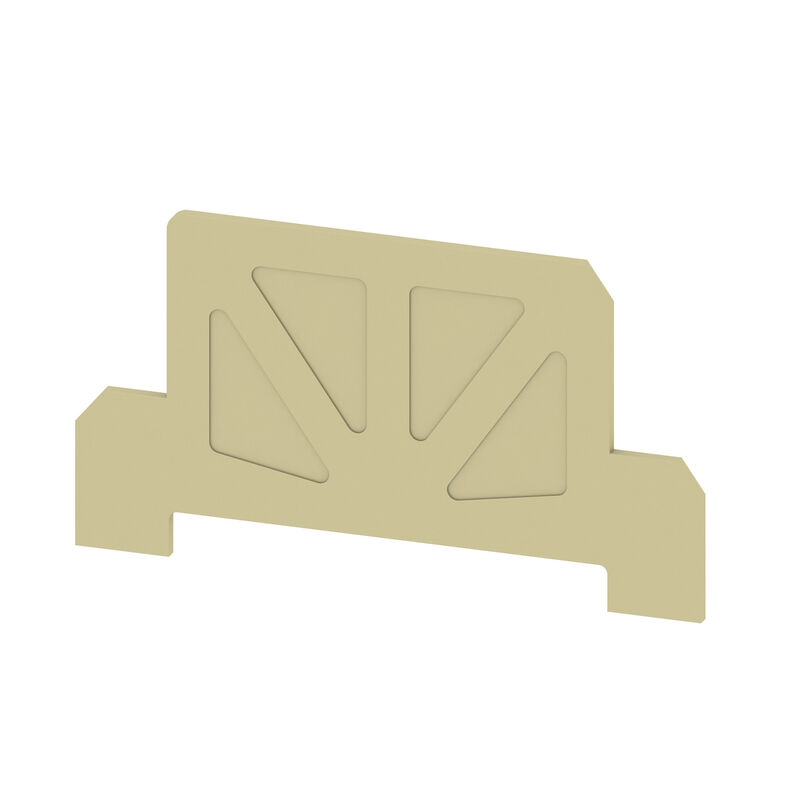

| Version | End plate (terminals), beige, Height: 73.5 mm, Width: 1.5 mm, V-2, Polyamide 66 |
| Order No. | 9503330000 |
| Type | AP KDKS1 |
| GTIN (EAN) | 4008190124212 |
| Qty. | 20 items |
| Depth | 40,75 mm |
| Depth (inches) | 1,604 inch |
| Height | 73,5 mm |
| Height (inches) | 2,894 inch |
| Width | 1,5 mm |
| Width (inches) | 0,059 inch |
| Net weight | 3,6 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polyamide 66 |
| Colour | beige |
| UL 94 flammability rating | V-2 |
| Version | End plate |
| Installation advice | Direct mounting |
| Snap-on | Yes |
| Type of mounting | Plugged |
| Installation advice | Direct mounting |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66837) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9503330000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9503330000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
