Ominaisuudet
| Version | Accessories, Set of fixings, Steel |
| Order No. | 1760720000 |

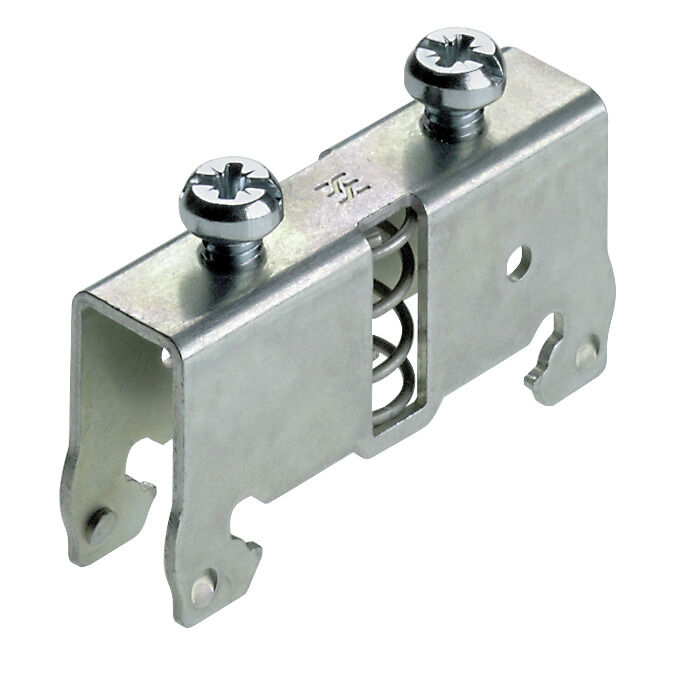

| Type | BS 35/WSH 2 |
| GTIN (EAN) | 4008190068714 |
| Qty. | 10 items |
| Depth | 37 mm |
| Depth (inches) | 1,457 inch |
| Height | 52 mm |
| Height (inches) | 2,047 inch |
| Width | 13 mm |
| Width (inches) | 0,512 inch |
| Diameter | 3 mm |
| Net weight | 27,11 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Steel |
| Colour | grey |
| Version | Mounting foot |
| Rail | TS 35 |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Interlock | for screw fixing |
| Type of fixing | when screwed in |
| Diameter | 3 mm |
| TS 35 offset | 26 mm |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63457) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1760720000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1760720000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
