Ominaisuudet

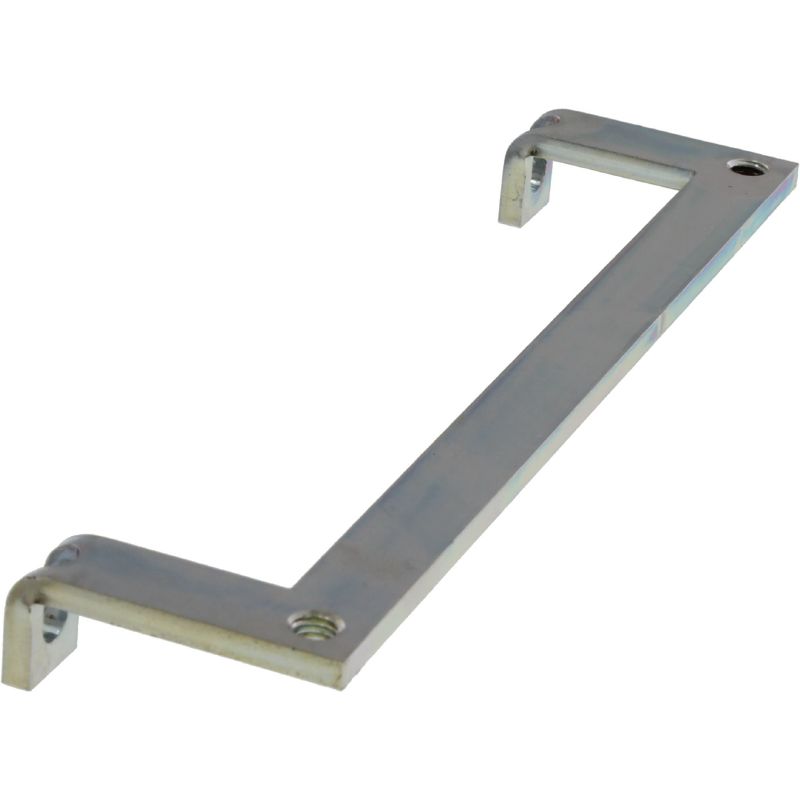

| Version | Shield connection rail, Cabtite (cable entry system), Steel, galvanized, silver, Height: 35.23 mm, Width: 140 mm, Depth: 16 mm |
| Order No. | 2583890000 |
| Type | CABTITE CR 24/10 EMV |
| GTIN (EAN) | 4050118647068 |
| Qty. | 10 items |
| Depth | 16 mm |
| Depth (inches) | 0,63 inch |
| Height | 35,23 mm |
| Height (inches) | 1,387 inch |
| Width | 140 mm |
| Width (inches) | 5,512 inch |
| Diameter | 5,3 mm |
| Mounting dimension - height | 5,91 mm |
| Mounting dimension - width | 5,3 mm |
| Net weight | 46,96 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Halogen | No |
| Material | Steel, galvanized |
| Silicone | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205520) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2583890000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2583890000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002624 |
| ETIM 7.0 | EC002624 |
| ETIM 8.0 | EC002624 |
| ETIM 9.0 | EC002624 |
| ECLASS 9.0 | 27-18-28-15 |
| ECLASS 9.1 | 27-18-92-65 |
| ECLASS 10.0 | 27-18-28-15 |
| ECLASS 11.0 | 27-18-28-15 |
| ECLASS 12.0 | 27-18-28-15 |
| ECLASS 13.0 | 27-18-28-15 |
| ECLASS 14.0 | 27-18-28-15 |
| ROHS | Conform |
On lisävaruste
-
Tuotteen tunnus:2891560000VPE:1 items
Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 64 mm, Width: 153 mm, Depth: 24.2 mm, -40 °C…120 °C, IP66
-
Tuotteen tunnus:2583720000VPE:1 items
Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 70 mm, Width: 153 mm, Depth: 19.6 mm, -40 °C…120 °C, IP66
-
Tuotteen tunnus:2583800000VPE:1 items
Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 70 mm, Width: 153 mm, Depth: 19.6 mm, -40 °C…120 °C, IP66
-
Tuotteen tunnus:2891540000VPE:1 items
Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 70 mm, Width: 81 mm, Depth: 19.6 mm, -40 °C…120 °C, IP66
Yksittäinen osa tuotteelle
-
Tuotteen tunnus:2583800000VPE:1 items
Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 70 mm, Width: 153 mm, Depth: 19.6 mm, -40 °C…120 °C, IP66
-
Tuotteen tunnus:2891540000VPE:1 items
Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 70 mm, Width: 81 mm, Depth: 19.6 mm, -40 °C…120 °C, IP66
-
Tuotteen tunnus:2891560000VPE:1 items
Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 64 mm, Width: 153 mm, Depth: 24.2 mm, -40 °C…120 °C, IP66
-
Tuotteen tunnus:2583720000VPE:1 items
Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 70 mm, Width: 153 mm, Depth: 19.6 mm, -40 °C…120 °C, IP66
