CC-M 18/52 2X3 ST

CC-M 18/52 2X3 ST

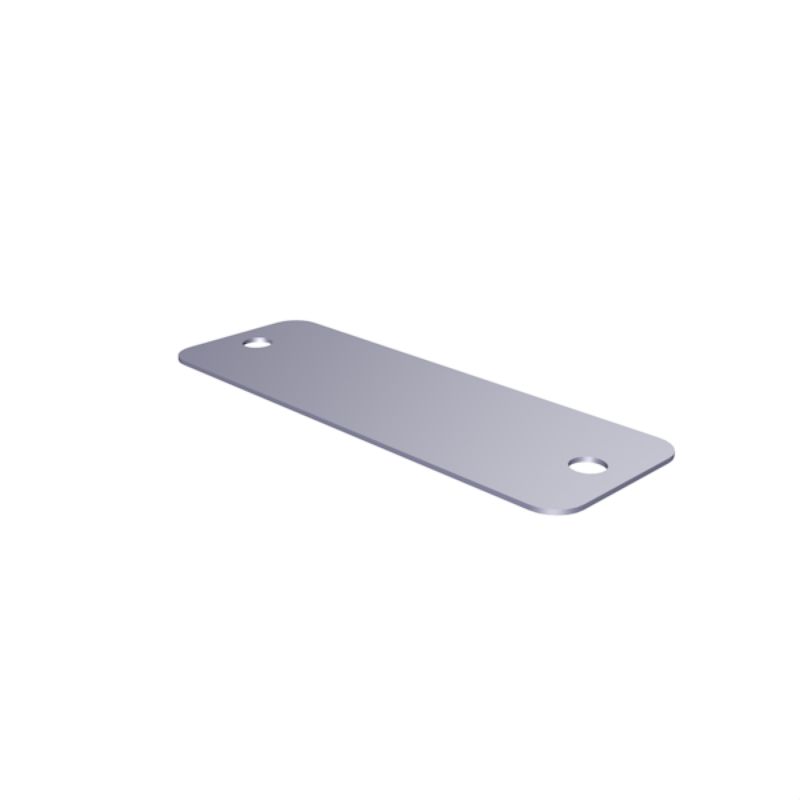

MetalliCard, Device markers, 18 x 52 mm, silver

Tuotteen tunnus 1505350000
Lataa tietosivu Tekninen tuki Tuotelataukset
Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
MetalliCard, Device markers, 18 x 52 mm, silver
Order No.
1505350000
Type
CC-M 18/52 2X3 ST
GTIN (EAN)
4050118313932
Qty.
200 items

Dimensions and weights

Depth
0,5 mm
Depth (inches)
0,02 inch
Height
18 mm
Height (inches)
0,709 inch
Width
52 mm
Width (inches)
2,047 inch
Net weight
3,3 g

Temperatures

Operating temperature range
-55...130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Campo delle temperature di impiego, min.
−55 °C
Colori
silver
Materiale di base
Micro-etched stainless steel 1.4301 (ST)
Number of markers per packaging unit
  • Form of supply:
    MetalliCard
Operating temperature range
-55...130 °C
Printed characters
without
Size of labelling field
16 x 50 mm
Szélesség
52 mm
Version
pluggable
with 3.5 mm mounting hole
Zalecane branże
Energy
Process
Üzemi hőmérsékleti tartomány, max.
130 °C
Количество маркировочных элементов на комбинацию
1 MetalliCard = Device markers

Device markers

Drill-hole diameter
3,3 mm

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
