Ominaisuudet

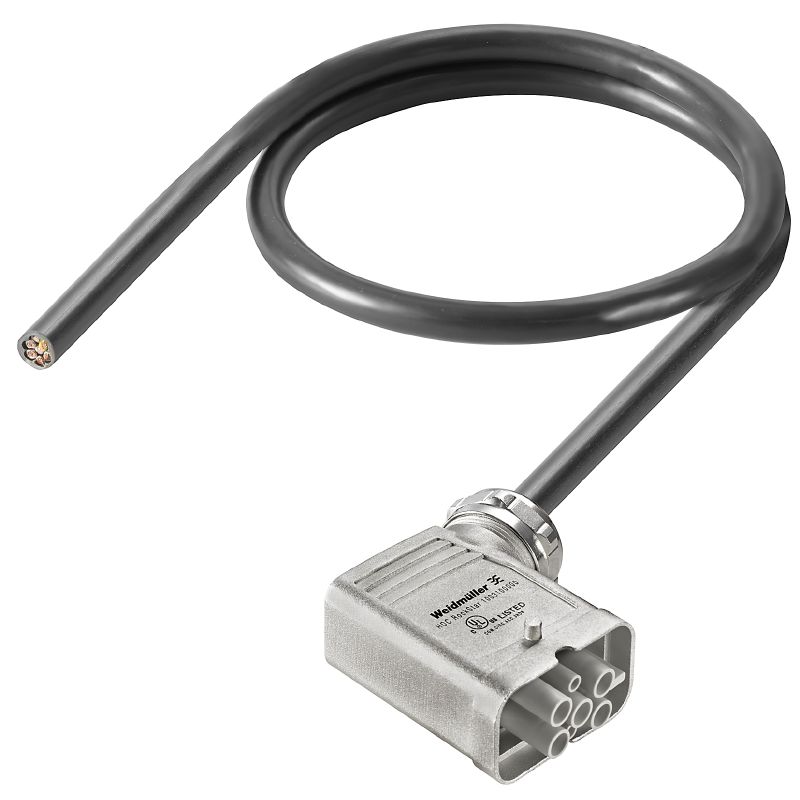

| Version | Heavy duty connector assemblies, Socket connector, Helukabel JZ-500-C black 7G2.5 or similar, Shielded: Yes, Number of poles: 6 |
| Order No. | 2712400100 |
| Type | CH-HNAB-XXXX-06-0100-AB |
| GTIN (EAN) | 4050118779530 |
| Qty. | 1 items |
| Net weight | 621,466 g |
| Limit temperature | -40 °C ... 80 °C |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 81ca46c4-2930-4739-aa54-e07d33c98f2c |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 2,5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Number of poles | 6 |
| Outside diameter | 12.1 mm |
| Sheath material | PVC |
| Sheathing colour | black |
| Shielded | Yes |
| Temperature range, moving | -10...80 °C |
| Temperature range, stationary | -40...80 °C |
| Protection degree | IP65 |
| Rated voltage | 500 V |
| Version | Socket connector |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Protection degree | IP65 |
| Rated voltage | 500 V |
| Connector |
|
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 2,5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Helukabel JZ-500-C black 7G2.5 or similar |
| Outside diameter | 12.1 mm |
| Sheath material | PVC |
| Sheathing colour | black |
| Shielded | Yes |
| Temperature range, moving | -10...80 °C |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | −10 °C |
| Temperature range, stationary | -40...80 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | −40 °C |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001576 |
| ETIM 7.0 | EC001576 |
| ETIM 8.0 | EC001576 |
| ETIM 9.0 | EC001576 |
| ECLASS 9.0 | 27-06-04-02 |
| ECLASS 9.1 | 27-06-91-90 |
| ECLASS 10.0 | 27-06-04-02 |
| ECLASS 11.0 | 27-06-04-02 |
| ECLASS 12.0 | 27-06-04-02 |
| ECLASS 13.0 | 27-06-04-02 |
| ROHS | Conform |
Lisävarusteet
-
Tuotteen tunnus:1003050000VPE:1 items
HDC enclosures, Size: HQ, Protection degree: IP65 (in plugged condition), Bulkhead housing, Side-locking clamp on lower side, Standard
-
Tuotteen tunnus:1251680000VPE:1 items
HDC enclosures, Size: HQ, Protection degree: IP65 (in plugged condition), Bulkhead housing, Side-locking clamp on lower side, Standard
-
Tuotteen tunnus:1003060000VPE:1 items
HDC enclosures, Size: HQ, Protection degree: IP65 (in plugged condition), Bulkhead housing, Side-locking clamp on lower side, Standard
-
Tuotteen tunnus:1003110000VPE:1 items
HDC enclosures, Size: HQ, Protection degree: IP65 (in plugged condition), Base housing, Side-locking clamp on lower side, Standard, Size of cable entries: PG 16
-
Tuotteen tunnus:1003040000VPE:1 items
HDC enclosures, Size: HQ, Protection degree: IP65 (in plugged condition), Bulkhead housing, Side-locking clamp on lower side, Standard
-
Tuotteen tunnus:1354950000VPE:1 items
HDC enclosures, Size: HQ, Protection degree: IP65 (in plugged condition), Bulkhead housing, Side-locking clamp on lower side, Standard
-
Tuotteen tunnus:1003170000VPE:1 items
HDC insert, Male, 690 V, 40 A, Number of poles: 6, Crimp connection, Size: HQ
-
Tuotteen tunnus:1003120000VPE:1 items
HDC enclosures, Size: HQ, Protection degree: IP65 (in plugged condition), Coupling housing, Side-locking clamp on lower side, Standard, Size of cable entries: PG 16
