Ominaisuudet

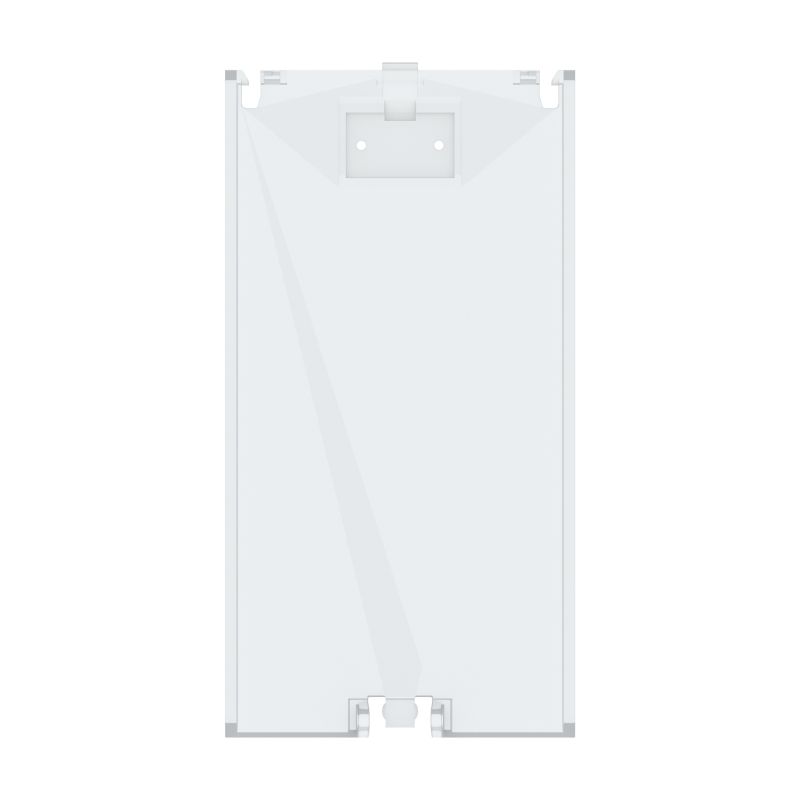

| Version | Modular housing, OMNIMATE Housing - series CH20M Transparent, Flip cover, Width: 45 mm |
| Order No. | 1104440000 |
| Type | CH20M45 C TP 8089 |
| GTIN (EAN) | 4032248878895 |
| Qty. | 30 items |
| Depth | 6 mm |
| Depth (inches) | 0,236 inch |
| Height | 85,8 mm |
| Height (inches) | 3,378 inch |
| Width | 45 mm |
| Width (inches) | 1,772 inch |
| Net weight | 7,3 g |
| Operating temperature range | -40 °C...120 °C |
| Humidity | 5 - 93% rel. humidity, Tu = 40°C, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Comparative Tracking Index (CTI) | 175 ≤ CTI <400 |
| Insulating material | PC |
| Insulating material group | IIIa |
| Material | Plastic |
| Surface finish | untreated |
| UL 94 flammability rating | V-2 |
| Colour | Transparent |
| Colour chart (similar) | - |
| Encapsulation option | No |
| Protection degree | IP20 in installed state |
| Marker integrateable | Yes |
| Safety lock | sealable |
| Alternitive colours | More on request |
| Customer specific cutouts possible | No |
| Customer specific labelling possible | Yes |
| Customer specific order process | See guideline under downloads |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_53723) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1104440000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1104440000) |
| User Documentation |
[Guideline customerspecific housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_177964)
[Guideline kundenspezifische Gehäuse](https://mdcop.weidmueller.com/mediadelivery/asset/900_177965) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-03 |
| ECLASS 14.0 | 27-19-06-03 |
| ROHS | Conform |
