Ominaisuudet
| Version | CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes |
| Order No. | 3053020000 |
| Type | CRM40048T |
| GTIN (EAN) | 4099987022842 |
| Qty. | 10 items |
| Depth | 35,5 mm |
| Depth (inches) | 1,398 inch |
| Height | 27,4 mm |
| Height (inches) | 1,079 inch |
| Width | 21 mm |
| Width (inches) | 0,827 inch |
| Net weight | 35 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...70 °C |
| Humidity | 25 °C / 95 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E223474 |

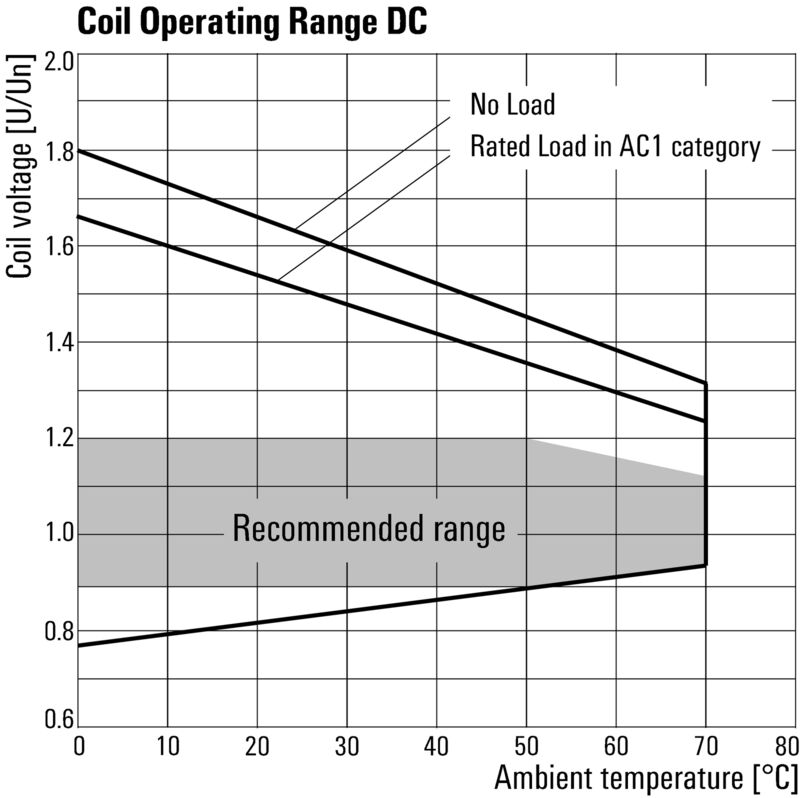

| Rated control voltage | 48 V DC |
| Rated current DC | 18.5 mA |
| Power rating | 0.9 W |
| Coil resistance | 2600 Ω ± 10 % |
| Status indicator | No |
| Rated switching voltage | 250 V AC |
| Continuous current | 7 A |
| Max. switching frequency at rated load | 0,1 Hz |
| Max. switching voltage, AC | 250 V |
| Min. switching power |
10 mA @ 12 V
100 mA @ 5 V |
| AC switching capacity (resistive), max. | 1500 VA |
| DC switching capacity (resistive), max. | 168 W @ 24 V |
| Switch-on delay | ≤ 20 ms |
| Switch-off delay | ≤ 9 ms |
| Contact type | 4 CO contact (AgNi) |
| Mechanical service life | 2 x 107 switching cycles |
| Operating altitude |
≤ 2000 m
above sea level |
| Test button available | Yes |
| Version of test button |
Lockable test button
Momentary test button |
| Mechanical switch position indicator | Yes |
| Colour | Transparent |
| UL 94 flammability rating | V-2 |
| Rated voltage | 250 V |
| Pollution severity | 2 |
| Surge voltage category | II |
| Dielectric strength for control side - load side | 2.5 kVeff / 1 Min. |
| Dielectric strength of neighbouring contacts | 2 kVeff / 1 min |
| Dielectric strength of open contact | 1.5 kVeff /1 min. |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Certificate No. (CSA) | 607178-80219312 |
| Certificate No. (cURus) | E223474 |
| Wire connection method | Plug-in connection |
| Pitch in mm (P) | 5 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_318589) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001437 |
| ETIM 7.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-16-01 |
| ECLASS 9.1 | 27-37-16-01 |
| ECLASS 10.0 | 27-37-16-01 |
| ECLASS 11.0 | 27-37-16-01 |
| ECLASS 12.0 | 27-37-16-01 |
| ECLASS 13.0 | 27-37-16-01 |
| ECLASS 14.0 | 27-37-16-01 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E223474 |
