CTX CM 3.6 ZERT
CTX CM 3.6 ZERT

CTX CM 3.6 ZERT

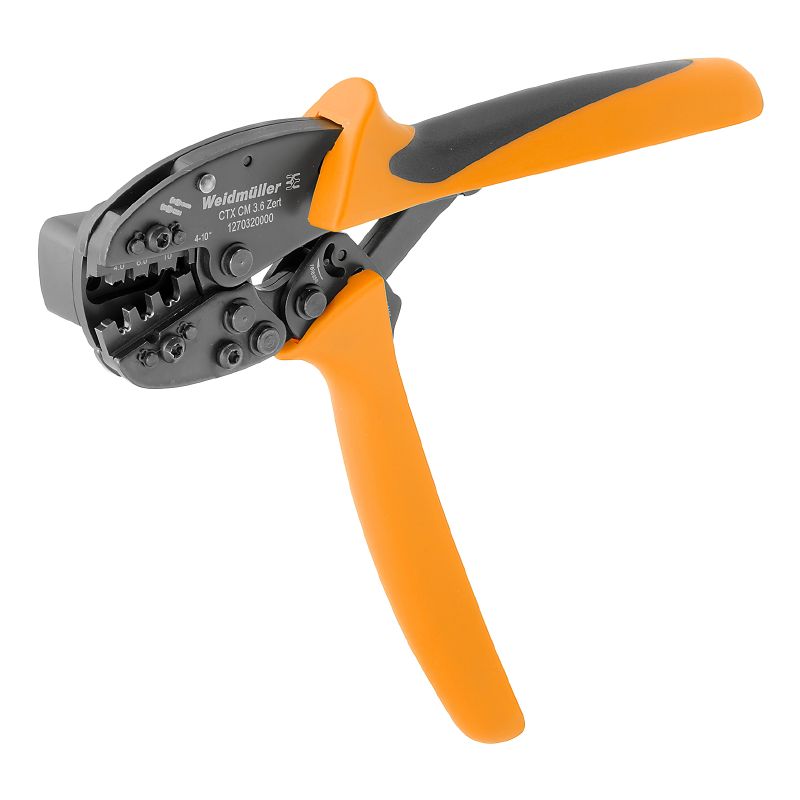

Pressing tool, Crimping tool for contacts, 4mm², 10mm², W crimp

Tuotteen tunnus 1270320000
Lataa tietosivu Product Downloads
Lisävarusteet 1 Samankaltaiset tuotteet 2
General ordering data Dimensions and weights Environmental Product Compliance Technical data Description of contact tool data crimping Classifications

General ordering data

버전
Pressing tool, Crimping tool for contacts, 4mm², 10mm², W crimp
Rendelési szám
1270320000
Type
CTX CM 3.6 ZERT
GTIN (EAN)
4050118058611
Qty.
1 items

Dimensions and weights

Width
250 mm
Width (inches)
9,842 inch
Net weight
730 g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
2159813b-98fd-4068-b62a-bc89a046c012

Technical data

Descripción del artículo
Crimping tool for HD and ConCept M3 contacts and similar types, 4-10mm²
Version
Mechanical, without interchangeable inserts

Description of contact

Conductor cross-section, max. AWG
AWG 8
Conductor cross-section, min. AWG
AWG 12
Crimping range, max.
10 mm²
Crimping range, min.
4 mm²
Type of contact
Turned contacts

tool data crimping

Crimping type/profile
W crimp
Wire end ferrules cross-section, max.
10 mm²

Classifications

ETIM 8.0
EC000168
ETIM 9.0
EC000168
ETIM 10.0
EC000168
ECLASS 14.0
21-04-38-11
ECLASS 15.0
21-04-38-11
