Ominaisuudet
| Version | Pressing tool, Crimping tool for contacts, 4mm², 10mm², W crimp |
| Order No. | 9018480000 |

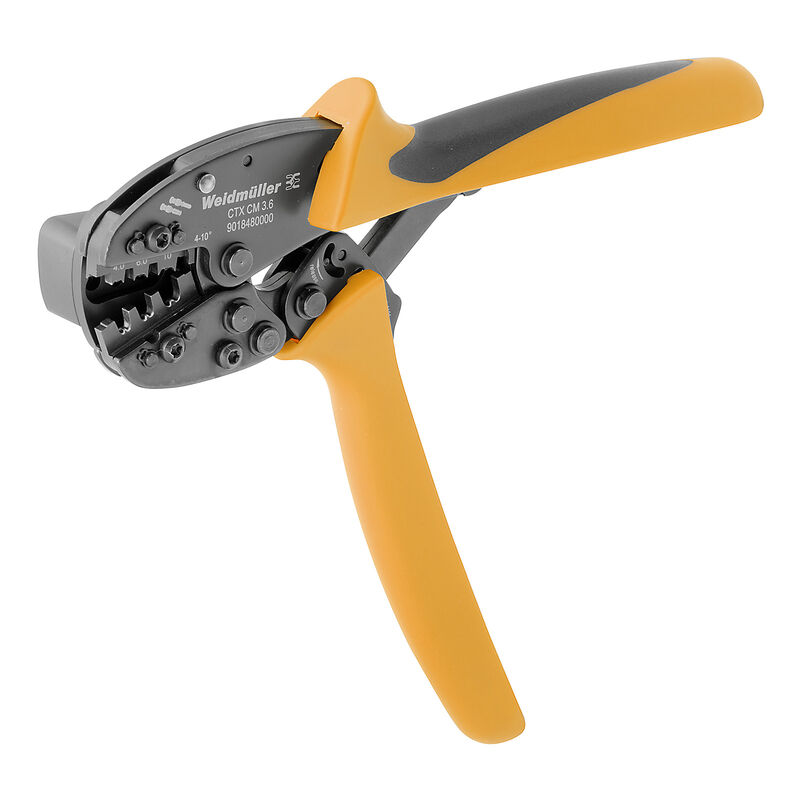

| Type | CTX CM 3.6 |
| GTIN (EAN) | 4008190884581 |
| Qty. | 1 items |
| Width | 250 mm |
| Width (inches) | 9,842 inch |
| Net weight | 706,78 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Description of article | Crimping tool for HD and ConCept M3 contacts and similar types, 4-10mm² |
| Version | Mechanical, without interchangeable inserts |
| Conductor cross-section, max. AWG | AWG 8 |
| Conductor cross-section, min. AWG | AWG 12 |
| Crimping range, max. | 10 mm² |
| Crimping range, min. | 4 mm² |
| Type of contact | Turned contacts |
| Crimping type/profile | W crimp |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101167) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
Lisävarusteet
ToolsCrimping tools...for turned/stamped contacts... for milled contactsAccessories / replacement parts
On lisävaruste
-
Tuotteen tunnus:1682310000VPE:100 items

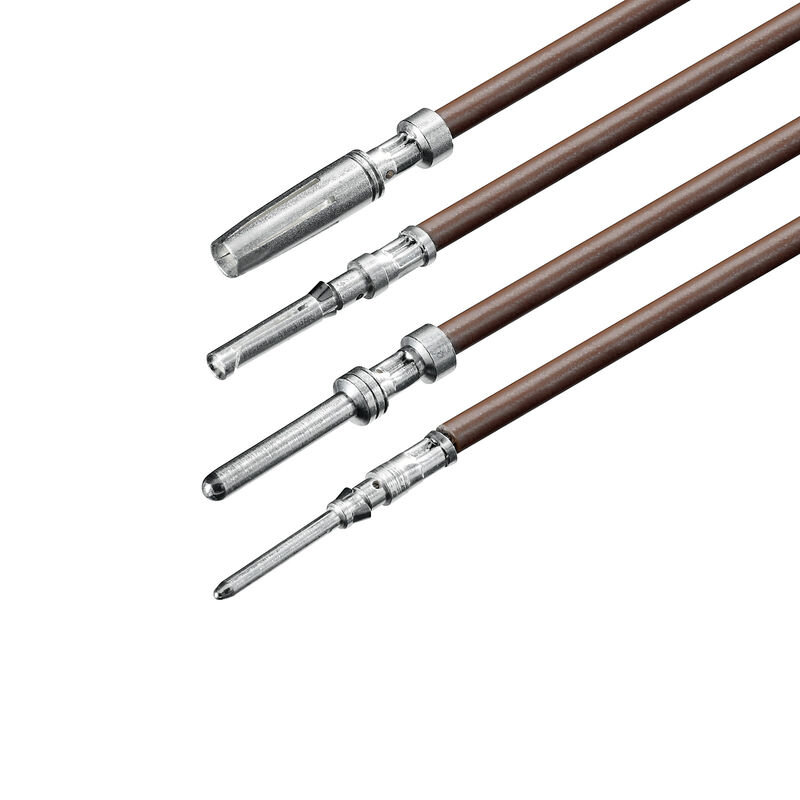

Heavy-duty connectors, Crimp contact, CM 3, Female, Conductor cross-section, max.: 10, turned, Copper alloy
-
Tuotteen tunnus:1682280000VPE:100 items
Heavy-duty connectors, Crimp contact, CM 3, Pin, Conductor cross-section, max.: 6, turned, Copper alloy
-
Tuotteen tunnus:1682260000VPE:100 items
Heavy-duty connectors, Crimp contact, CM 3, Pin, Conductor cross-section, max.: 4, turned, Copper alloy
-
Tuotteen tunnus:1682270000VPE:100 items
Heavy-duty connectors, Crimp contact, CM 3, Female, Conductor cross-section, max.: 4, turned, Copper alloy
-
Tuotteen tunnus:1682300000VPE:100 items
Heavy-duty connectors, Crimp contact, CM 3, Pin, Conductor cross-section, max.: 10, turned, Copper alloy
-
Tuotteen tunnus:1682290000VPE:100 items
Heavy-duty connectors, Crimp contact, CM 3, Female, Conductor cross-section, max.: 6, turned, Copper alloy
ConnectorsHeavy duty connectorsCrimp contactsCrimp contacts CM3
