Ominaisuudet

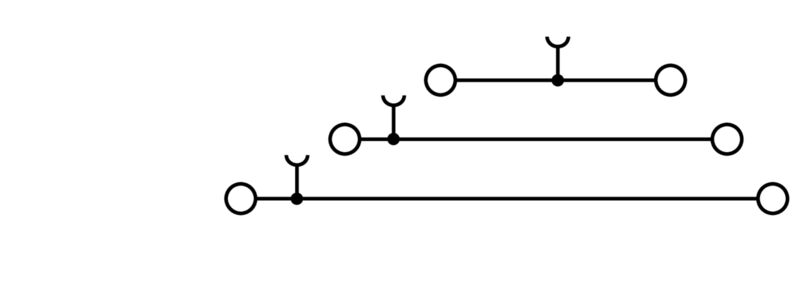

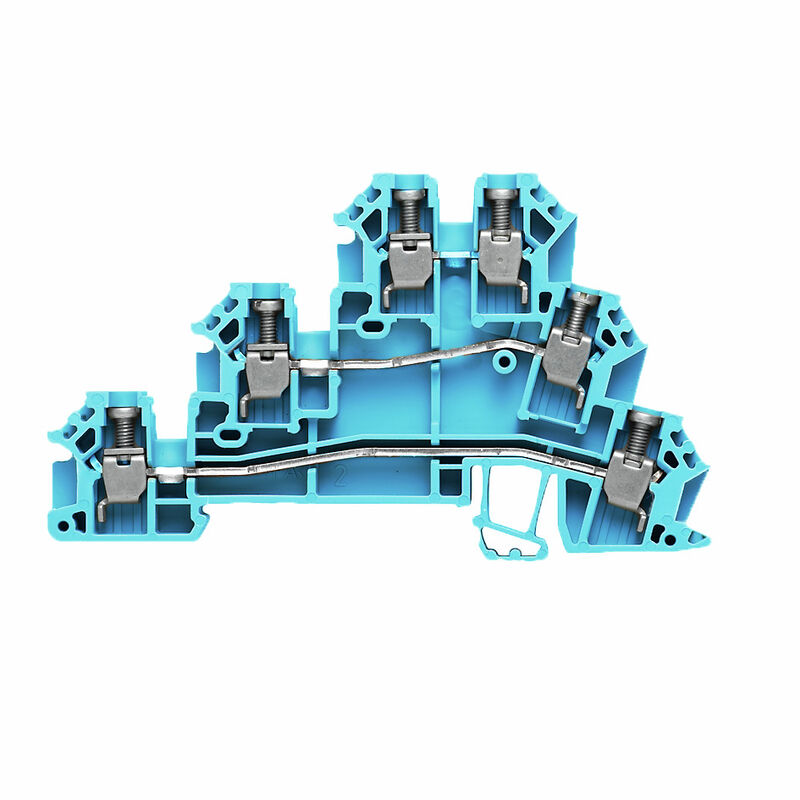

| Version | Initiator/actuator terminal, Screw connection, blue, 2.5 mm², 24 A, 250 V, Number of connections: 6, Number of levels: 3, TS 35, V-0, Wemid |
| Order No. | 6269250000 |
| Type | DLD 2.5 BL |
| GTIN (EAN) | 4008190529505 |
| Qty. | 50 items |
| Depth | 48,5 mm |
| Depth (inches) | 1,909 inch |
| Depth including DIN rail | 49 mm |
| Height | 82 mm |
| Height (inches) | 3,228 inch |
| Width | 6,2 mm |
| Width (inches) | 0,244 inch |
| Net weight | 16,86 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Version |
Screw connection
One end without connector |
| End cover plate required | Yes |
| Number of potentials | 3 |
| Number of levels | 3 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | Yes |
| PE function | No |
| PEN function | No |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 1 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0,5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1 mm² |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Blade size | 0.6 x 3.5 mm |
| Clampable conductor |
|
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0,13 mm² |
| Clamping screw | M 2.5 |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 6 |
| Stripping length | 7 mm |
| Tightening torque, max. | 0,6 Nm |
| Tightening torque, min. | 0,4 Nm |
| Torque level with DMS electric screwdriver | 1 |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 12400-134 |
| Current size C (CSA) | 10 A |
| Voltage size C (CSA) | 300 V |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| TS 35 offset | 46 mm |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Rated cross-section | 2,5 mm² |
| Rated voltage | 250 V |
| Rated DC voltage | 250 V |
| Rated current | 24 A |
| Current at maximum wires | 24 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 3,99 mΩ |
| Rated impulse withstand voltage | 4 kV |
| Power loss in accordance with IEC 60947-7-x | 0,77 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Current size D (UR) | 10 A |
| Voltage size D (UR) | 300 V |
| Approval/Certificate/Document of Conformity |
[DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320351)
[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36671) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66424) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.6269250000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=6269250000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=6269250000&norm=0) |
| User Documentation |
[Usage of terminals in EXi atmospheres](https://mdcop.weidmueller.com/mediadelivery/asset/900_73881)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000900 |
| ETIM 7.0 | EC000900 |
| ETIM 8.0 | EC000900 |
| ETIM 9.0 | EC000900 |
| ECLASS 9.0 | 27-14-11-28 |
| ECLASS 9.1 | 27-14-11-28 |
| ECLASS 10.0 | 27-14-11-28 |
| ECLASS 11.0 | 27-14-11-28 |
| ECLASS 12.0 | 27-14-11-28 |
| ECLASS 13.0 | 27-25-01-12 |
| ECLASS 14.0 | 27-25-01-12 |
| Approvals |      |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
