Ominaisuudet

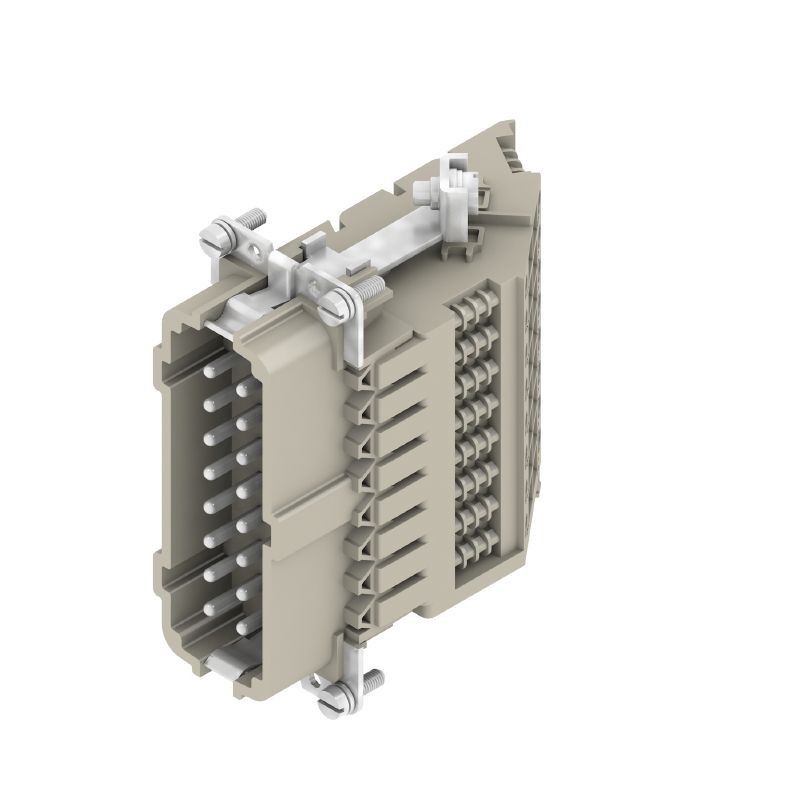

| Version | HDC insert, Pin, 500 V, 16 A, Number of poles: 16, Screw connection, Size: 6 |
| Order No. | 1848700000 |
| Type | DSTV HE SL16 S |
| GTIN (EAN) | 4032248371976 |
| Qty. | 10 items |
| Net weight | 184,8 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d0694b55-f1aa-4d24-a200-c532c6ffc384 |
| BG | 6 |
| Colour | beige |
| Insulating material | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Insulating material group | IIIa |
| Insulation strength | 1010 Ω |
| Low smoke acc. DIN EN 45545-2 | Yes |
| Material | Copper alloy |
| Max. torque for main contact | 0,7 Nm |
| Min. torque for main contact | 0,5 Nm |
| Number of poles | 16 |
| Plugging cycles, silver | ≥ 200 |
| Pollution severity | 3 |
| Rated current (DIN EN 61984) | 16 A |
| Rated impulse voltage (DIN EN 61984) | 6 kV |
| Rated voltage (DIN EN 61984) | 500 V |
| Rated voltage according to UL/CSA | 600 V AC/DC |
| Series | DSTV-HE |
| Size | 6 |
| Surface finish | Silver passivated |
| Type | Pin |
| Type of connection | Screw connection |
| UL 94 flammability rating | V-0 |
| Volume resistance | ≤3 mΩ |
| Blade size, crosshead | size PZ1 |
| Blade size, slotted (PE connection) | SD 0.8 x 4.0 |
| Connection type PE | Screw connection |
| Fixing screw | M 4 |
| Rated cross-section | 4 mm² |
| Stripping length PE connection | 10 mm |
| Tightening torque, max. PE connection | 1,6 Nm |
| Tightening torque, min. PE connection | 1,2 Nm |
| Wire cross section, AWG (PE), max. | AWG 12 |
| Wire cross section, AWG (PE), min. | AWG 20 |
| BG | 6 |
| Blade size | size PZ0 |
| Blade size, slotted (screw connection) | SD 0.6 x 3.5 |
| Clamping screw | M 3 |
| Conductor cross-section, max. | 4 mm² |
| Conductor cross-section, min. | 0,5 mm² |
| Material | Copper alloy |
| Max. torque for main contact | 0,7 Nm |
| Min. torque for main contact | 0,5 Nm |
| Size | 6 |
| Stripping length, rated connection | 12 mm |
| Surface finish | Silver passivated |
| Type of connection | Screw connection |
| Volume resistance | ≤3 mΩ |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire cross-section, solid, max. | 4 mm² |
| Wire cross-section, solid, min. | 0,5 mm² |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_166267) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1848700000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002311 |
| ETIM 7.0 | EC002311 |
| ETIM 8.0 | EC002311 |
| ETIM 9.0 | EC002311 |
| ECLASS 9.0 | 27-44-02-03 |
| ECLASS 9.1 | 27-44-02-03 |
| ECLASS 10.0 | 27-44-02-03 |
| ECLASS 11.0 | 27-44-02-03 |
| ECLASS 12.0 | 27-44-02-03 |
| ECLASS 13.0 | 27-44-02-03 |
| ECLASS 14.0 | 27-44-02-03 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E92202 |
