Ominaisuudet
| Version | Power measurement/display for 1-phase mains, use of CT, pulse output,, Modbus RTU |
| Order No. | 7760051002 |

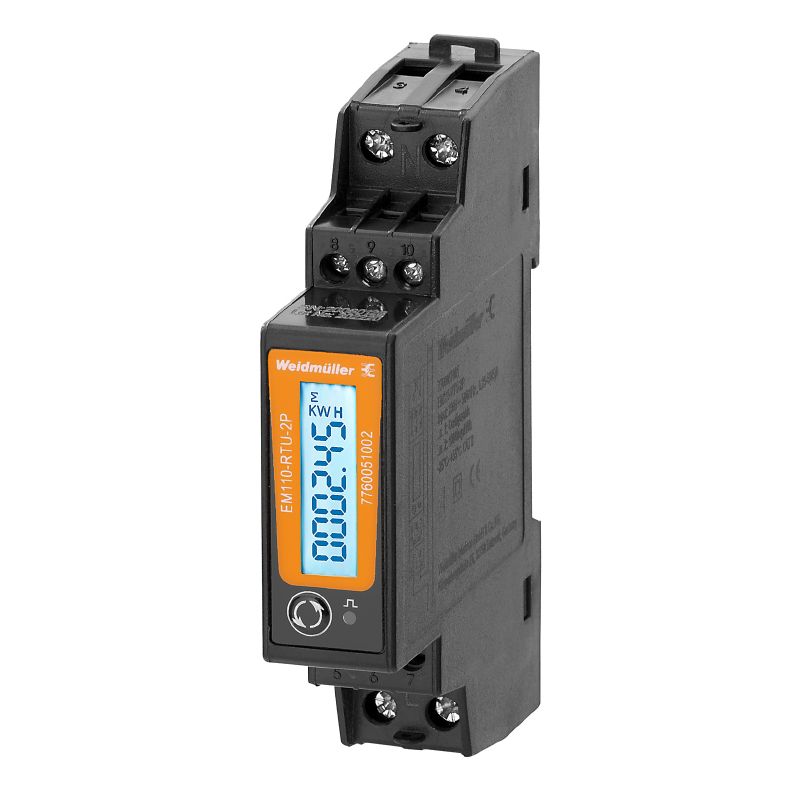

| Type | EM110-RTU-2P |
| GTIN (EAN) | 6944169818189 |
| Qty. | 1 items |
| Depth | 62 mm |
| Depth (inches) | 2,441 inch |
| Height | 90 mm |
| Height (inches) | 3,543 inch |
| Width | 17,5 mm |
| Width (inches) | 0,689 inch |
| Net weight | 78 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -25 °C...55 °C |
| Humidity | 0...95 % (no condensation) |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| AC input cable connection | Screw connection |
| Current-measuring channels | 1 |
| Housing main material | Plastic |
| Max. current | 5000 A |
| Measuring accuracy for current | 0,5 % |
| Rated current | via current transformer 1 A/5 A |
| Four-wire system | No |
| Frequency range, max. | 60 Hz |
| Frequency range, min. | 50 Hz |
| Low voltage network | 1 phase 2 wire (L + N) |
| Measurement range, voltage L-N, AC | 176…276 V |
| Measuring accuracy for voltage | 0,5 % |
| Three-wire system | No |
| Voltage type | AC |
| Addressing | 1 - 247 |
| Baud rate | ≤ 9600 Bd |
| Communication | Bi-directional |
| Parity |
none
even odd |
| Stop bits |
1
2 |
| Interface | RS485 |
| Protocol | Modbus RTU |
| Input type |
1 phase AC (L1, N)
Secondary side of a current transformer 0-1 A or 0-5 A |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of pulse outputs | 2 |
| Update interval register | 100 ms |
| Software | EM configuration tools |
| Display | LCD |
| Display monitoring (monitor) | LCD |
| Display value |
Voltage
current measured value Apparent power Reactive power Power factor Frequency Import / export active power demand Total import / export active energy Total import / export reactive energy Total system power demand |
| Max. current | 5000 A |
| Measurement accuracy |
Class 1 (IEC 62053-21)
Class B (EN 50470-3) 0.5% in relation to final value (U / I) |
| Pollution severity | 2 |
| Power factor input | 1 % |
| Protection degree |
Front panel: IP51
IP20 |
| Rated current | via current transformer 1 A/5 A |
| Type of mounting | DIN rail |
| Version |
Power measurement/display for 1-phase mains
use of CT pulse output, Modbus RTU |
| Measurement range, voltage L-N, AC | 176…276 V |
| Surge voltage category | II |
| Three-wire system | No |
| Four-wire system | No |
| Sampling frequency 50/60 Hz | 3,2 kHz |
| Continuous measurements | Yes |
| Measurement result per second | 100 ms |
| Current-measuring channels | 1 |
| Measuring accuracy for voltage | 0,5 % |
| Measuring accuracy for current | 0,5 % |
| Measurement accuracy for active energy (kWh, .../5 A) |
Class 1 (IEC 62053-21)
Class B (EN 50470-3) |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Insulation voltage input or output/supply | 4 kVeff / 1 min. |
| Pollution severity | 2 |
| Surge voltage category | II |
| Stripping length | 7 mm |
| Type of connection | Screw connection |
| Tightening torque | 1.3 Nm |
| Wire cross-section, solid, min. | 0,5 mm² |
| Wire cross-section, solid, max. | 1,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0,5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 2,5 mm² |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_246620) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_302142) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.7760051002) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=7760051002) |
| Software |
[EM configuration tools](https://mdcop.weidmueller.com/mediadelivery/asset/900_224560)
[Device description -- Device description -- MODBUS address list](https://mdcop.weidmueller.com/mediadelivery/asset/900_246621) |
| User Documentation |
[Manual EM configuration tools Chinese](https://mdcop.weidmueller.com/mediadelivery/asset/900_224564)
[Manual EM configuration tools English](https://mdcop.weidmueller.com/mediadelivery/asset/900_224565) [Manual EM110 Chinese](https://mdcop.weidmueller.com/mediadelivery/asset/900_224566) [Manual EM110 English](https://mdcop.weidmueller.com/mediadelivery/asset/900_224567) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002301 |
| ETIM 7.0 | EC002301 |
| ETIM 8.0 | EC002301 |
| ETIM 9.0 | EC002301 |
| ECLASS 9.0 | 27-14-23-30 |
| ECLASS 9.1 | 27-21-03-01 |
| ECLASS 10.0 | 27-14-23-30 |
| ECLASS 11.0 | 27-14-23-30 |
| ECLASS 12.0 | 27-14-23-30 |
| ECLASS 13.0 | 27-14-23-30 |
| ECLASS 14.0 | 27-14-23-30 |
| Approvals |  |
| ROHS | Conform |
