Ominaisuudet
| Version | Cutting tools, Cutting tool |
| Order No. | 2453830000 |

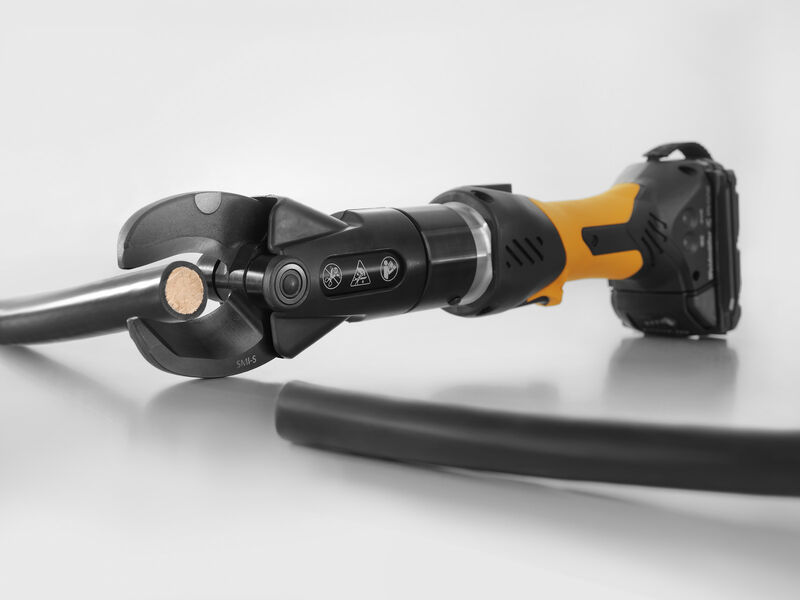

| Type | EPG CUT 40 |
| GTIN (EAN) | 4050118468410 |
| Qty. | 1 items |
| Depth | 70 mm |
| Depth (inches) | 2,756 inch |
| Height | 365 mm |
| Height (inches) | 14,37 inch |
| Width | 80 mm |
| Width (inches) | 3,15 inch |
| Net weight | 3 100 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
| Charging time | 0,5 h |
| Operating voltage | 18 V DC |
| Charging time | 0,5 h |
| Copper cable - solid, max. | 240 mm² |
| Copper cable - stranded, max. | 200 mm² |
| Copper cable, max. diameter | 40 mm |
| Operating voltage | 18 V DC |
| Punching force | 30 kN |
| Single-core aluminium cable, max.(mm²) | 500 mm² |
| Stranded aluminium cable, max (mm²) | 280 mm² |
| Stranded aluminium cable, max. diameter | 40 mm |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101191) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000142 |
| ETIM 7.0 | EC000142 |
| ETIM 8.0 | EC000142 |
| ETIM 9.0 | EC000142 |
| ECLASS 9.0 | 21-04-47-01 |
| ECLASS 9.1 | 21-04-37-06 |
| ECLASS 10.0 | 21-04-47-01 |
| ECLASS 11.0 | 21-04-47-01 |
| ECLASS 12.0 | 21-04-47-01 |
| ECLASS 13.0 | 21-04-47-01 |
| Approvals |  |
| ROHS | Conform |
Lisävarusteet
ToolsCrimping tools... for tubular (EN 13600), compression (DIN 46235) and crimp (DIN 46234) cable lugsAccessories
