Ominaisuudet

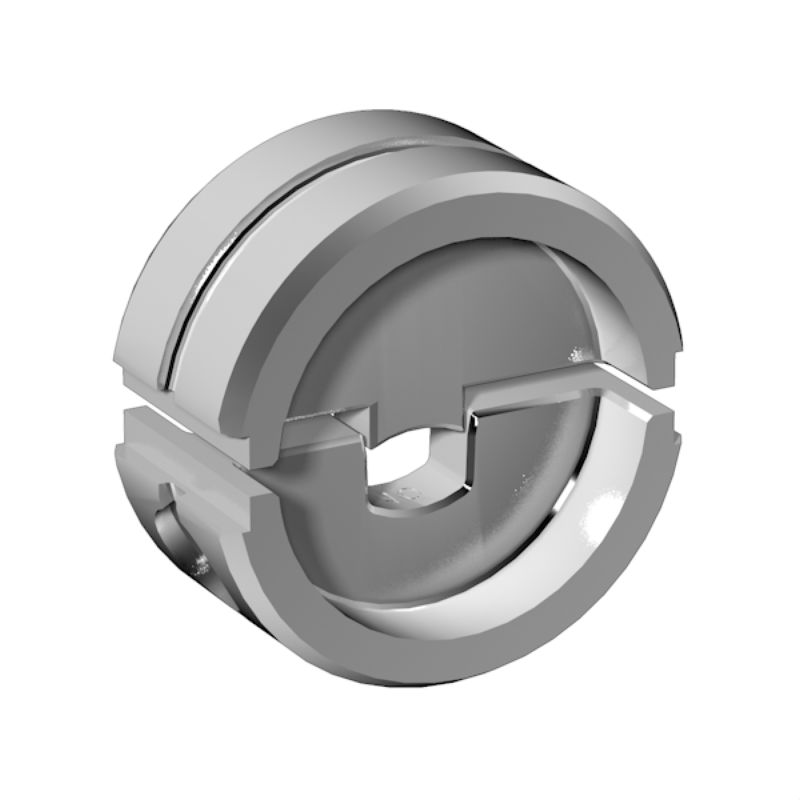

| Version | Crimping tool insert |
| Order No. | 2577940000 |
| Type | ES EPG 60 ISO 10 |
| GTIN (EAN) | 4050118590647 |
| Qty. | 1 items |
| Depth | 22 mm |
| Depth (inches) | 0,866 inch |
| Height | 42 mm |
| Height (inches) | 1,654 inch |
| Width | 42 mm |
| Width (inches) | 1,654 inch |
| Net weight | 25 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Crimp cross-section copper | 10 |
| Crimping width | 7 mm |
| Crimping width in mm | 7 |
| Conductor cross-section, max. AWG | 8 |
| Type of contact | Insulated connector |
| Cable lug cross section |
|
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001282 |
| ETIM 7.0 | EC001282 |
| ETIM 8.0 | EC001282 |
| ETIM 9.0 | EC001282 |
| ECLASS 9.0 | 21-04-90-90 |
| ECLASS 9.1 | 21-01-90-90 |
| ECLASS 10.0 | 21-04-90-90 |
| ECLASS 11.0 | 21-04-90-90 |
| ECLASS 12.0 | 21-04-90-90 |
| ECLASS 13.0 | 21-04-90-90 |
| ECLASS 14.0 | 21-04-90-90 |
Lisävarusteet
-
Tuotteen tunnus:1491430000VPE:50 items
cable lug, terminal end,Insulated cable connector,10 mm²,10 mm²
-
Tuotteen tunnus:1492430000VPE:50 items
cable lug, terminal end,Insulated cable connector,10 mm²,10 mm² - 10 mm²
-
Tuotteen tunnus:1492440000VPE:50 items
cable lug, terminal end,Insulated cable connector,10 mm²,10 mm² - 10 mm²
-
Tuotteen tunnus:1492510000VPE:50 items
cable lug, terminal end,Insulated cable connector,16 mm²,16 mm² - 16 mm²
-
Tuotteen tunnus:1492450000VPE:50 items
cable lug, terminal end,Insulated cable connector,10 mm²,10 mm² - 10 mm²
-
Tuotteen tunnus:1492470000VPE:50 items
cable lug, terminal end,Insulated cable connector,10 mm²,10 mm² - 10 mm²
-
Tuotteen tunnus:1491340000VPE:50 items
cable lug, terminal end,Insulated cable connector,10 mm²,10 mm² - 10 mm²
-
Tuotteen tunnus:1491330000VPE:50 items
cable lug, terminal end,Insulated cable connector,10 mm²,10 mm² - 10 mm²
