Ominaisuudet

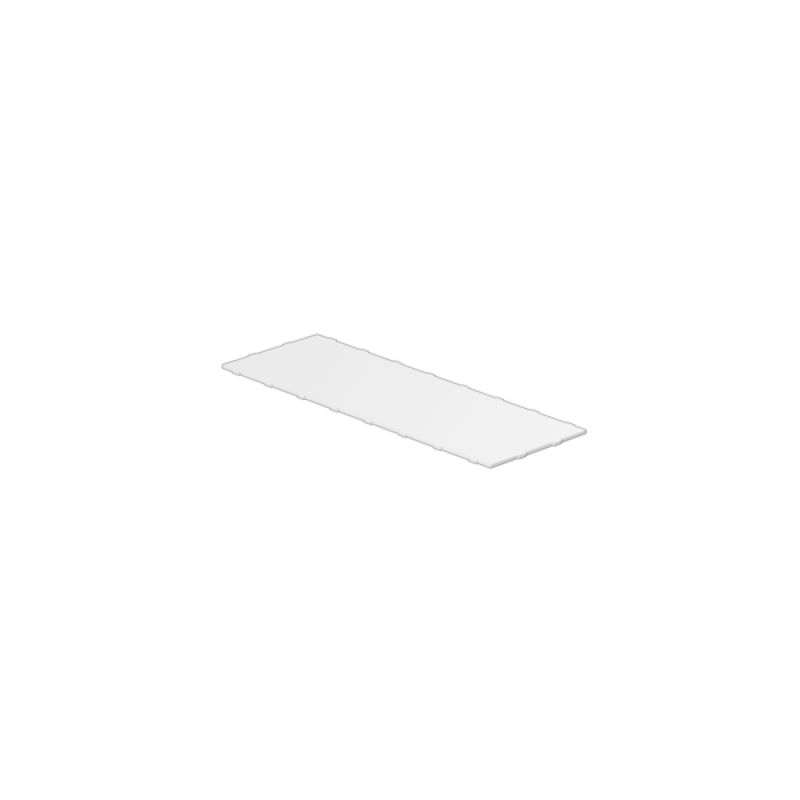

| Version | Terminal markers, Insert markers, 20 x 7 mm, white |
| Order No. | 1919870000 |
| Type | ESO 8/20 P DIN A4 WS |
| GTIN (EAN) | 4032248556861 |
| Qty. | 10 items |
| Depth | 1 mm |
| Depth (inches) | 0,039 inch |
| Height | 20 mm |
| Height (inches) | 0,787 inch |
| Width | 7 mm |
| Width (inches) | 0,276 inch |
| Net weight | 12,9 g |
| Operating temperature range | -40...80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | white |
| Material | Polyester, PVC-free |
| Material colour according to resistance code | 9 |

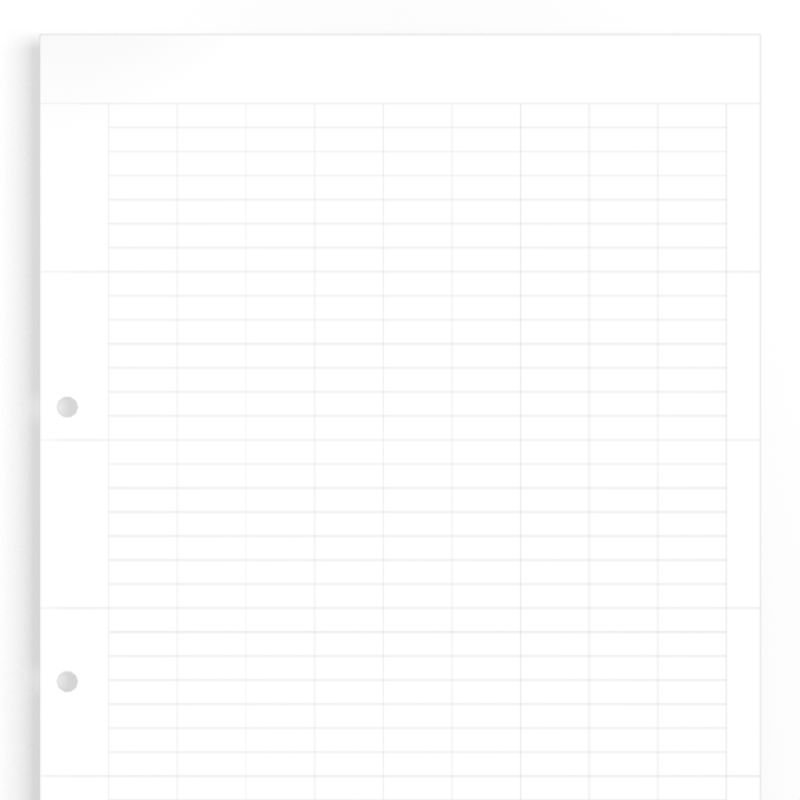

| Number of markers per combination | 1 Label sheet = Insert markers |
| Number of markers per packaging unit |
|
| Number per sheet | 342 |
| Operating temperature range | -40...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | −40 °C |
| Orientation of print | horizontal and vertical |
| Printed characters | without |
| UL 94 flammability rating | HB |
| Width | 7 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64863) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1919870000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1919870000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
