FC20 PN/50A S1 B BX
Product image
FC20 PN/50A S1 B BX
Product image
FC20 PN/50A S1 B BX
FC20 PN/50A S1 B BX
FC20 PN/50A S1 B BX

FC20 PN/50A S1 B BX

Dette produkt er snart ikke længere tilgængeligt.

Sidste ordre dato: /Date(1798671600000)/

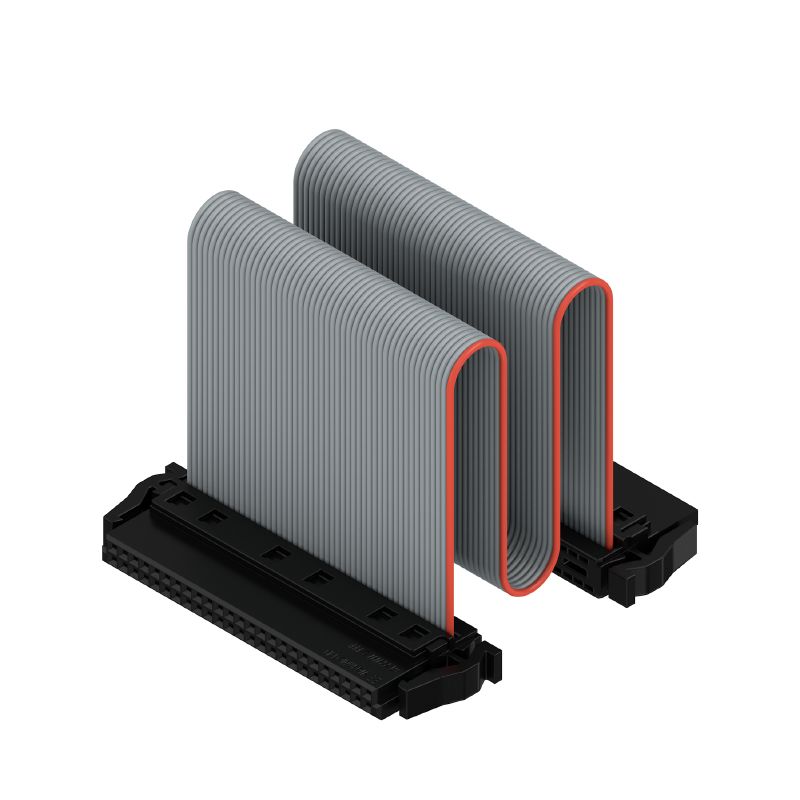

PCB plug-in connector, female plug, Pitch in mm (P): 1.27 mm, Number of poles: 50, Box

Produkt ID 2827250000
Download datablad Engineering-support Produktdownloads
Anvendte produkter 27
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
PCB plug-in connector, female plug, Pitch in mm (P): 1.27 mm, Number of poles: 50, Box
Order No.
2827250000
Type
FC20 PN/50A S1 B BX
GTIN (EAN)
4064675363859
Množství
10 Styk
Product data
IEC: / 1.9 A
UL:
Packaging
Box
Stav objednávky
This article will no longer be available in the future.
Last order date
/Date(1798671600000)/

Dimensions and weights

Length
12,2 mm
Length (inches)
0,48 inch
Net weight
14,2 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Signal - Board-to-Board
Type of connection
Insulation displacement connection (IDC)
Wire connection method
IDC terminal
Cable length
200 mm
Pitch in mm (P)
1,27 mm
Pitch in inches (P)
0,05 "
Směr výstupu vodiče
90°/270°
Počet pólů
50
Number of rows
2
Pin series quantity
2
Protection degree
IP20
Durchgangswiderstand
<25 mΩ
Plugging cycles
500
Plugging force/pole, max.
0,6 N
Pulling force/pole, max.
0,6 N

Material data

Insulating material
LCP
Barevný
grey
Colour chart (similar)
RAL 7035
Odpor izolace
≥ 20 MΩ
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact base material
Copper alloy
Contact material
Cu-alloy
Contact surface
Ni/Au
Layer structure of plug contact
≥ 2 µm Ni / ≥ 0.4 µm PdNi / ≥ 0.05 µm Au
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-20 °C
Operating temperature, max.
105 °C

Conductors suitable for connection

Wire connection cross section AWG, min.
AWG 30/1, 30/7
Wire connection cross section AWG, max.
AWG 30/1, 30/7

Rated data acc. to IEC

Rated current, min. number of poles (Tu=20°C)
1,9 A
Rated current, max. number of poles (Tu=40°C)
1,65 A
Clearance, min.
0,4 mm
Povrchová vzdálenost, min.
0,4 mm

Packing

Packaging
Box
VPE length
155 mm
VPE width
64 mm
VPE height
38 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
