Ominaisuudet

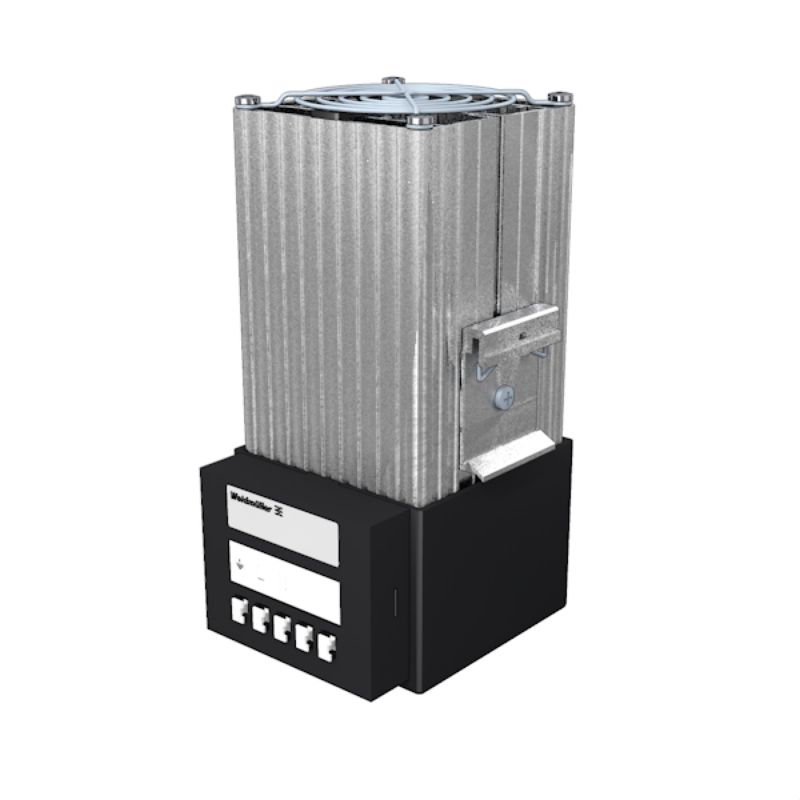

| Version | Heating panel fan, IP20, silver |
| Order No. | 2557990000 |
| Type | FH-TCO 250W 230V |
| GTIN (EAN) | 4050118568639 |
| Qty. | 1 items |
| Depth | 104 mm |
| Depth (inches) | 4,094 inch |
| Height | 186,5 mm |
| Height (inches) | 7,343 inch |
| Width | 85 mm |
| Width (inches) | 3,346 inch |
| Net weight | 1 040 g |
| Operating temperature range | -40...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Continuous heat output at 10°C | 250 W |
| Inrush current | max. 1.1 A |
| Operating temperature range | -40...70 °C |
| Operating voltage | 230 V |
| Protection degree | IP20 |
| Type of connection | Spring contact |
| Type of mounting | Rail |
| With room thermostat | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_53256) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2557990000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000737 |
| ETIM 7.0 | EC000737 |
| ETIM 8.0 | EC000737 |
| ETIM 9.0 | EC000737 |
| ECLASS 9.1 | 27-18-07-10 |
| ECLASS 10.0 | 27-18-07-10 |
| ECLASS 11.0 | 27-18-07-10 |
| ECLASS 12.0 | 27-18-07-10 |
| ECLASS 13.0 | 27-18-07-10 |
| ECLASS 14.0 | 27-18-07-10 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E497839 |
