Ominaisuudet
| Version | Wire-end ferrule, Standard, 10 mm, 8 mm, Light Blue |
| Order No. | 9025760000 |
| Type | H0,25/12 HBL |
| GTIN (EAN) | 4008190010027 |
| Qty. | 500 items |
| Packaging | loose |
| Net weight | 0,046 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |

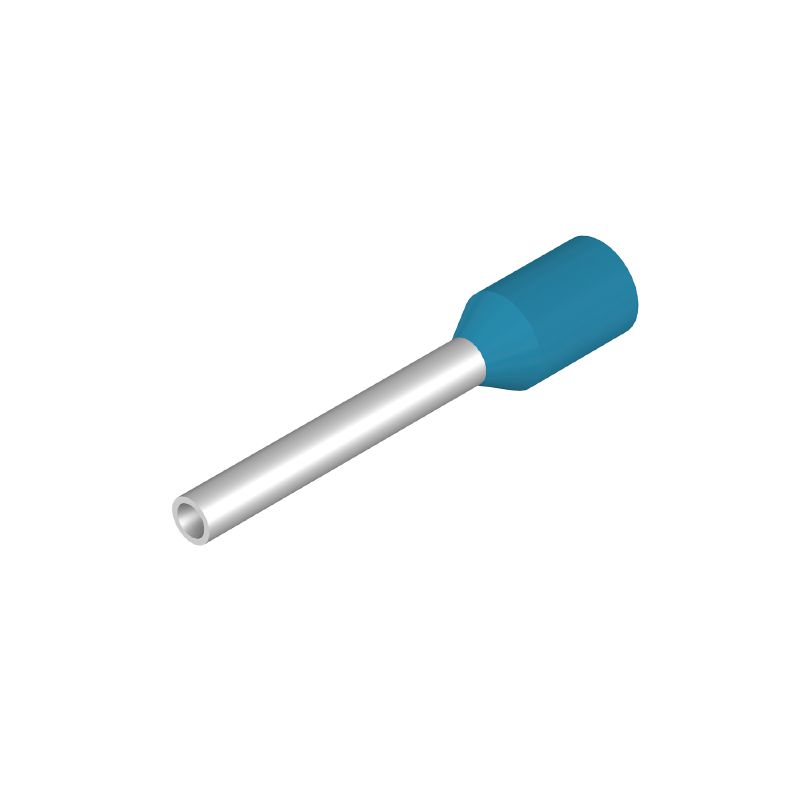

| Description of article | Wire end ferrule with plastic collar, light blue |
| Version | Standard |
| Collar diameter (D2) | 1,8 mm |
| Colour code | Weidmueller |
| Conductor cross-section | 0,25 mm² |
| Contact surface diameter (D1) | 0,8 mm |
| Contact surface length (L2) | 8 mm |
| L1 in mm | 12 mm |
| Metal sleeve thickness (S1) | 0,15 mm |
| Plastic collar thickness (S2) | 0,25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 24 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55422) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9025760000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9025760000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=9025760000&norm=0) |
| User Documentation |
[Technical information - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_106826)
[Technical information - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_106827) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E499744 |
