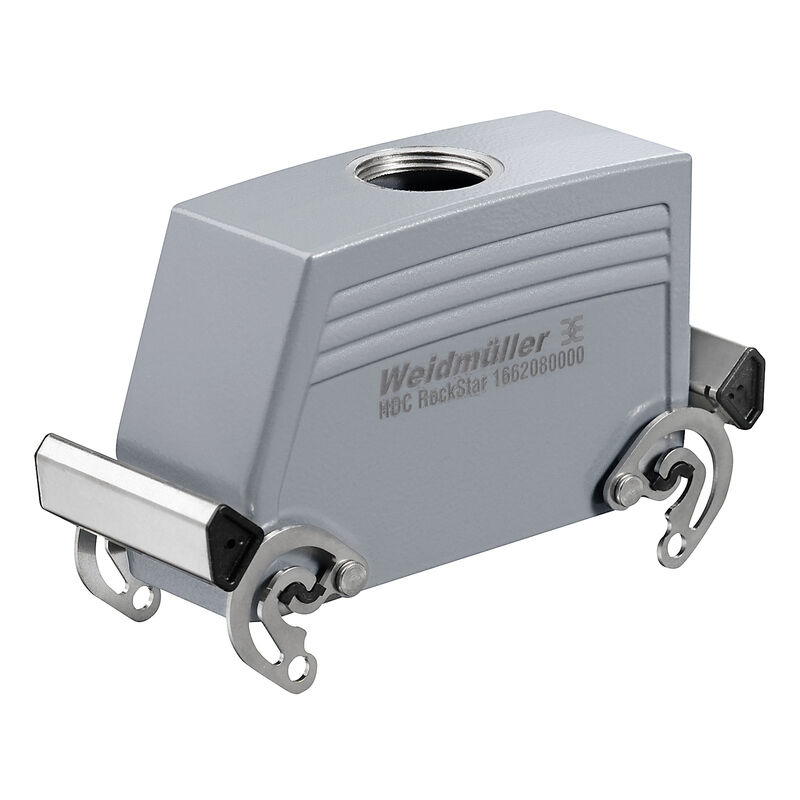

HDC enclosures, Installation size: 8, Protection degree: IP65, in plugged condition, Cable entry from top, Plug housing, Side-locking clamp on upper side, high, Size of cable entries: PG 21

Ürün No. 1662080000
Stáhnout datový list Mühendislik desteği Ürün İndirmleri
Aksesuarlar 8 aksesuarıdır 6 İlgili ürünler 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version
HDC enclosures, Installation size: 8, Protection degree: IP65, in plugged condition, Cable entry from top, Plug housing, Side-locking clamp on upper side, high, Size of cable entries: PG 21
Order No.
1662080000
Type
HDC 64D TOBO 1PG21G
GTIN (EAN)
4008190418601
Qty.
1 adet

Dimensions and weights

Height
76 mm
Height (inches)
2,992 inch
Width
55 mm
Width (inches)
2,165 inch
Net weight
358,16 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
e98b2b24-ba23-41bf-8d19-0dda3647412f
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

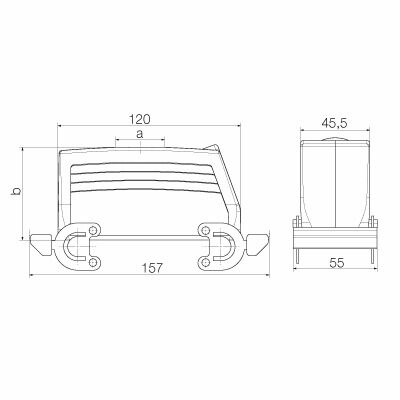

Dimensions

Altezza Custodia B
76 mm
Entrada de cable
w. thread
Total length housing
120 mm
Width housing C
43 mm

General data

Powierzchnia
Powder coating
Stopień ochrony
IP65
in plugged condition

Version

Anzahl Kabeleingang oben
1
Anzahl Kabeleingang seitlich
0
BG
8
Cable entry
w. thread
Clamp version
Side-locking clamp
Colour (RAL)
RAL 7035
Design
high
Design of housing
Cable entry from top
Plug housing
Design of locking system
Side-locking clamp on upper side
Installation size
8
Internal thread
PG 21
Kryt
without cover
Sealing
no sealing
Suitable for ModuPlug®
Yes
Type
Plug
Wymiary wlotów kablowych
PG 21
Верхняя часть/нижняя часть/крышка
upper part

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
