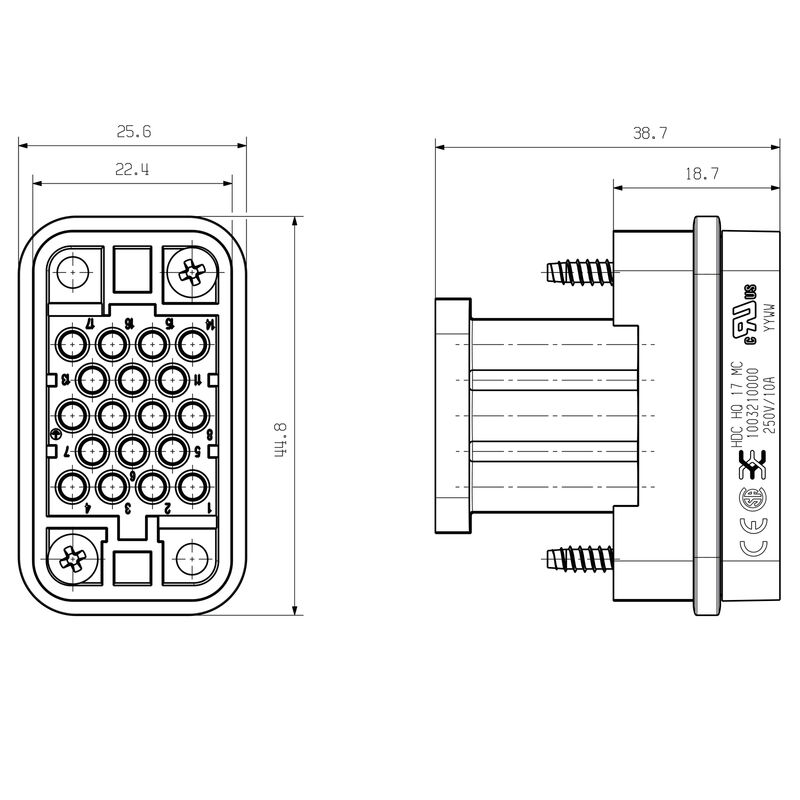

HDC insert, Male, 250 V, 10 A, Number of poles: 17, Crimp connection, Installation size: HQ

Tuotteen tunnus 1003210000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 24 On lisävaruste 13 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version
HDC insert, Male, 250 V, 10 A, Number of poles: 17, Crimp connection, Installation size: HQ
Order No.
1003210000
Type
HDC HQ 17 MC
GTIN (EAN)
4032248698202
Qty.
1 items

Dimensions and weights

Depth
41,6 mm
Depth (inches)
1,638 inch
Height
38,7 mm
Height (inches)
1,524 inch
Width
22,4 mm
Width (inches)
0,882 inch
Net weight
14,96 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1
SCIP
90e73fd4-d5ee-4f53-95e4-fe79a5c92ace
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

Dimensions

Bredd
22,4 mm
Height of plug
38,7 mm
Total length base
41,6 mm

General data

Baja emisión de humos según DIN EN 45545-2
Yes
Basic material
Copper alloy
BG
HQ
Colour
beige
Installation size
HQ
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Jmenovité napětí: podle UL/CSA
600 V AC/DC
Number of poles
17
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
2
Rated current (DIN EN 61984)
10 A
Rated impulse voltage (DIN EN 61984)
4 kV
Rated voltage (DIN EN 61984)
250 V
Series
HQ
Type
Male
Type of connection
Crimp connection
UL 94 flammability rating
V-0
Volume resistance
≤4 mΩ

Connection data PE

Connection type PE
Crimp connection
Rated cross-section
2,5 mm²
Stripping length PE connection
8 mm
Wire cross section, AWG (PE), max.
AWG 14
Wire cross section, AWG (PE), min.
AWG 26

Version

BG
HQ
Csatlakozás típusa
Crimp connection
Lunghezza di spellatura, collegamento di dimensionamento
8 mm
Materiał podstawowy
Copper alloy
przekrój przyłącza przewodu AWG, min.
AWG 26
Przekrój przyłącza przewodu, cienki przewód wielodrutowy, min.
0,14 mm²
Przekrój przyłącza przewodu, maks.
2,5 mm²
Przekrój przyłącza przewodu, min.
0,14 mm²
Przekrój przyłącza przewodu, z cienkiego drutu, maks.
2,5 mm²
Vezeték csatlakozási keresztmetszet AWG, max.
AWG 14
Volume resistance
≤4 mΩ
설치 사이즈
HQ

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
