Ominaisuudet

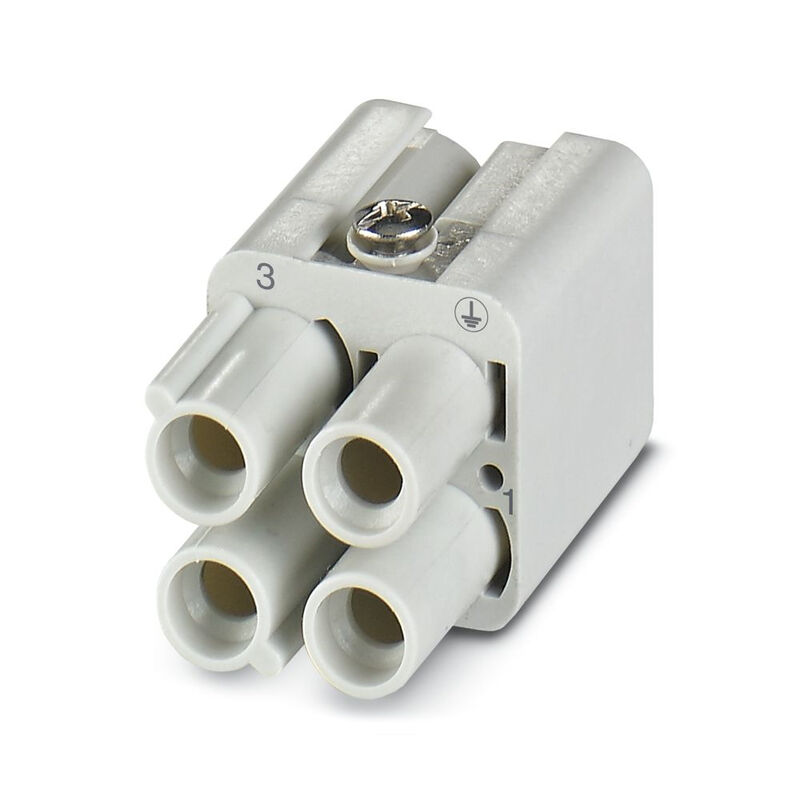

| Version | HDC insert, Female, , Number of poles: 3, Crimp contact, Size: 1 |
| Order No. | 3103530000 |
| Type | HDC HQ 3 FC |
| GTIN (EAN) | 4099987151252 |
| Qty. | 1 items |

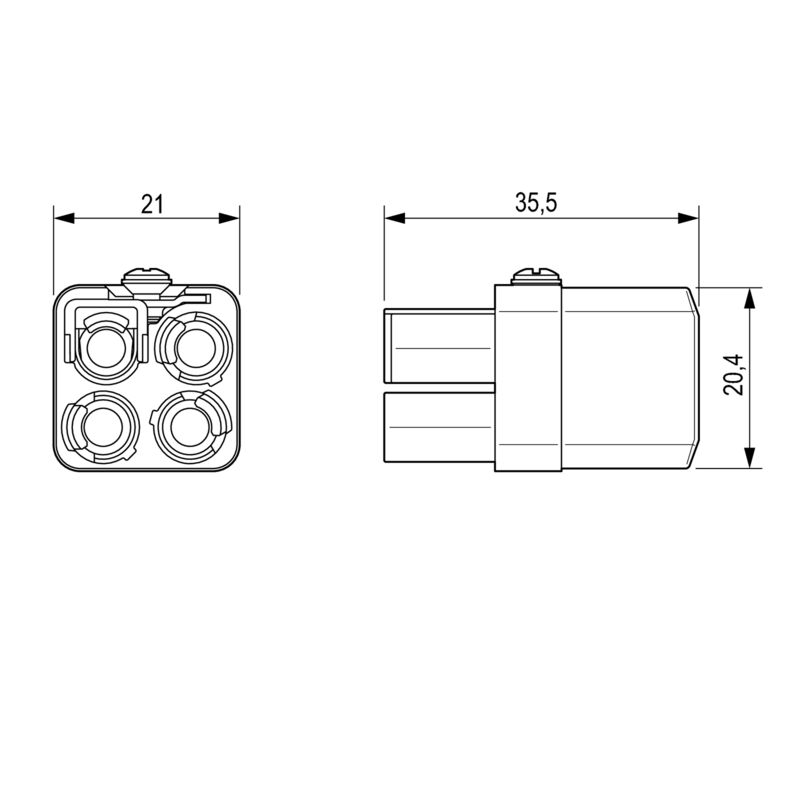

| Depth | 21 mm |
| Depth (inches) | 0,827 inch |
| Height | 34,8 mm |
| Height (inches) | 1,37 inch |
| Net weight | 18,3 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Height of plug | 21 mm |
| BG | 1 |
| Colour | grey |
| Insulating material | PC |
| Number of poles | 3 |
| Plugging cycles | ≥ 500 |
| Pollution severity | 3 |
| Rated impulse voltage (DIN EN 61984) | 6 kV |
| Rated voltage (DIN EN 61984) | 400 V |
| Series | HQ |
| Size | 1 |
| Surge voltage category | III |
| Type | Female |
| Type of connection | Crimp contact |
| UL 94 flammability rating | V-0 |
| Protection degree | IP20 |
| Connection type PE | Crimp connection |
| Stripping length according to the cable diameter |
|
| BG | 1 |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 1,5 mm² |
| Size | 1 |
| Type of connection | Crimp contact |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
