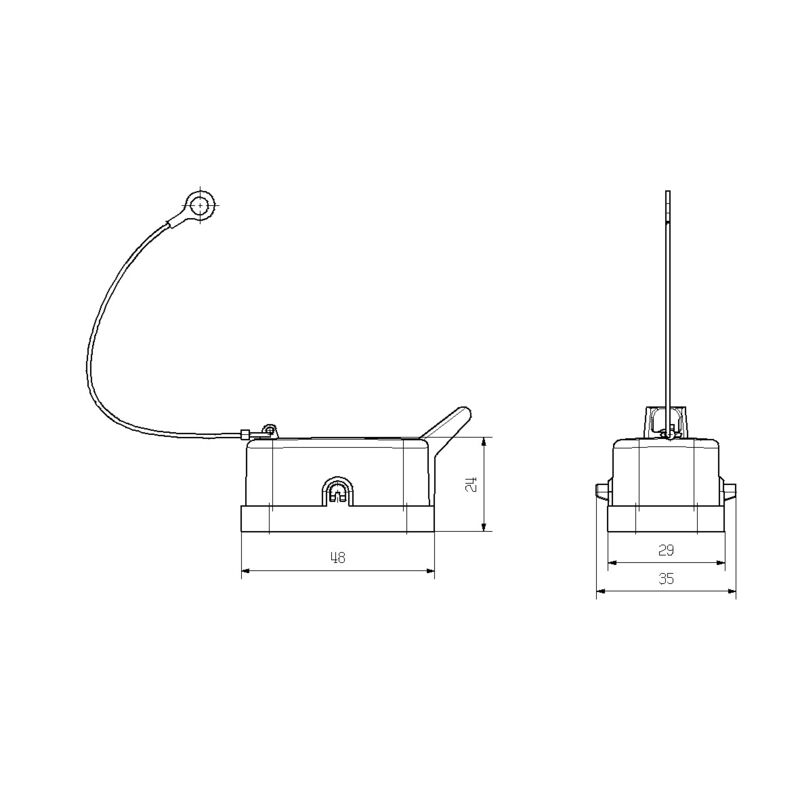

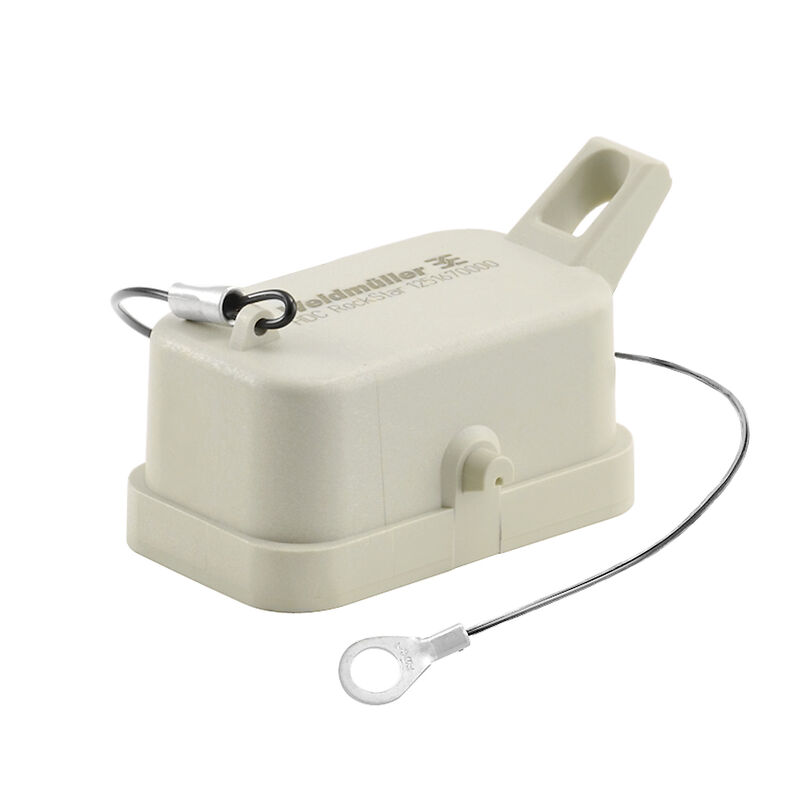

HDC enclosures, Size: HQ, Protection degree: IP65 (in plugged condition), Cover for lower part of housing, Side-locking clamp on lower side

Tuotteen tunnus 1251670000

Ominaisuudet

General ordering data

Version	HDC enclosures, Size: HQ, Protection degree: IP65 (in plugged condition), Cover for lower part of housing, Side-locking clamp on lower side
Order No.	1251670000
Type	HDC HQP DOD 2BO CS
GTIN (EAN)	4050118052329
Qty.	1 items

Dimensions and weights

Depth	48,4 mm
Depth (inches)	1,906 inch
Height	23,5 mm
Height (inches)	0,925 inch
Width	29 mm
Width (inches)	1,142 inch
Net weight	12 g

Temperatures

Limit temperature

-40 °C ... 125 °C

Environmental Product Compliance

REACH SVHC	Potassium perfluorobutane sulfonate 29420-49-3
SCIP	2f94735a-9fba-4903-842f-4fb9aa902310
Chemical resistance	Substance: Acetone Chemical resistance: Conditionally resistant Substance: Drilling oil Chemical resistance: Resistant Substance: Diesel Chemical resistance: Resistant Substance: Ethyl alcohol Chemical resistance: Resistant Substance: Transmission oil Chemical resistance: Resistant Substance: Hydraulic oil Chemical resistance: Resistant Substance: Coolant Chemical resistance: Resistant Substance: Petroleum benzine Chemical resistance: Resistant Substance: Sweat Chemical resistance: Resistant Substance: Premium gasoline Chemical resistance: Conditionally resistant Substance: Water Chemical resistance: Resistant Substance: UV Chemical resistance: Unstable Substance: Ozone Chemical resistance: Unstable

Dimensions

Cable entry	with male
Height of housing B	23,5 mm
Total length housing	48,4 mm
Width housing C	29 mm

General data

EMC housings	No
Housing main material	Plastic
Protection degree	IP65 (in plugged condition)
Series	HQ
UL 94 flammability rating	V-0

Version

BG	HQ
Cable entry	with male
Clamp version	Side-locking clamp
Colour (RAL)	RAL 1001
Design of housing	Cover for lower part of housing
Design of locking system	Side-locking clamp on lower side
Mounting with catch cord possible	Yes
Size	HQ
Suitable for ModuPlug^®	No
Top part/bottom part/lid	Cover
Type	Cover

Important note

Product information

The HQ version now offers particular protection - the bulkhead housing (cover and metal clamp) can be secured with a padlock.

Downloads

Approval/Certificate/Document of Conformity	[Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_107588)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1251670000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1251670000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1251670000&norm=0)
Product Change Notification	[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005) [20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC000437
ETIM 7.0	EC000437
ETIM 8.0	EC000437
ETIM 9.0	EC000437
ECLASS 9.0	27-44-02-02
ECLASS 9.1	27-44-02-02
ECLASS 10.0	27-44-02-02
ECLASS 11.0	27-44-02-02
ECLASS 12.0	27-44-02-02
ECLASS 13.0	27-44-02-02

Approvals

ROHS

Conform
