Ominaisuudet

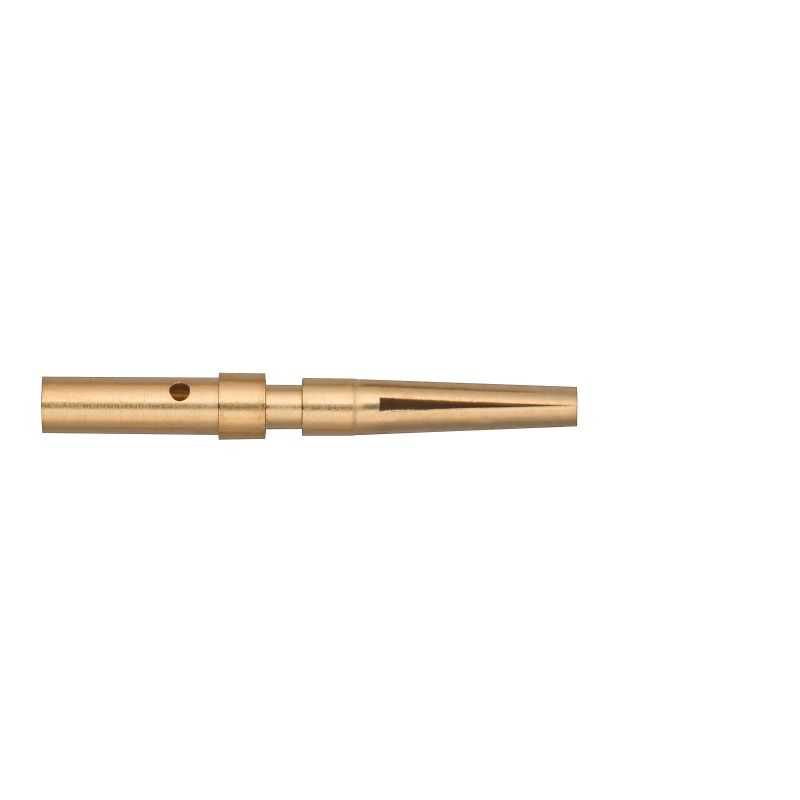

| Version | Crimp contact |
| Order No. | 2565930000 |
| Type | HDC MBUS4 F AWG18 |
| GTIN (EAN) | 4050118575484 |
| Qty. | 100 items |
| Net weight | 0,001 g |
| Limit temperature | -40 °C ... 90 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 6eabd5ae-2d6b-409e-8bdf-87c27ee10e40 |
| Conductor cross-section, max. | 1 mm² |
| Conductor cross-section, min. | 0,75 mm² |
| Contact material | Copper alloy |
| Material | Copper alloy |
| Plugging cycles | ≥ 100 |
| Series | ModuPlug |
| Stripping length, rated connection | 4,5 mm |
| Surface finish | gold |
| Type | Female |
| Type of connection | Crimp connection |
| Contact surface | Gold-plated |
| Plugging cycles | ≥ 100 |
| Rated current | 4 A |
| Transmission rate | 100 MBit/s |
| Type | Female |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96210) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2565930000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2565930000) |
| User Documentation | [Instructions sheet HDC ModuPlug field attachable](https://mdcop.weidmueller.com/mediadelivery/asset/900_86772) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000796 |
| ETIM 7.0 | EC000796 |
| ETIM 8.0 | EC000796 |
| ETIM 9.0 | EC000796 |
| ECLASS 9.0 | 27-44-02-04 |
| ECLASS 9.1 | 27-44-02-04 |
| ECLASS 10.0 | 27-44-02-04 |
| ECLASS 11.0 | 27-44-02-04 |
| ECLASS 12.0 | 27-44-02-04 |
| ECLASS 13.0 | 27-44-02-04 |
| ECLASS 14.0 | 27-44-02-04 |
| ROHS | Conform |
