Ominaisuudet

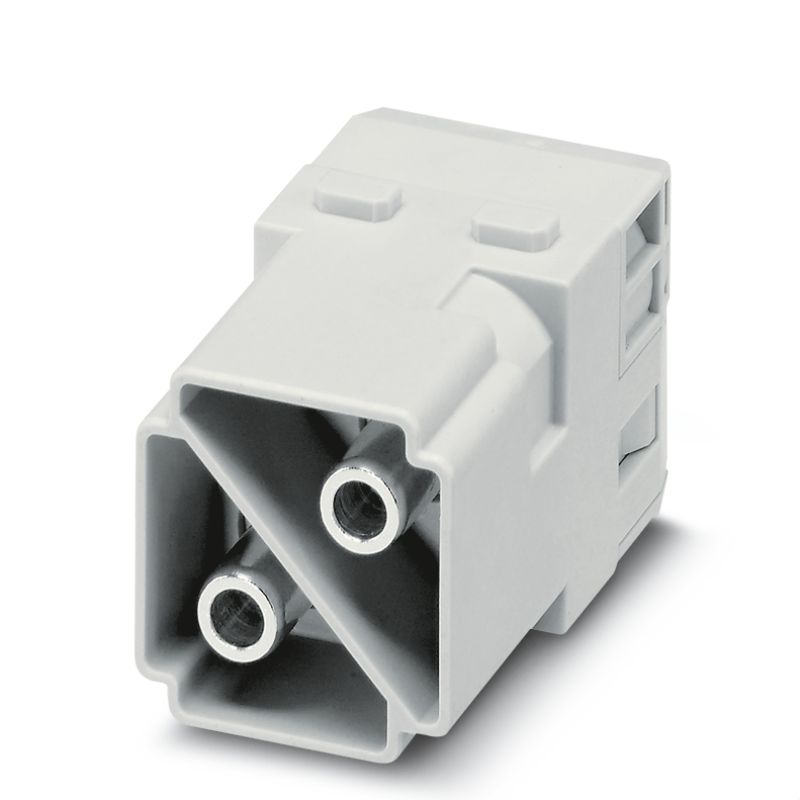

| Version | Power module, 1000 V, 100 A, Number of poles: 2, Axial screw connection, Male, Required plug-in slots: 2 |
| Order No. | 2748280000 |
| Type | HDC MHP 100 MAS |
| GTIN (EAN) | 4050118891034 |
| Qty. | 2 items |

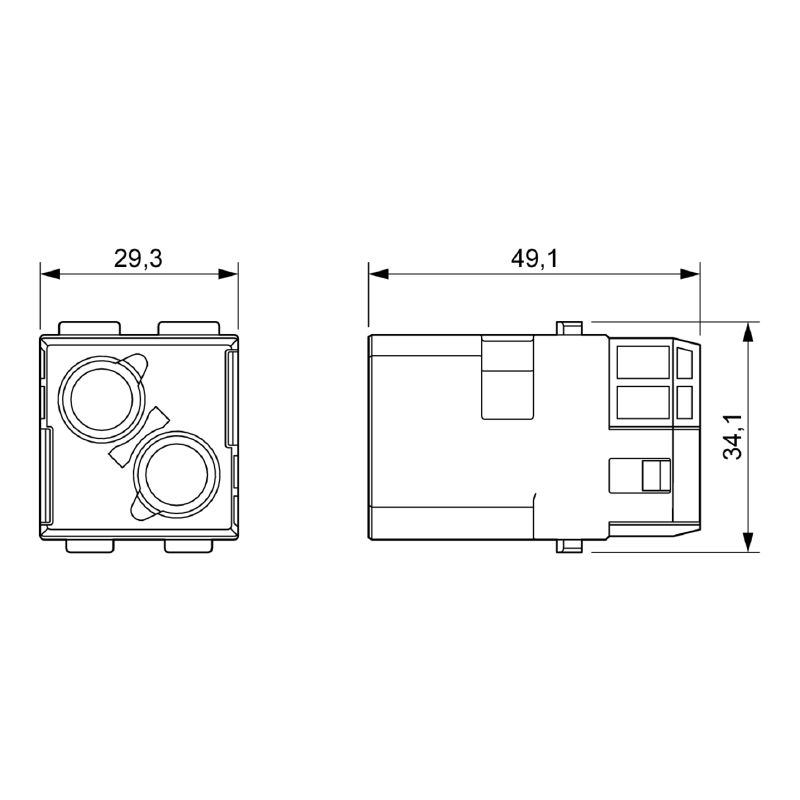

| Depth | 34 mm |
| Depth (inches) | 1,339 inch |
| Height | 49 mm |
| Height (inches) | 1,929 inch |
| Width | 34,2 mm |
| Width (inches) | 1,346 inch |
| Net weight | 24,9 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | fa505316-3e43-4ad0-930c-360dfdbe182a |
| Insulating material | Polycarbonate |
| Material | Polycarbonate |
| Number of poles | 2 |
| Plugging cycles | ≥ 500 |
| Pollution severity | 3 |
| Rated current (DIN EN 61984) | 100 A |
| Rated impulse voltage (DIN EN 61984) | 8 kV |
| Rated voltage (DIN EN 61984) | 1 000 V |
| Rated voltage according to UL/CSA | 600 V |
| Required plug-in slots | 2 |
| Series | ModuPlug |
| Surge voltage category | III |
| Type | Male |
| UL 94 flammability rating | V-0 |
| Conductor cross-section, max. | 35 mm² |
| Conductor cross-section, min. | 10 mm² |
| Type of connection | Axial screw connection |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 8 |
| Clamping range, power contact, max. | 35 mm² |
| Clamping range, power contact, min. | 10 mm² |
| Stripping length according to the cable diameter |
|
| Tightening torque, max. according to the conductor cross-section |
|
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_188691) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2748280000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E92202 |
