HSS-HF 12.7-25.4EL G30M
HSS-HF 12.7-25.4EL G30M

HSS-HF 12.7-25.4EL G30M

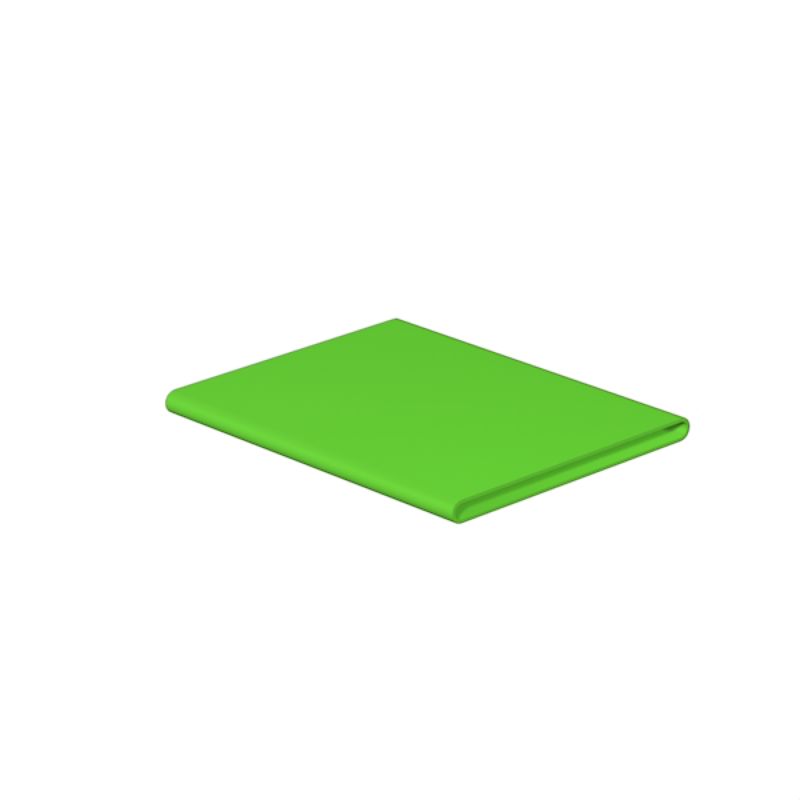

Conductor and cable markers, 12.7 - 25.4 mm, green

Produkt ID 1563040000
Download datablad Produktdownloads Engineering-support
Tilbehør 5 Anvendte produkter 39
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Señalizador para cables y conductores Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
Conductor and cable markers, 12.7 - 25.4 mm, green
Order No.
1563040000
Type
HSS-HF 12.7-25.4EL G30M
GTIN (EAN)
4050118367591
Qty.
1 Styk

Dimensions and weights

Depth
1,5 mm
Depth (inches)
0,059 inch
Width
40,5 mm
Width (inches)
1,594 inch
Length
30.000 mm
Length (inches)
1.181,1 inch
Net weight
1.567 g

Temperatures

Operating temperature range
-55...105 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyolefin
Colour
verde
Halogen
아니요
kompatibilní tiskárna
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Length
30.000 mm
Number per roll
1
Operating temperature range, max.
105 °C
Operating temperature range, min.
-55 °C
Rozsah provozní teploty
-55...105 °C
Tištěné znaky
without
Type of printing
neutral
Width
40,5 mm

Señalizador para cables y conductores

Conductor cross-section, max.
120 mm²
Conductor cross-section, min.
35 mm²
Conductor O.D.
12.7 - 25.4 mm
Conductor O.D., max.
25,4 mm
Conductor O.D., min.
12,7 mm
Cross-section for connected wire
35 - 120 mm²
Halogen
Nem
Rate of shrinkage
2:1
Recommended shrinking temperature
90 °C

Important note

Product information
External roll holder 1302920000 necessary

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
