Ominaisuudet

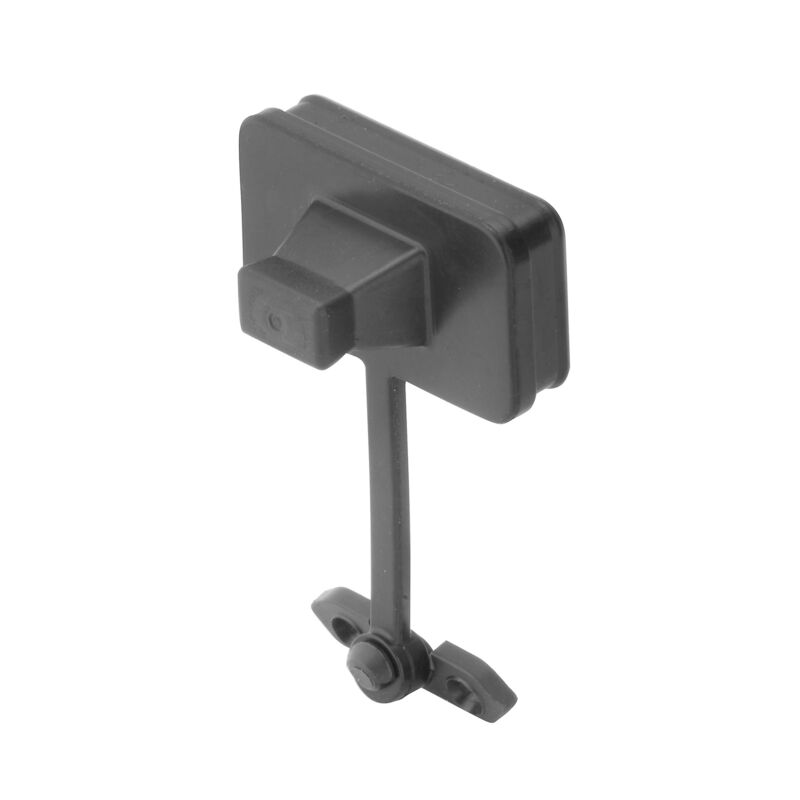

| Version | Flange-mounted housing, protective cap |
| Order No. | 1068930000 |
| Type | IE-BP-VAPP |
| GTIN (EAN) | 4032248823093 |
| Qty. | 10 items |
| Depth | 19,5 mm |
| Depth (inches) | 0,768 inch |
| Net weight | 11 g |
| Operating temperature | -40 °C...70 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | black |
| Protection degree | IP54 |
| Type of mounting | Indoors only |
| UL 94 flammability rating | V-0 |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002314 |
| ETIM 7.0 | EC002314 |
| ETIM 8.0 | EC002314 |
| ETIM 9.0 | EC002314 |
| ECLASS 9.0 | 27-44-02-08 |
| ECLASS 9.1 | 27-44-02-08 |
| ECLASS 10.0 | 27-44-02-08 |
| ECLASS 11.0 | 27-44-02-08 |
| ECLASS 12.0 | 27-44-02-08 |
| ECLASS 13.0 | 27-44-02-08 |
| ECLASS 14.0 | 27-44-02-08 |
| ROHS | Conform |
On lisävaruste
-
Tuotteen tunnus:2493480000VPE:1 items
Power connector, Flange, PROFINET, Set of flanges
-
Tuotteen tunnus:1068820000VPE:1 items
Junction box, FreeCon, RJ45, Plug-in connector, Supply, IP65
-
Tuotteen tunnus:1068830000VPE:1 items
Junction box, FreeCon, RJ45 module, Supply, IP65
-
-
Tuotteen tunnus:1397690000VPE:1 items
Coupling, FreeCon, Supply, IP65, If thread-locking fluid is used
