Ominaisuudet

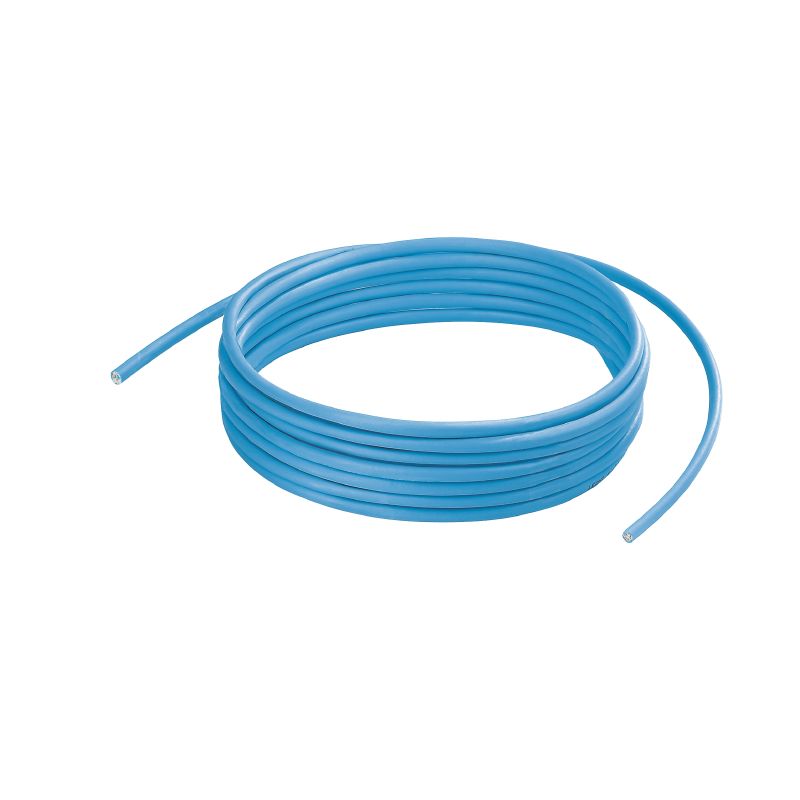

| Version | Dragline cable, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 500 m |
| Order No. | 2763480000 |
| Type | IE-C5ED8UB-500 |
| GTIN (EAN) | 4064675030973 |
| Qty. | 1 items |
| Length | 500 m |
| Length (inches) | 19 685,039 inch |
| Net weight | 29 400 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...80 °C |
| Installation temperature | -40 °C...80 °C |
| Acceleration | 5 m/s² |
| Bending cycles | 5 Mio |
| Halogen | halogen-free, according to IEC 60754-2 |
| Number of poles | 8 |
| Resistance to oils | in accordance with IEC 60811-2-1 |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Sheathing colour | blue (RAL 5015) |
| Speed | 180 m/min |
| Test voltage: wire-wire-shield | 700 Vrms, 50 Hz, 1 min |
| Torsion resistance | 30 °/m |
| Impervious to smoke | According to IEC 61034-2 |
| Standard, assembly | UL-Style 20963 (80°C/30V) |
| Standard, insulating material | DIN EN 50290-2-25 (HD 624.5) |
| Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
| Standard, wire material | DIN EN 13602 Cu-ETP-A |
| Impervious to smoke | According to IEC 61034-2 |
| Standard, assembly | UL-Style 20963 (80°C/30V) |
| Standard, insulating material | DIN EN 50290-2-25 (HD 624.5) |
| Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
| Standard, wire material | DIN EN 13602 Cu-ETP-A |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires - wire pairs | white/blue - blue, white/orange - orange, white/green - green, white/brown - brown |
| Complete shielding |
Plastic foil
Aluminium foil Shielding braid made from copper wiring |
| Cross-section | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Filler |
As central element
Between the individual wire pairs |
| Insulation cross-section | 0,95 mm |
| Material sheath | PUR |
| Overlap of shielding braid | 90 % |
| Sheath diameter, max. | 6,8 mm |
| Sheath diameter, min. | 6,5 mm |
| Sheathing colour | blue (RAL 5015) |
| Sheathing material thickness | 0,85 mm |
| Shielding | SF/UTP |
| Shielding braid thickness | 0,1 mm |
| Standard designations |
LI9Y(ST)C11Y 4X2X0.14 VZN GN
SF/UTP |
| Strands | 7 |
| Wire core insulation thickness | 0,23 mm |
| Wire material | Stranded tin-plated copper wire |
| Capacity at 800 Hz | 50 nF/km |
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
| Characteristic impedance | 100 ± 15 Ω at 1–100 MHz |
| Delay skew | 40 ns/100m |
| Loop resistance | 290 Ω/km |
| Operating voltage (UL rating) | 30 V |
| Operating voltage, UL | 30 V |
| Resistance differential | 2 % |
| Signal propagation time | 5,55 ns/m |
| Speed | 180 m/min |
| Test voltage: wire-wire-shield | 700 Vrms, 50 Hz, 1 min |
| Transfer impedance | 100 mΩ/m at 10 MHz |
| Abrasion resistance | very good |
| Acceleration | 5 m/s² |
| Bending cycles | 5 Mio |
| Fire propagation | No |
| Halogen | halogen-free, according to IEC 60754-2 |
| Impervious to smoke | According to IEC 61034-2 |
| Min. bending radius, repetitive | 60 mm |
| Pulling force | ≤ 100 N |
| Resistance to oils | in accordance with IEC 60811-2-1 |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Silicone-free | Yes |
| Speed | 180 m/min |
| Torsion resistance | 30 °/m |
| UV-resistant | Yes |
| Approval/Certificate/Document of Conformity | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| ETIM 9.0 | EC003249 |
| ECLASS 9.0 | 27-06-18-05 |
| ECLASS 9.1 | 27-06-90-90 |
| ECLASS 10.0 | 27-06-18-01 |
| ECLASS 11.0 | 27-06-18-01 |
| ECLASS 12.0 | 27-06-18-01 |
| ECLASS 13.0 | 27-06-18-01 |
| ROHS | Conform |
