Ominaisuudet

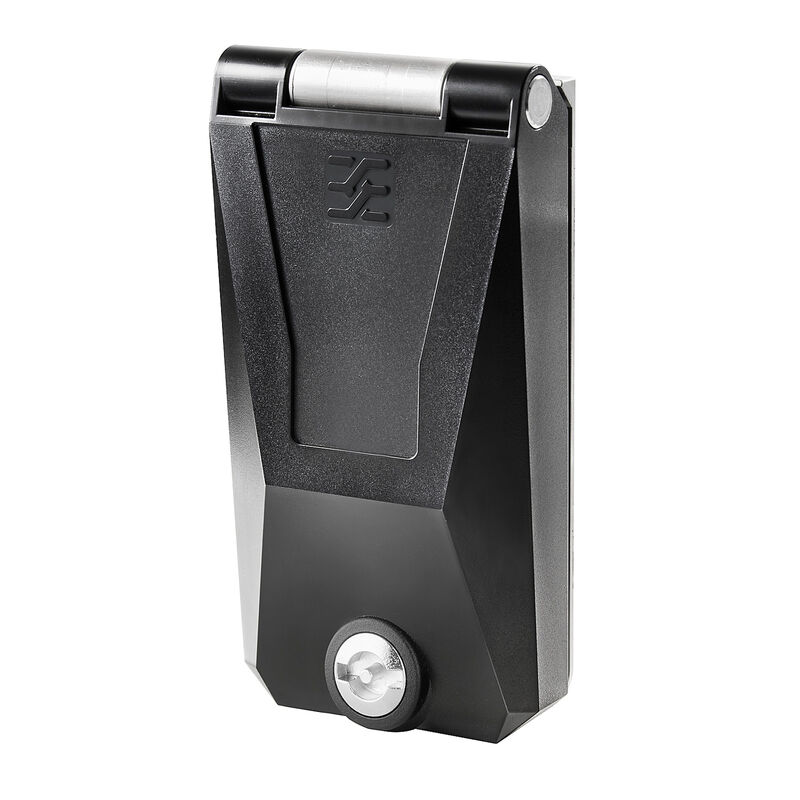

| Version | FrontCom, Single frame, Metal cover, Lockable with cabinet key |
| Order No. | 2003160000 |
| Type | IE-FC-SFM-CAB |
| GTIN (EAN) | 4050118387018 |
| Qty. | 1 items |

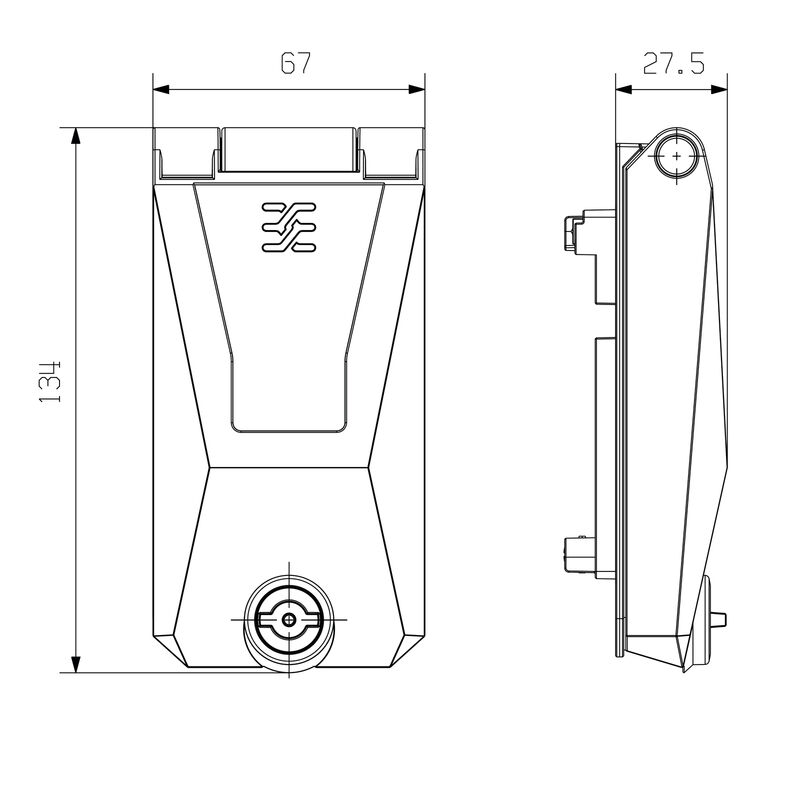

| Depth | 27,5 mm |

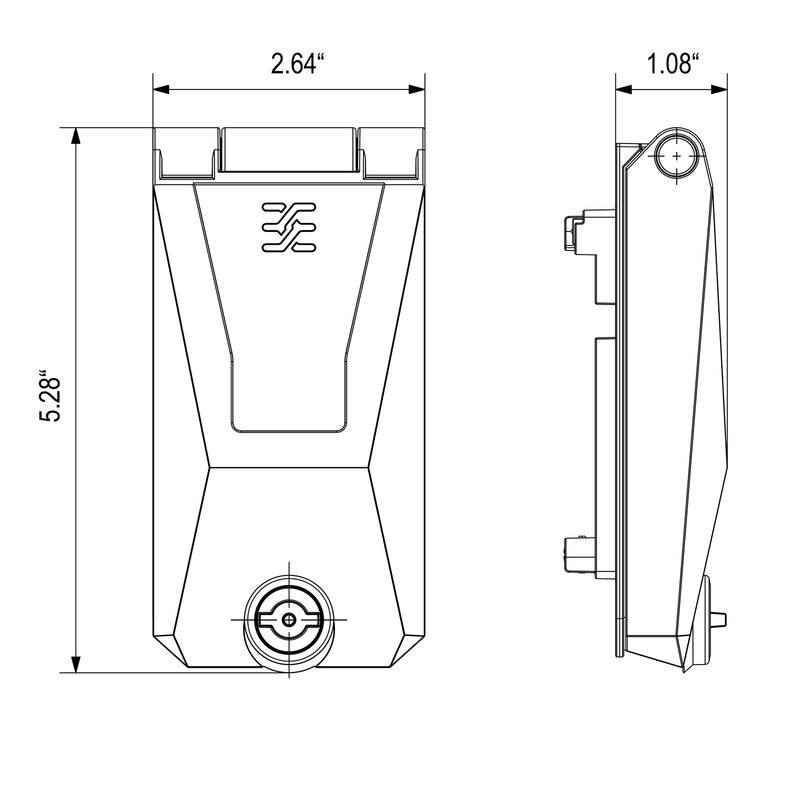

| Depth (inches) | 1,083 inch |
| Height | 134 mm |
| Height (inches) | 5,276 inch |
| Width | 67 mm |
| Width (inches) | 2,638 inch |
| Wall thickness, min. | 1 mm |
| Wall thickness, max. | 5 mm |
| Net weight | 505 g |
| Operating temperature | -40 °C...70 °C |
| Material cover |
Zinc diecast
powder-coated |
| Material frame | Zinc diecast |
| Product type |
Single frame
Metal cover Lockable with cabinet key |
| Protection class (UL) | Type 12 |
| Protection degree |
IP65
in closed state |
| Certificate No. (CSA) | 2000039-80039714 |
| Certificate No. (cURus) | E223801 |
| Certificate No. (DNV) | TAA000022B |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97887) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2003160000) |
| User Documentation | [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90845) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001031 |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 9.0 | 27-18-27-02 |
| ECLASS 9.1 | 27-18-27-90 |
| ECLASS 10.0 | 27-18-27-02 |
| ECLASS 11.0 | 27-18-27-02 |
| ECLASS 12.0 | 27-18-28-92 |
| ECLASS 13.0 | 27-18-28-92 |
| Approvals |    |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E223801 |
Lisävarusteet
-
-
Tuotteen tunnus:1736181044VPE:200 items
ESG, Device markers x 20 mm, PA 66, Colour: white, pluggable
-
-
Tuotteen tunnus:1707270000VPE:80 items
SwitchMark, Device markers, 18 x 27 mm, white
-
Tuotteen tunnus:1713760000VPE:80 items
SwitchMark, Device markers, 18 x 27 mm, silver
-
Tuotteen tunnus:1073340000VPE:80 items
SwitchMark, Device markers, 18 x 27 mm, grey
-
