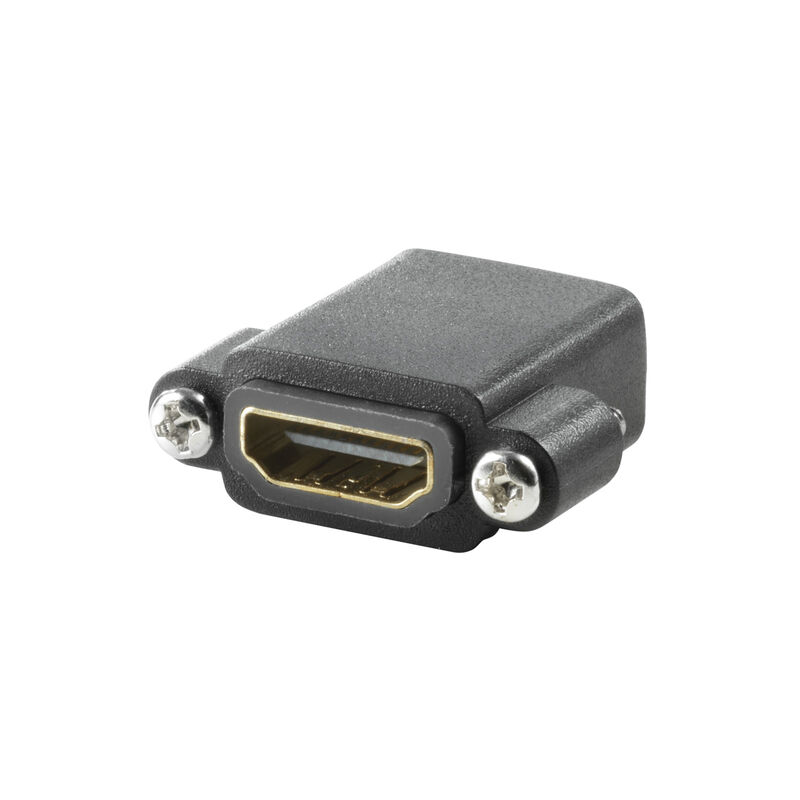

Ominaisuudet
| Version | FrontCom, HDMI coupling, Signal insert HDMI, Socket / socket |
| Order No. | 2003390000 |
| Type | IE-FCI-HDMI-FF |
| GTIN (EAN) | 4050118387414 |
| Qty. | 1 items |
| Net weight | 11 g |
| Operating temperature | -15 °C...50 |
| REACH SVHC | Lead 7439-92-1 |
| Insert type | Signal insert HDMI |
| Product type | HDMI coupling |
| Protection degree | IP20 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_188604) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2003390000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2003390000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2003390000&norm=0) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.0 | 27-44-03-90 |
| ECLASS 9.1 | 27-18-90-90 |
| ECLASS 10.0 | 27-44-03-90 |
| ECLASS 11.0 | 27-44-03-90 |
| ECLASS 12.0 | 27-18-28-92 |
| ECLASS 13.0 | 27-18-28-92 |
| ROHS | Conform |
On lisävaruste
-
Tuotteen tunnus:2003370000VPE:1 items
FrontCom, Insert plate, unshielded, 1 x GFCI, 1 x fuse, 2x Data, 1x Signal
-
Tuotteen tunnus:2003350000VPE:1 items
FrontCom, Insert plate, unshielded, 1x Power, 1x Signal
-
Tuotteen tunnus:2004810000VPE:1 items
FrontCom, Insert plate, shielded, 1 x GFCI, 1 x fuse, 2x Data, 1x Signal
-
Tuotteen tunnus:2003170000VPE:1 items
FrontCom, Double frame, Metal cover, Control knob locking
-
Tuotteen tunnus:2003150000VPE:1 items
FrontCom, Double frame, Metal cover, Lockable with cabinet key (Daimler lock)
-
Tuotteen tunnus:2003180000VPE:1 items
FrontCom, Double frame, Metal cover, Lockable with key
-
Tuotteen tunnus:2003190000VPE:1 items
FrontCom, Double frame, Metal cover, Lockable with cabinet key
