Ominaisuudet

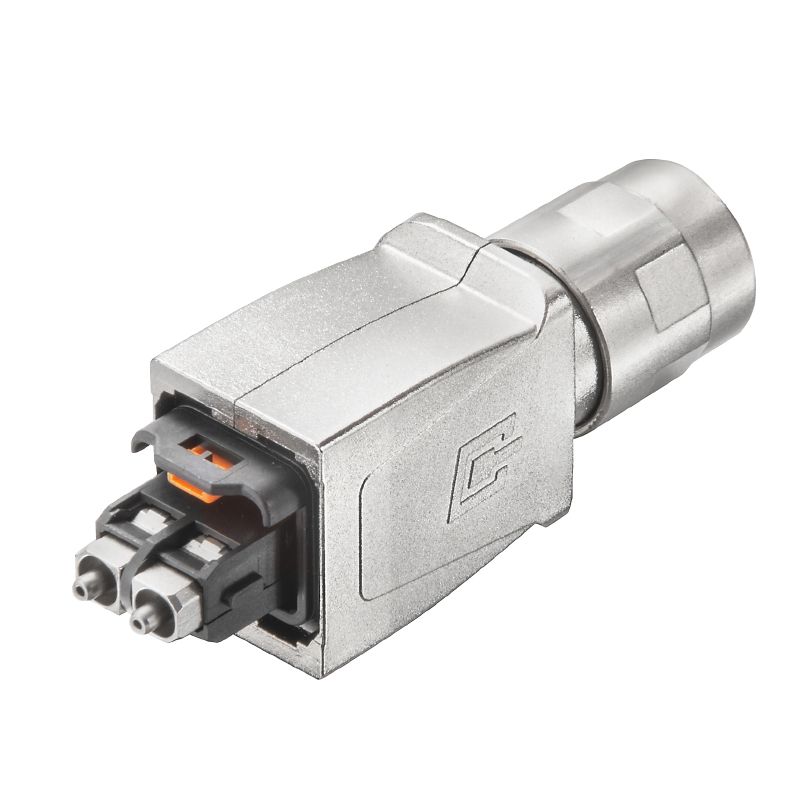

| Version | FO connector, Version 14, SC-RJ POF, reconnectable, IP67 |
| Order No. | 2568260000 |
| Type | IE-PS-V14M-2SC-POF-QA |
| GTIN (EAN) | 4050118578928 |
| Qty. | 10 items |
| Depth | 79,9 mm |
| Depth (inches) | 3,146 inch |
| Height | 26,8 mm |
| Height (inches) | 1,055 inch |
| Width | 22,7 mm |
| Width (inches) | 0,894 inch |
| Net weight | 55,44 g |
| Operating temperature | -40 °C...70 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 4f3aae94-c2bc-4010-b63b-5b114ba6bd55 |
| Connection 1 | SCRJ |
| Connection 2 | Rapid connection system: screwing, cutting |
| Gender | male |
| Housing main material | Zinc diecast |
| Housing style | V14 |
| Outlet direction | Straight |
| Protection degree | IP67 |
| Colour | Miscellaneous |
| Connection 1 | SCRJ |
| Connection 2 | Rapid connection system: screwing, cutting |
| Description of article |
Version 14, SC-RJ POF
reconnectable |
| Fibre type | POF |
| Housing main material | Zinc diecast |
| Housing material, insert |
PA
Zinc diecast |
| Insertion loss | ≤ 1.0 dB |
| Plugging cycles | 750 |
| Protection degree | IP67 |
| Sheath diameter, max. | 10 mm |
| Sheath diameter, min. | 5 mm |
| Connector standard |
IEC 61076-3-117 Var. 14
IEC 61754-24 |
| Approval/Certificate/Document of Conformity | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96050) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2568260000) |
| User Documentation | [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90842) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001122 |
| ETIM 7.0 | EC001122 |
| ETIM 8.0 | EC001122 |
| ETIM 9.0 | EC001122 |
| ECLASS 9.0 | 19-17-01-22 |
| ECLASS 9.1 | 19-17-01-22 |
| ECLASS 10.0 | 19-17-01-22 |
| ECLASS 11.0 | 19-17-01-22 |
| ECLASS 12.0 | 19-17-01-22 |
| ECLASS 13.0 | 19-17-01-22 |
| ROHS | Conform |
