Ominaisuudet

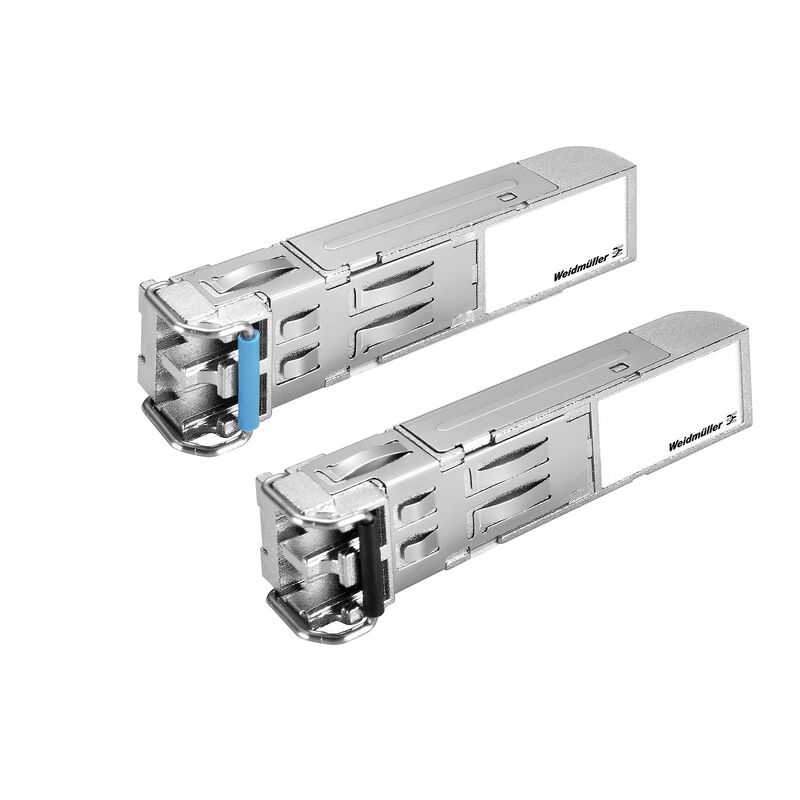

| Version | SFP Transceiver, 1000 Mbps, Singlemode, LC-Duplex, 40 km, -40 °C...85 °C |
| Order No. | 1286730000 |
| Type | IE-SFP-1GLHXLC-T |
| GTIN (EAN) | 4050118077728 |
| Qty. | 1 items |
| Net weight | 25 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7cI |
| REACH SVHC | No SVHC above 0.1 wt% |
| EMC standards |
EN 55032
EN 55035 |
| Safety standard |
UL 62368-1
EN 62368-1 EN 60825-1 |
| Ship use | DNV |
| Humidity | 5 to 95 % (non-condensing) |
| Operating temperature, max. | 85 °C |
| Operating temperature, min. | −40 °C |
| Storage temperature, max. | 85 °C |
| Storage temperature, min. | −40 °C |
| Transmission rate | 1000 Mbps |
| Digital diagnostic monitor function (DDM) | Supported |
| Transceiver type | Singlemode |
| Connector type | LC-Duplex |
| Transmission distance, typ. | 40 km |
| Wavelength |
|
| Receive power |
|
| Transmission power |
|
| Link-budget | 20 dB |
| Note | When connecting a single-mode fiber transceiver over a short distance, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power. |
| Time interval | 3 years |
| Ethernet ports | 1 |
| Plug-in connector | Duplex-LC |
| Voltage supply | 3.3 V (via Ethernet switch) |
| Type of mounting | Insert in SFP slot |
| Approval/Certificate/Document of Conformity |
[DNV certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_74377)
[EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35502) [UK Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_289065) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC003628 |
| ETIM 9.0 | EC003628 |
| ECLASS 9.1 | 27-44-02-92 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 19-17-03-03 |
| ECLASS 12.0 | 19-17-03-03 |
| ECLASS 13.0 | 19-17-03-03 |
| ECLASS 14.0 | 19-17-03-03 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E230683 |
