IE-SW-AL06M-4GTPOE-2GESFP

Lataa tietosivu Samankaltaiset tuotteet

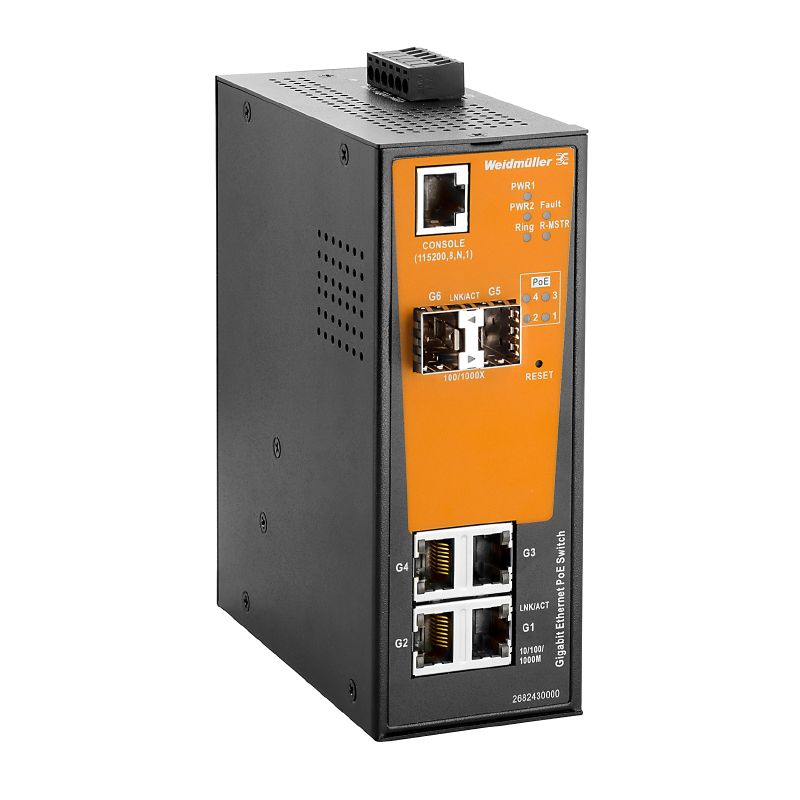

IE-SW-AL06M-4GTPOE-2GESFP

Network switch, managed PoE, Gigabit Ethernet, Number of ports: 4 * RJ45 10/100/1000BaseT(X) PoE+, 2x 100/1000BaseSFP Slot, IP30, -40 °C...75 °C

Tuotteen tunnus 2682430000

Ominaisuudet

General ordering data

Version	Network switch, managed PoE, Gigabit Ethernet, Number of ports: 4 * RJ45 10/100/1000BaseT(X) PoE+, 2x 100/1000BaseSFP Slot, IP30, -40 °C...75 °C
Order No.	2682430000
Type	IE-SW-AL06M-4GTPOE-2GESFP
GTIN (EAN)	4050118692280
Qty.	1 items

Dimensions and weights

Depth	108,5 mm
Depth (inches)	4,272 inch
Height	145,1 mm
Height (inches)	5,713 inch
Width	54,3 mm
Width (inches)	2,138 inch
Net weight	910 g

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...75 °C
Humidity	5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c, 7a, 7cI
REACH SVHC	Lead 7439-92-1 Lead monoxide 1317-36-8
SCIP	9229992a-00b9-4096-8962-200a7f33e289

EMC conformity and approvals

EMC standards	EN 55032 EN 55024 FCC Part 15 Subpart B Class A IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz bis 1 Ghz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0,5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V
Free fall	According to IEC 60068-2-31
Safety standard	UL 61010-1 UL 61010-2-201
Shock	according to IEC 60068-2-27
Vibration	according to IEC 60068-2-6

Environmental conditions

Humidity	5 to 95 % (non-condensing)
Operating altitude	Altitude, max.: 2 000 m Note: in acc. with UL Altitude, max.: 6 000 m Note: for restrictions, see the manufacturer's declaration for operating altitude in section downloads
Operating temperature, max.	75 °C
Operating temperature, min.	−40 °C
Storage temperature, max.	85 °C
Storage temperature, min.	−40 °C

Time interval

5 years

Alarm contact	1 relay output with a current capacity of 1 A at 24 V DC
Console port interface	RS-232 (RJ45 connector)
Fibre-optic ports	100/1000Base SFP Slot
Function reset button	<5 sec: System reboot and set LAN IP to factory Default >5 sec: Factory default Note: behavior of reset button can be configured via web interface
Number of ports	4 * RJ45 10/100/1000BaseT(X) PoE+ 2x 100/1000BaseSFP Slot
RJ45 ports	10/100/1000BaseT(X) auto negotiation Full-/half-duplex mode Auto MDI/MDI-X port

Management features

Device configuration	Webbrowser (HTTP/HTTPS) SNMP v1/v2c/v3 Command Line Interface (Telnet/SSH) Local serial console port (RS-232 via RJ-45 port) Upload of a configuration file via web-interface, TFTP-Server or external backup module
Monitoring function	SNMP v1/v2c/v3 Link Layer Discovery Protocol (LLDP) Ethernet cable diagnostics on RJ-45 ports Port mirroring (local, remote) Port statistics Port monitoring Syslog RMON (Remote monitoring) Event based warning via E-Mail Event based warning via relay Event based warning via SNMP trap
Network redundancy	Spanning Tree Protocol (STP) Rapid Spanning Tree Protocol (RSTP) Multiple Spanning Tree Protocol (MSTP) O-Ring (recovery time <30 ms) O-Chain (recovery time <30 ms) Link Aggregation Control Protocol (LACP) Fast recovery Media Redundancy Protocol (MRP-client)
Network traffic filter	Quality of Service (QoS) Tag based VLAN GVRP (GARP VLAN Registration Protocol) IGMP v2/v3 Traffic Rate Limiting
IP-address management	Static DHCP-Client DHCP-Server (port based, pool-based) DHCP Option 82 DHCP-Relay
Security functions	VLAN segmentation Enable/disable ports TACACS+ and IEEE 802.1X User Authentication DoS/DDoS auto prevention Access Control List DHCP snooping Loop protection Management access security via privilege level configuration for different user roles
Time synchronization management	SNTP server SNTP client
Industrial protocol support	PROFINET device acc. to conformance class B EtherNet/IP Modbus/TCP slave

MTBF	According to Standard: Telcordia SR-332 Operating time (hours), min.: 495 624 h

Power over Ethernet (PoE)

PoE output current	Standard: IEEE 802.3af Output current: 350 mA Standard: IEEE 802.3at Output current: 600 mA
PoE output power	Standard: IEEE 802.3af Output power: 15,4 W Standard: IEEE 802.3at Output power: 30 W
PoE pin assignment	Mode A: Pin 1, 2 (V+); Pin 3, 6 (V-); Alternative A; MDI
Total PoE power budget	Voltage type: DC Voltage, min.: 12 V Voltage, max.: 23,9 V Power budget: 60 W Voltage type: DC Voltage, min.: 24 V Voltage, max.: 57 V Power budget: 120 W

Connection type	1 removable 6-pin terminal block
Current consumption	Voltage: 12 V Current: 6,6 A Voltage: 24 V Current: 5,68 A Voltage: 48 V Current: 2,76 A
Overload current protection	Yes
Reverse polarity protection	Yes
Voltage supply	12/24/48 V DC 2 redundant inputs
Voltage supply range	Voltage type: DC Voltage, min.: 12 V Voltage, max.: 57 V

Switch characteristics

Bandwidth backplane	12 Gbit/s
Jumbo frame support	up to 9.6 KB
MAC table size	8 K
Max. number of available VLANs	4096
Number of IGMP-Groups per VLAN	256
Packet buffer size	4 Mbit
Priority queues	8
VLAN-ID max	4095
VLAN-ID min	1

Housing main material	Metal
Protection degree	IP30
Speed	Gigabit Ethernet
Switch	managed PoE
Type of mounting	DIN rail

Data switching	Store and Forward
Flow control	IEEE 802.3x flow control
Standard	IEEE 802.3 for 10BASE-T IEEE 802.3u for 100BASE-TX and 100BASE-FX IEEE 802.1p for Class of Service / Quality of Service (CoS/QoS) IEEE 802.1Q for VLAN tagging IEEE 802.1X for authentication IEEE 802.1AB for Link Layer Discovery protocol (LLDP) IEEE 802.3ab for 1000BASE-T IEEE 802.3z for 1000BASE-X IEEE 802.3x for flow control IEEE 802.3ad for port trunk with LACP IEEE 802.3at/af for Power-over-Ethernet IEEE 802.1D for the Spanning Tree protocol IEEE 802.1w for Rapid STP IEEE 802.1s for the Multiple Spanning Tree Protocol (MSTP)

Approval/Certificate/Document of Conformity	[PNO Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_274105) [RCM Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_245011) [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_245511) [UK Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253604) [Manufacturer's declaration for operating altitude](https://mdcop.weidmueller.com/mediadelivery/asset/900_263602)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_225374)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2682430000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2682430000)
Product Change Notification	[Firmware Release Notes](https://mdcop.weidmueller.com/mediadelivery/asset/900_253984)
Software	[Device description -- SNMP private MIB](https://mdcop.weidmueller.com/mediadelivery/asset/900_237006) [Firmware -- Current Firmware](https://mdcop.weidmueller.com/mediadelivery/asset/900_245747) [Device description -- GSDML file](https://mdcop.weidmueller.com/mediadelivery/asset/900_249012) [Device description -- EDS file](https://mdcop.weidmueller.com/mediadelivery/asset/900_250647)
User Documentation	[Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_236989) [User manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_245690) [Application notes -- Security Data Sheet Full Gigabit Ethernet Advanced Line Switches](https://mdcop.weidmueller.com/mediadelivery/asset/900_322869) [Application notes -- Industrial Product Security Guideline](https://mdcop.weidmueller.com/mediadelivery/asset/900_322935)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000734
ETIM 7.0	EC000734
ETIM 8.0	EC000734
ETIM 9.0	EC000734
ECLASS 9.0	19-17-01-06
ECLASS 9.1	19-17-01-06
ECLASS 10.0	19-17-04-01
ECLASS 11.0	19-17-04-01
ECLASS 12.0	19-17-04-01
ECLASS 13.0	19-17-04-01
ECLASS 14.0	19-17-04-01

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E141197
