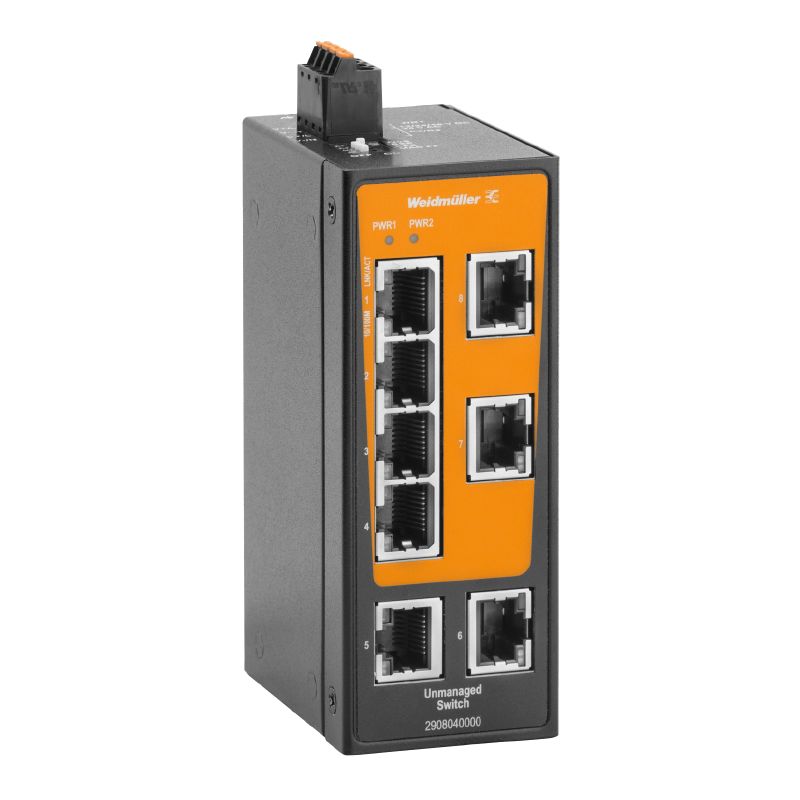

IE-SW-BLB-08-8TX

IE-SW-BLB-08-8TX

Network switch, unmanaged, Fast Ethernet, Number of ports: 8x RJ45, IP30, -40 °C...75 °C

Item No. 2908040000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 2 Spare parts 1 Related products 17
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance EMC conformity and approvals Environmental conditions Guarantee Interfaces Management features MTBF Power supply Switch characteristics Technical data Technology Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197
Certificate no. (cULusEX)
E223527

General ordering data

버전
Network switch, unmanaged, Fast Ethernet, Number of ports: 8x RJ45, IP30, -40 °C...75 °C
주문 번호
2908040000
유형
IE-SW-BLB-08-8TX
GTIN(EAN)
4099986847972
Qty.
1 items

Dimensions and weights

깊이
70 mm
Depth (inches)
2.756 inch
높이
114 mm
Height (inches)
4.488 inch
너비
44 mm
Width (inches)
1.732 inch
Net weight
353 g

Temperatures

보관 온도
-40 °C...85 °C
작동 온도
-40 °C...75 °C
Humidity
5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
Lead monoxide 1317-36-8
SCIP
aa4e94ed-b5d0-4245-91e3-1adf29647214

EMC conformity and approvals

EMC 표준
EN IEC 61000-6-2
EN IEC 61000-6-4
FCC Part 15 Subpart B Class A
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 Ghz: 10 V/m
IEC 61000-4-3 RS: 1.4 GHz to 6 Ghz: 3 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 Vrms
IEC 61000-4-8 PFMF: 30 A/m
안전 표준
UL 61010-1
UL 61010-2-201
자유 낙하
According to IEC 60068-2-31
진동
according to IEC 60068-2-6
충격
according to IEC 60068-2-27
폭발 위험 구역
EN IEC 60079-0
EN IEC 60079-7
UL/cUL, Class I, Division 2, Groups A, B, C and D
ATEX Zone 2 Ex ec IIC T4 Gc
해상 승인
ABS
BV
DNV
LR
RINA

Environmental conditions

보관 온도, 최대
85 °C
보관 온도, 최소
-40 °C
습도
5 to 95 % (non-condensing)
작동 고도
  • Altitude, max.:
    2,000 m
  • Note:
    in acc. with UL
  • Altitude, max.:
    6,000 m
  • Note:
    for restrictions, see the manufacturer's declaration for operating altitude in section downloads
작동 온도, 최대
75 °C
작동 온도, 최소
-40 °C

Guarantee

Time interval
5 years

Interfaces

DIP 스위치 기능
QoS (on/off)
Broadcast storm protection enable/disable
MAC frame filtering (on/off)
Activate/deactivate IEEE 802.3az energy-efficient Ethernet
LED 표시기
Power LED: PWR1, PWR2
Port LED: LNK/ACT, 10/100M (RJ45 port)
Power LED: PWR FLT
RJ45 포트
10/100BaseT(X)
auto negotiation
Full-/half-duplex mode
Auto MDI/MDI-X port
포트 수
8x RJ45

Management features

Network traffic filter
Quality of Service (QoS)
Class of Service (CoS)
Type of Service (ToS)
Differentiated Services Code Point (DSCP)
MAC frame filtering (LLDP frame blocking)
Industrial protocol support
PROFINET device acc. to conformance class A

MTBF

MTBF
  • According to Standard:
    Telcordia SR-332
  • Operating time (hours), min.:
    1,314,643 h
  • Input voltage:
    24 V
  • According to Standard:
    Telcordia SR-332

Power supply

결선 유형
1 removable 4-pin terminal block
공급 전압
12/24/48 V DC
2 redundant inputs
과부하 전류 보호
Yes
역극성 보호
Yes
전류 소비량
0.08 A
전류 소비량
  • Voltage:
    24 V
  • Current:
    0.06 A
  • Voltage type:
    DC
전압 공급 범위
  • Voltage type:
    DC
  • Voltage, min.:
    9 V
  • Voltage, max.:
    60 V
  • Voltage type:
    AC
  • Voltage, min.:
    18 V
  • Voltage, max.:
    30 V

Switch characteristics

MAC 테이블 크기
2 K
대역폭 백플레인
1.6 Gbit/s
우선 순위 대기열
4
패킷 버퍼 크기
768 kbit

Technical data

보호 등급
IP30
속도
Fast Ethernet
스위치
unmanaged
장착 유형
DIN rail
하우징 기본 재질
Metal

Technology

데이터 스위칭
Store and Forward
표준
IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX
IEEE 802.3x for flow control
IEEE 802.3az Energy-Efficient Ethernet
IEEE 802.1p for Class of Service / Quality of Service (CoS/QoS)
흐름 제어
IEEE 802.3x flow control

Classifications

ETIM 8.0
EC000734
ETIM 9.0
EC000734
ETIM 10.0
EC000734
ECLASS 14.0
19-17-04-02
ECLASS 15.0
19-17-04-02
