IE-SW-EL10-8GTPOE-2GESFP

Lataa tietosivu Samankaltaiset tuotteet

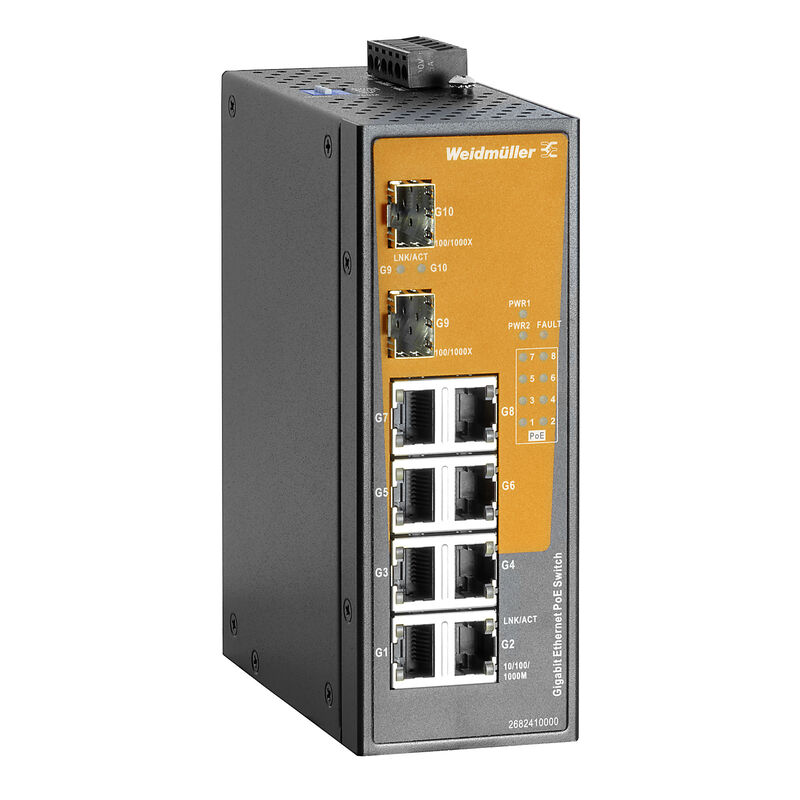

IE-SW-EL10-8GTPOE-2GESFP

Network switch, unmanaged PoE, Gigabit Ethernet, Number of ports: 8x RJ45 10/100/1000 BaseT(X) PoE+, 2x 100/1000BaseSFP Slot, IP30, -40 °C...75 °C

Tuotteen tunnus 2682410000

Ominaisuudet

General ordering data

Version	Network switch, unmanaged PoE, Gigabit Ethernet, Number of ports: 8x RJ45 10/100/1000 BaseT(X) PoE+, 2x 100/1000BaseSFP Slot, IP30, -40 °C...75 °C
Order No.	2682410000
Type	IE-SW-EL10-8GTPOE-2GESFP
GTIN (EAN)	4050118692303
Qty.	1 items

Dimensions and weights

Depth	108,3 mm
Depth (inches)	4,264 inch
Height	145,1 mm
Height (inches)	5,713 inch
Width	54,3 mm
Width (inches)	2,138 inch
Net weight	969 g

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...75 °C
Humidity	5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c, 7a, 7cI
REACH SVHC	Lead 7439-92-1 Lead monoxide 1317-36-8
SCIP	9229992a-00b9-4096-8962-200a7f33e289

EMC conformity and approvals

EMC standards	EN 55032 CISPR 32 FCC Part 15 Subpart B Class A IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz bis 1 Ghz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0,5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 Vrms EN 55035
Free fall	According to IEC 60068-2-31
Safety standard	UL 61010-1 UL 61010-2-201
Shock	according to IEC 60068-2-27
Vibration	according to IEC 60068-2-6

Environmental conditions

Humidity	5 to 95 % (non-condensing)
Operating altitude	Altitude, max.: 2 000 m Note: in acc. with UL Altitude, max.: 6 000 m Note: for restrictions, see the manufacturer's declaration for operating altitude in section downloads
Operating temperature, max.	75 °C
Operating temperature, min.	−40 °C
Storage temperature, max.	85 °C
Storage temperature, min.	−40 °C

Time interval

5 years

Fibre-optic ports	100/1000Base SFP Slot
Function DIP switch	2x for enabling/disabling power fault alarm via relay 2x for switching between 100BaseSFP and 1000BaseSFP on SFP port
LED indicator	Power LED: PWR1, PWR2 FAULT Port LED: LNK/ACT, PoE active
Number of ports	8x RJ45 10/100/1000 BaseT(X) PoE+ 2x 100/1000BaseSFP Slot
RJ45 ports	10/100/1000BaseT(X) auto negotiation Full-/half-duplex mode Auto MDI/MDI-X port
Signalling contact	1 relay output with a current capacity of 1 A at 24 V DC

MTBF	According to Standard: Telcordia SR-332 Operating time (hours), min.: 537 330 h

Power over Ethernet (PoE)

PoE output current	Standard: IEEE 802.3af Output current: 350 mA Standard: IEEE 802.3at Output current: 600 mA
PoE output power	Standard: IEEE 802.3af Output power: 15,4 W Standard: IEEE 802.3at Output power: 30 W
PoE pin assignment	Mode A: Pin 1, 2 (V+); Pin 3, 6 (V-); Alternative A; MDI
Total PoE power budget	Voltage, min.: 12 V Voltage, max.: 23,9 V Power budget: 60 W Voltage, min.: 24 V Voltage, max.: 57 V Power budget: 120 W

Connection type	1 removable 6-pin terminal block
Current consumption	Voltage: 12 V Current: 5,43 A Voltage: 24 V Current: 6,01 A Voltage: 48 V Current: 2,88 A
Overload current protection	Yes
Reverse polarity protection	Yes
Voltage supply	12/24/48 V DC 2 redundant inputs
Voltage supply range	Voltage type: DC Voltage, min.: 12 V Voltage, max.: 57 V

Switch characteristics

Bandwidth backplane	20 Gbit/s
Jumbo frame support	up to 9.6 KB
MAC table size	8 K
Packet buffer size	4 Mbit

Housing main material	Metal
Protection degree	IP30
Speed	Gigabit Ethernet
Switch	unmanaged PoE
Type of mounting	DIN rail

Data switching	Store and Forward
Flow control	IEEE 802.3x flow control
Standard	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control IEEE 802.3at/af for Power-over-Ethernet

Approval/Certificate/Document of Conformity	[EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_96882) [RCM Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165507) [UK Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253774) [Manufacturer's declaration for operating altitude](https://mdcop.weidmueller.com/mediadelivery/asset/900_263602)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212205)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2682410000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2682410000)
User Documentation	[Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_96888) [Application notes -- Industrial Product Security Guideline](https://mdcop.weidmueller.com/mediadelivery/asset/900_322935)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000734
ETIM 7.0	EC000734
ETIM 8.0	EC000734
ETIM 9.0	EC000734
ECLASS 9.0	19-17-01-06
ECLASS 9.1	19-17-01-06
ECLASS 10.0	19-17-04-10
ECLASS 11.0	19-17-04-10
ECLASS 12.0	19-17-04-10
ECLASS 13.0	19-17-04-10
ECLASS 14.0	19-17-04-10

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E141197
