Ominaisuudet

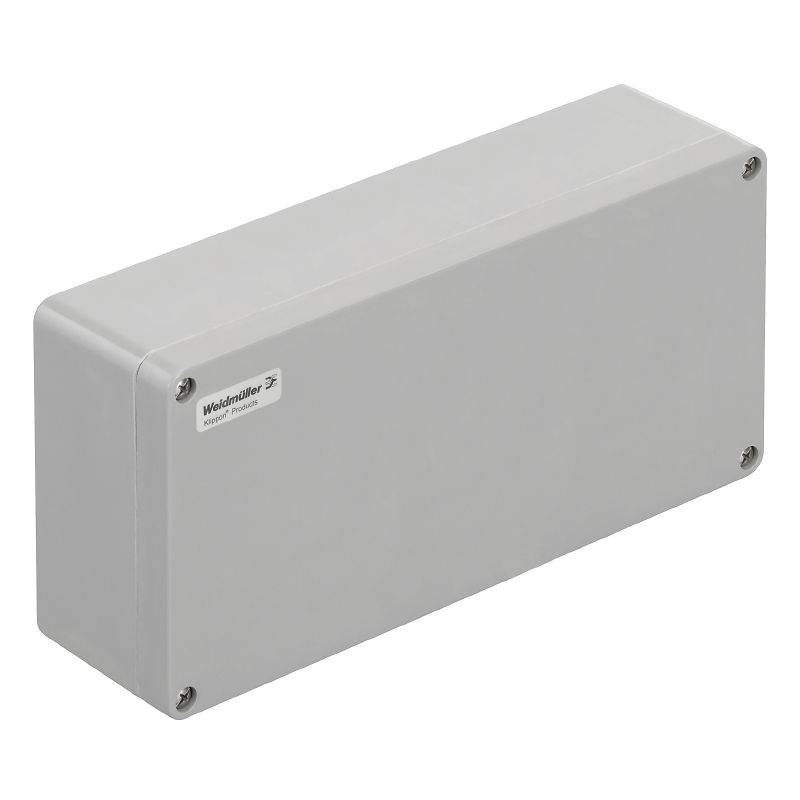

| Version | Klippon POK (polyester empty enclosure), Empty enclosure, Height: 160 mm, Width: 360 mm, Depth: 90 mm, Material: Glass fibre-reinforced polyester, untreated, polished, Silver grey |
| Order No. | 1305910000 |
| Type | KLIPPON POK 163609 |
| GTIN (EAN) | 4050118108231 |
| Qty. | 1 items |
| Depth | 90 mm |
| Depth (inches) | 3,543 inch |
| Height | 160 mm |
| Height (inches) | 6,299 inch |
| Height of lowest version | 90 mm |
| Width | 360 mm |
| Width (inches) | 14,173 inch |

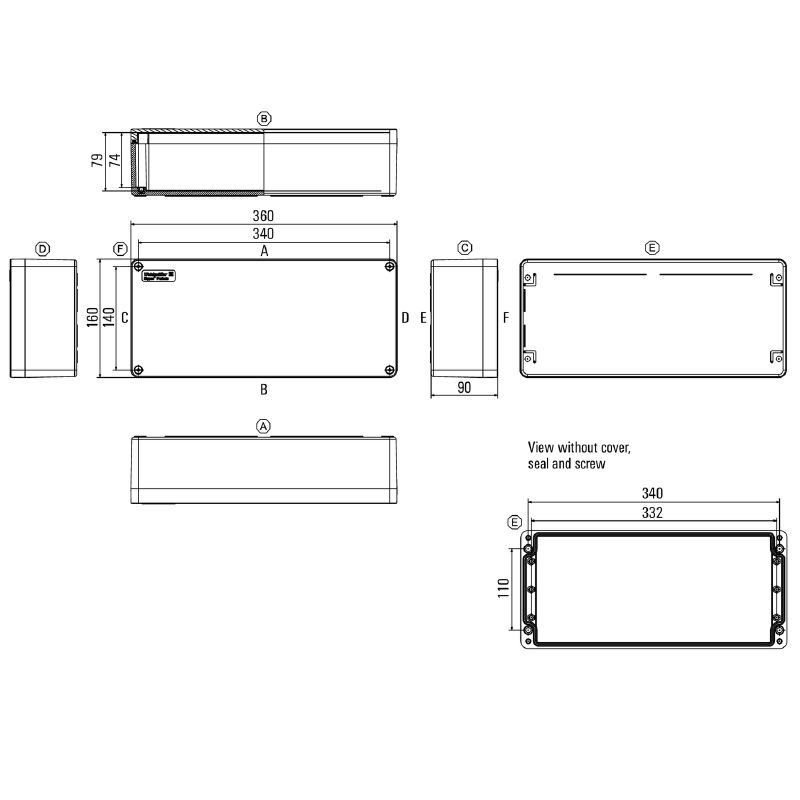

| Mounting dimension - height | 110 mm |
| Mounting dimension - width | 340 mm |
| Net weight | 2 210 g |
| Operating temperature | -40 °C...100 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | afb385d0-c52b-4449-8502-203596817ab0 |
| M12 | 11 |
| M16 | 6 |
| M20 | 4 |
| M25 | 2 |
| M32 | 2 |
| M40 | 1 |
| M12 | 11 |
| M16 | 6 |
| M20 | 4 |
| M25 | 2 |
| M32 | 2 |
| M40 | 1 |
| M12 | 45 |
| M16 | 36 |
| M20 | 20 |
| M25 | 8 |
| M32 | 6 |
| M40 | 5 |
| Approval conditions |
cULus
LR DNV |
| Certificate no. (cULus) | E256877 |
| Certificate No. (DNV) | TAE00002R2 |
| Declaration of Conformatiy No. (DoC LVD) | DE PS2401 160412 001ISS02 |
| Access opening: height | 148,02 mm |
| Access opening: width | 348,02 mm |
| Areas of use |
Harbour facilities
Machine construction Process industry Transportation |
| Enclosure attachment |
Installation through the housing rear wall
Fixing lugs |
| Flange plate | No |
| Impact resistance | 5 J version standard |
| Lid | Yes |
| Lid attachment | Slotted/Phillips screws |
| Material | Glass fibre-reinforced polyester |
| Material thickness of cover | 5 mm |
| Material thickness of enclosure | 5,99 mm |
| Max. payload | 23,04 kg |
| Number of lid screws | 4 |
| Operating temperature, max. | 100 °C |
| Operating temperature, min. | −40 °C |
| Protection class (UL) |
Type 4
Type 4X |
| Protection degree | IP66 |
| Seal material | Chloroprene |
| Standards |
DIN EN 62208 - Empty enclosure standard
DIN 4102-12 |
| Surface finish |
untreated
polished |
| Torque for lid screws | 2,5 Nm |
| UL 94 flammability rating | V-0 |
| WDU 10 / ZDU 10 | 1x29 |
| WDU 16 / ZDU 16 | 1x24 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x56 |
| WDU 4 / ZDU 4 | 1x47 |
| WDU 6 / ZDU 6 | 1x36 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | * |
| WDU 4 / ZDU 4 | * |
| Product information | The fire rating up to E60 acc. to DIN 4102-12 depends on concrete configurations / installations (details see “Declaration of Manufacturer” in “Downloads”) |
| Approval/Certificate/Document of Conformity |
[14_20001](https://mdcop.weidmueller.com/mediadelivery/asset/900_157728)
[TAE00002R2](https://mdcop.weidmueller.com/mediadelivery/asset/900_157729) [MPA NRW Certificate - fire rated assembled boxes acc. to DIN 4102-12](https://mdcop.weidmueller.com/mediadelivery/asset/900_207499) [EU Declaration of Conformity - Klippon POK Empty Enclosures IND - DoC DE PS2401 160412 001ISS02](https://mdcop.weidmueller.com/mediadelivery/asset/900_40373) [UKCA Declaration of Conformity - Klippon POK Empty Enclosures IND - UKCA DE PS2401 220623 000ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_319949) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54074) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1305910000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1305910000) |
| Tender specification |
[Klippon POK 163609_1305910000_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_56626)
[Klippon POK 163609_1305910000_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_56651) |
| User Documentation | [Assembly guidelines - empty enclosures](https://mdcop.weidmueller.com/mediadelivery/asset/900_40376) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB KLIPPON ENCL.TECN EN](http://download.weidmueller.com/asset/download/file/39472)
[FL KLIPPON POK EN](http://download.weidmueller.com/asset/download/file/38243) [FL SHIPBUILDING 2016 EN](http://download.weidmueller.com/asset/download/file/38172) [FL SHIPBUILDING 2016 EN](http://download.weidmueller.com/asset/download/file/38172) |
| ETIM 6.0 | EC000261 |
| ETIM 7.0 | EC000261 |
| ETIM 8.0 | EC000261 |
| ETIM 9.0 | EC000261 |
| ECLASS 9.0 | 27-18-01-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-01-01 |
| ECLASS 11.0 | 27-18-01-01 |
| ECLASS 12.0 | 27-18-01-01 |
| ECLASS 13.0 | 27-18-01-01 |
| ECLASS 14.0 | 27-18-01-01 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E256877 |
