Ominaisuudet
| Version | Diagonal-cutting pliers |
| Order No. | 9046420000 |
| Type | KSE 200 |
| GTIN (EAN) | 4032248357758 |
| Qty. | 1 items |
| Width | 200 mm |
| Width (inches) | 7,874 inch |
| Net weight | 288 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | b28ab223-64ec-44cf-adb0-4dd6ebcae141 |

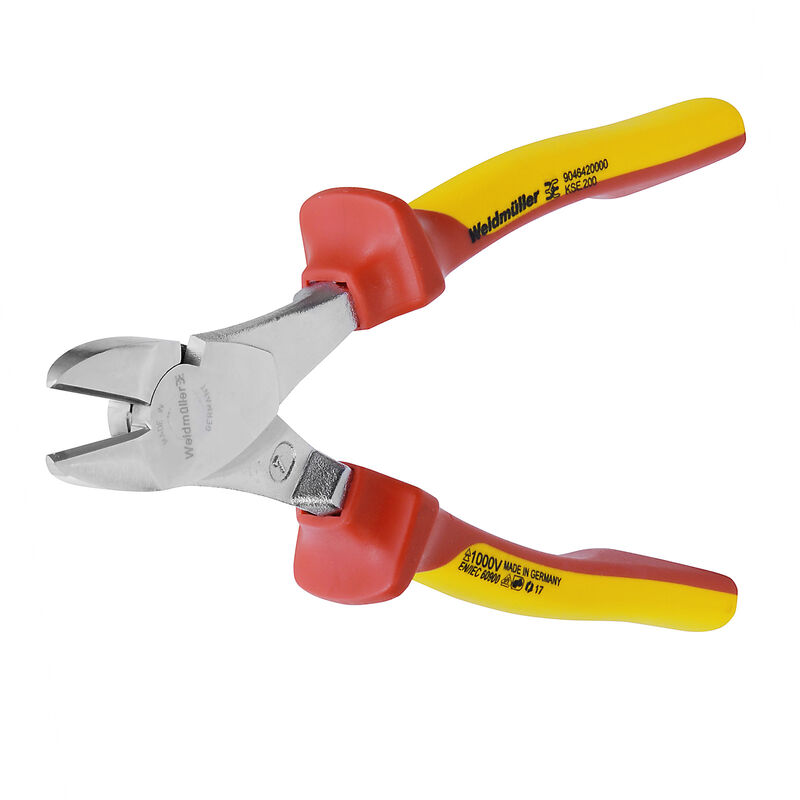

| Description of article | VDE-insulated heavy-duty diagonal-cutting pliers, 200 mm long |
| Conductor diameter, max. (H) | 3 mm |
| Conductor diameter, max. (MH) | 4,2 mm |
| Conductor diameter, max. (P) | 2,5 mm |
| Cutter hardness | 64 HRC |
| Protective insulation, 1000 V | Yes |
| Shape (diagonal-cutting pliers) | Heavy-duty diagonal-cutting pliers |
| Total length | 200 mm |
| Approval/Certificate/Document of Conformity | [Manufacturer's Declaration - Pliers](https://mdcop.weidmueller.com/mediadelivery/asset/900_52748) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000142 |
| ETIM 7.0 | EC000142 |
| ETIM 8.0 | EC000142 |
| ETIM 9.0 | EC000142 |
| ECLASS 9.0 | 21-04-47-01 |
| ECLASS 9.1 | 21-04-37-06 |
| ECLASS 10.0 | 21-04-47-01 |
| ECLASS 11.0 | 21-04-47-01 |
| ECLASS 12.0 | 21-04-47-01 |
| ECLASS 13.0 | 21-04-47-01 |
| Approvals |  |
