MCZ SC 0-10V

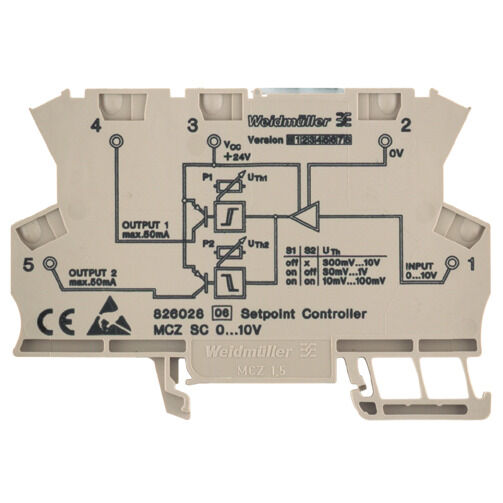

Product image
MCZ SC 0-10V
Connection diagram
MCZ SC 0-10V
Dimensioned drawing
dimensions
MCZ SC 0-10V

MCZ SC 0-10V

Limit value monitoring, Input : 0-10 V, Output 2 x transistor

Tuotteen tunnus 8260280000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 7 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Input Output General data Insulation coordination Connection data Classifications Tender specification sheets

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E141197

General ordering data

Version
Limit value monitoring, Input : 0-10 V, Output 2 x transistor
Order No.
8260280000
Type
MCZ SC 0-10V
GTIN (EAN)
4008190985417
Qty.
10 items

Dimensions and weights

Depth
63,2 mm
Depth (inches)
2,488 inch
Height
15 mm
Height (inches)
0,591 inch
Width
6 mm
Width (inches)
0,236 inch
Length
91 mm
Length (inches)
3,583 inch
Net weight
29,6 g

Temperatures

Storage temperature
-25 °C...60 °C
Operating temperature
-20 °C...60 °C
Humidity at operating temperature
0...95 % (no condensation)

Probability of failure

SIL in compliance with IEC 61508
None
MTTF
681 a

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
35d83707-6a3b-45b5-b9f8-6ba8184c863e

Input

Input current
0.5...20 mA
Input resistance, current
50 Ω
Voltage drop
1 V

Output

Cut-off frequency (-3 dB)
100 Hz
Number of outputs
2

General data

Configuration
Potentiometer
Current consumption
15 mA
Mounting rail
TS 35
Nominal power consumption
1,5 VA
Protection degree
IP20
Step response time
<250 µs (switching threshold at 90% of
max. input signal; RI ≤ 1 kΩ)
Supply voltage
24 V DC ± 20 %
Temperature coefficient
± 250 ppm/K
350 ppm/K

Insulation coordination

EMC standards
EN 55011
EN 61000-6
Galvanic isolation
between input ⁄ output ⁄ supply ⁄ relay

Connection data

Type of connection
Tension-clamp connection
Clamping range, rated connection
1,5 mm²
Clamping range, min.
0,5 mm²
Clamping range, max.
1,5 mm²

Classifications

ETIM 6.0
EC002654
ETIM 7.0
EC002654
ETIM 8.0
EC002654
ETIM 9.0
EC002654
ETIM 10.0
EC002654
ECLASS 9.0
27-21-01-22
ECLASS 9.1
27-21-01-22
ECLASS 10.0
27-21-01-22
ECLASS 11.0
27-21-01-22
ECLASS 12.0
27-21-01-22
ECLASS 13.0
27-21-01-22
ECLASS 14.0
27-21-01-22
ECLASS 15.0
27-21-01-22

Tender specification sheets

Long specification

Trip amplifier for monitoring a 0...10 V standard signal with two switching outputs
Trip amplifier in 6 mm width for analogue 0...10 V standard signals with two PNP-transistor switch outputs
for monitoring an upper and lower threshold (adjustable via potentiometer).
DIP switches can be used to select a range of 300 mV to 10 V, 30 mV to 1 V, and 10 mV to 100 mV on the input side.

Add-on housing for TS35 rail mounting
Dimensions: L/W/H 91/ 6/ 63.2 mm
Tension-clamp connection / Nominal cross-section 1.5 mm2
Protection degree: IP 20

Input                             0...10 V
                                          ranges 300 mV...10 V / 30 mV...1 V / 10 mV...100 mV
Output                                                 Double switching output PNP/ 50 mA per channel
                                          adjustable via potentiometer
Switching hysteresis 1 % of input
Step response time           < 250 us (10...90 %)
Temperature coefficient       < 250 ppm K
Auxiliary power                                         24 V DC +/- 20 %
Ambient
temperature range 0°C...+50 °C

Isolation                                    1.5 kV
Approvals cURus, CSA




Type                                                                MCZ SC 0-10V




Short specification

Trip amplifier for monitoring a 0...10 V standard signal with two switching outputs
Trip amplifier in 6 mm width for analogue 0...10 V standard signals with two PNP-transistor switch outputs
for monitoring an upper and lower threshold (adjustable via potentiometer).
DIP switches can be used to select a range of 300 mV to 10 V, 30 mV to 1 V, and 10 mV to 100 mV on the input side.
