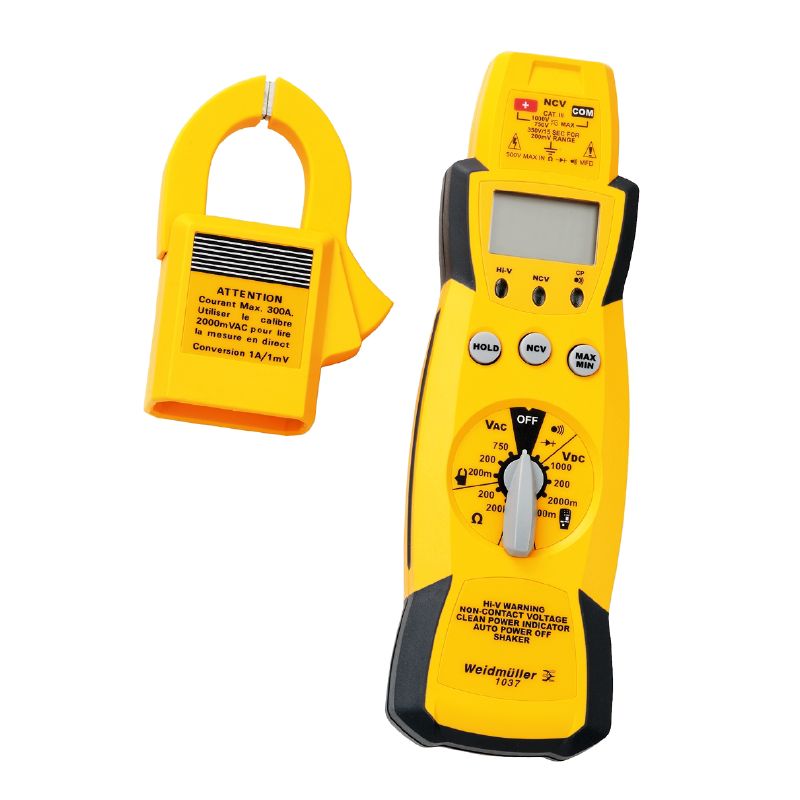

MULTIMETER 1037
MULTIMETER 1037
Example of use

MULTIMETER 1037

Testing tools, Multimeter

Product ID 9423580000
Gegevensblad downloaden Product Downloads
Toebehoren 2 Verwante producten 7
General ordering data Dimensions and weights Environmental Product Compliance Technical data Measuring and testing devices Classifications Approvals

General ordering data

Version
Testing tools, Multimeter
Order No.
9423580000
Type
MULTIMETER 1037
GTIN (EAN)
4032248406142
Qty.
1  items

Dimensions and weights

Depth
66  mm
Depth (inches)
2,598  inch
Height
44  mm
Height (inches)
1,732  inch
Width
214,5  mm
Width (inches)
8,445  inch
Net weight
880  g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1

Technical data

Description of article
Digital multimeter
Version
Multimeter + clamp-on meter

Measuring and testing devices

AC voltage measuring range
0.2 - 750 V
Battery type
9V block battery
DC voltage measuring range
0,2 - 1000 V
Display
digital
Frequency measurement
No
Frequency range, max.
500  Hz
Frequency range, min.
50  Hz
Measured capacitance value, max.
200  µF
Measured current value, max.
200  A
Measuring range category
CAT III
Opening width of current-measuring clamp-on attachment
23  mm
Resistance measuring range, max.
200  kΩ
Resistance measuring range, min.
0,2  Ω
Selection of measuring range
Manual
Test probe
Yes
Tested and approved according to
EN/IEC 61010-1
Working temperature, max.
50  °C
Working temperature, min.
0  °C

Classifications

ETIM 6.0
EC000069
ETIM 7.0
EC000069
ETIM 8.0
EC000069
ETIM 9.0
EC000069
ETIM 10.0
EC000069
ECLASS 9.0
27-20-03-01
ECLASS 9.1
27-20-03-08
ECLASS 10.0
27-20-03-01
ECLASS 11.0
27-20-03-01
ECLASS 12.0
27-20-03-01
ECLASS 13.0
27-20-03-01
ECLASS 14.0
27-20-03-01
ECLASS 15.0
27-20-03-01

Approvals

ROHS
Conform
