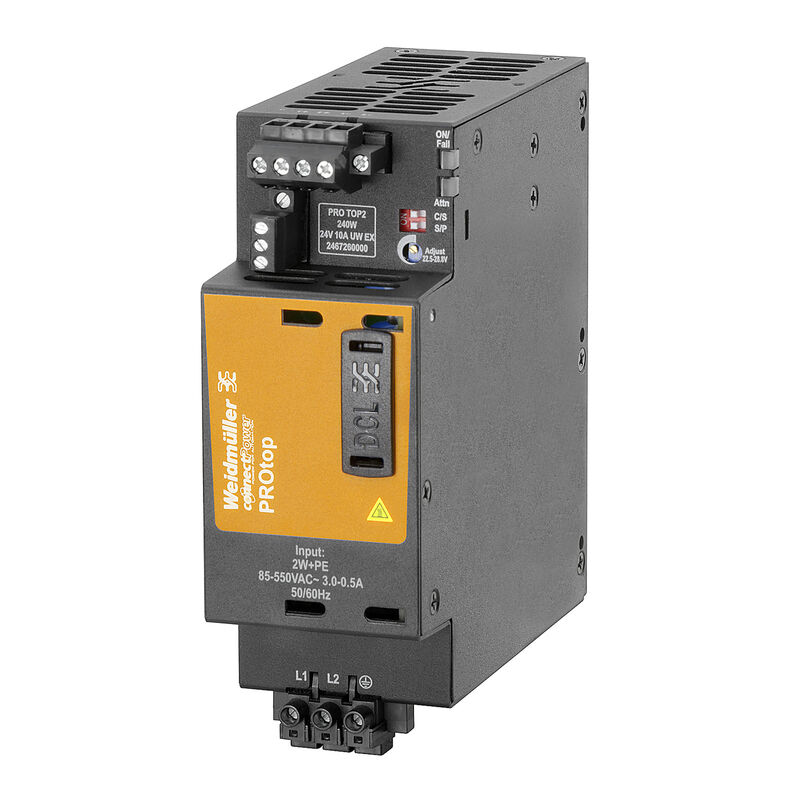

PRO TOP2 240W 24V 10A UW EX

Power supply, switch-mode power supply unit, 24 V

Tuotteen tunnus 2467260000

Ominaisuudet

General ordering data

Version	Power supply, switch-mode power supply unit, 24 V
Order No.	2467260000
Type	PRO TOP2 240W 24V 10A UW EX
GTIN (EAN)	4050118482164
Qty.	1 items

Dimensions and weights

Depth	125 mm
Depth (inches)	4,921 inch
Height	130 mm
Height (inches)	5,118 inch
Width	50 mm
Width (inches)	1,968 inch
Net weight	1 060 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...75 °C
Humidity at operating temperature	5...95 %, no condensation

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c, 7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	6d8cdf22-8230-4af8-86c8-3558c716666d

Input

AC input voltage range	85...550 V AC
Connection system	Clamping yoke
Current consumption in relation to the input voltage	Voltage type: AC Input voltage: 85 V Input current: 3,6 A
DC input voltage range	90...800 V DC
Frequency range AC	45…65 Hz
Input fuse (internal)	Yes
Inrush current	Max. 10 A
Nominal power consumption	262,3 VA
Rated input voltage	100 - 500 V AC / 120 - 500 V DC
Recommended back-up fuse	5 A, DI / 6 A, Char. B / 6 A, Char C
Surge protection	Varistor

Output

Connection system	Clamping yoke connection
DCL - peak load reserve	Boost duration: 15 ms Multiple of the rated current: 600 %
Mains failure bridge-over time	Mains failure bridge-over time, min.: 20 ms Input voltage type: AC Input voltage: 110 V Output current: 10 A Output voltage: 24 V
Nominal output current for U_nom	10 A @ 60 °C
Output power	240 W
Output voltage, max.	28,8 V
Output voltage, min.	22,5 V
Output voltage, note	adjustable with potentiometer or comunication module
Parallel connection option	Yes, for redundancy and power increase (with ORing MOSFET)
Protection against inverse voltage	Yes
Ramp-up time	≤ 100 ms
Rated output voltage	24 V DC ± 1 %
Residual ripple, breaking spikes	<50 mVss @ U_Nenn, Full Load

General data

Conformal coating	Yes
Degree of efficiency	91.5%
Derating	> 60°C (2.5% / 1°C)
Earth leakage current, max.	3,5 mA
Housing version	Metal, corrosion resistant
MTBF	According to Standard: SN 29500 Operating time (hours), min.: 1 399 000 h Ambient temperature: 25 °C Input voltage: 230 V Output power: 240 W Duty cycle: 100 % According to Standard: SN 29500 Operating time (hours), min.: 642 700 h Ambient temperature: 40 °C Input voltage: 230 V Output power: 240 W Duty cycle: 100 %
Power factor	Power factor typical: 0.75 Input voltage: 400 V Ambient temperature: 25 °C Output power: 120 W
Power loss, idling	5 W
Power loss, nominal load	18,1 W
Protection degree	IP20
Surge voltage category	II III

EMC / shock / vibration

Interference immunity test acc. to	EN 55032:2015 EN 61000-3-2:2019 IEC 61000-4-4:2012 IEC 61000-4-5:2014 IEC 61000-4-6:2013 IEC 61000-4-8:2009 IEC 61000-4-11:2004 EN 61000-6-3:2007/A1:2011 EN 61000-6-4:2007/A1:2011 EN 61000-3-3:2013+A1:2019 EN 55035:2017 EN 61000-6-1:2019 EN 61000-6-2:2019 IEC 61000-4-2:2008 IEC 61000-4-3:2006+A1:2007+A2:2010
Noise emission in accordance with EN55032	Class B
Shock resistance IEC 60068-2-27	30 g in all directions
Vibration resistance IEC 60068-2-6	2.3 g (on DIN rail) 4 g (with direct mounting)

Insulation coordination

Insulation voltage input / earth	3,2 kV
Insulation voltage output / earth	0,5 kV
Insulation voltage, input/output	3,5 kV
Pollution severity	2
Protection class	I, with PE connection
Surge voltage category	II III

Electrical safety (applied standards)

Electrical machine equipment	Acc. to EN60335-1
For use with electronic equipment	Acc. to EN50178
Protection against dangerous shock currents	Acc. to VDE0106-101
Protective separation / protection against electrical shock	VDE0100-410 / acc. to DIN57100-410
Safety extra-low voltage	SELV acc. to IEC 60950-1 PELV according to EN 60204-1
Safety transformers for switch-mode power supplies	According to EN 61558-2-17

Connection data (input)

Conductor cross-section, AWG/kcmil , max.	12 AWG
Conductor cross-section, AWG/kcmil , min.	30 AWG
Conductor cross-section, flexible , min.	0,2 mm²
Conductor cross-section, rigid , max.	4 mm²
Conductor cross-section, rigid , min.	0,2 mm²
Connection system	Clamping yoke
Number of terminals	3 for L/N/PE
Wire connection cross section, flexible (input), max.	4 mm²

Connection data (output)

Conductor cross-section, AWG/kcmil , max.	12 AWG
Conductor cross-section, AWG/kcmil , min.	30 AWG
Conductor cross-section, flexible , max.	4 mm²
Conductor cross-section, flexible , min.	0,2 mm²
Conductor cross-section, rigid , max.	4 mm²
Conductor cross-section, rigid , min.	0,2 mm²
Connection system	Clamping yoke connection
Number of terminals	4 (++ / --)

Connection data (signal)

Wire connection cross-section, flexible (signal), max.	1,5 mm²
Wire connection cross-section, flexible (signal), min.	0,2 mm²
Wire connection method	Screw connection
Wire cross-section, AWG/kcmil , max.	16
Wire cross-section, AWG/kcmil , min.	28 mm²
Wire cross-section, solid , max.	1,5 mm²
Wire cross-section, solid , min.	0,2 mm²

Signalling

Floating contact	Yes
LED green/red	Green: Operation (failure-free) Flashing green: advance warning I>90% Green/red flashing: output switched off (switch-off mode) Flashing red: overload/error
Status relay (max. load)	Output voltage OK (30 V DC / 1 A)

Downloads

Approval/Certificate/Document of Conformity	[DNV Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_305414) [CSA 61010-1 Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306167) [ATEX Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306168) [IECEx Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306169) [C1D2 Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_307384) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_302255) [UK Conformity Assessed](https://mdcop.weidmueller.com/mediadelivery/asset/900_311058)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_298660) [Application notes -- PROtop-topGUARD_IO-Link_CODESYS](https://mdcop.weidmueller.com/mediadelivery/asset/900_319010) [Application notes -- PROtop_topGUARD_IO-Link_Twincat](https://mdcop.weidmueller.com/mediadelivery/asset/900_319013)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2467260000)
User Documentation	[Instruction sheets](https://mdcop.weidmueller.com/mediadelivery/asset/900_296375)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[Produkt Information PROTOP DE](http://download.weidmueller.com/asset/download/file/86233) [Produkt Information PROTOP EN](http://download.weidmueller.com/asset/download/file/86234)

Classifications

ETIM 6.0	EC002540
ETIM 7.0	EC002540
ETIM 8.0	EC002540
ETIM 9.0	EC002540
ECLASS 9.0	27-04-07-01
ECLASS 9.1	27-04-07-01
ECLASS 10.0	27-04-07-01
ECLASS 11.0	27-04-07-01
ECLASS 12.0	27-04-07-01
ECLASS 13.0	27-04-07-01
ECLASS 14.0	27-04-07-01

Approvals

Approvals	![ABS](/picture/ABS.gif) ![BURVER](/picture/BURVER.gif) ![CSA](/picture/CSA.gif) ![CSAEX](/picture/CSAEX.gif) ![DETNORVER](/picture/DETNORVER.gif) ![IECEXSIR](/picture/IECEXSIR.gif) ![LLOYDSREG](/picture/LLOYDSREG.gif) ![RINA](/picture/RINA.gif) ![TUEV](/picture/TUEV.gif) ![UKEX](/picture/UKEX.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
