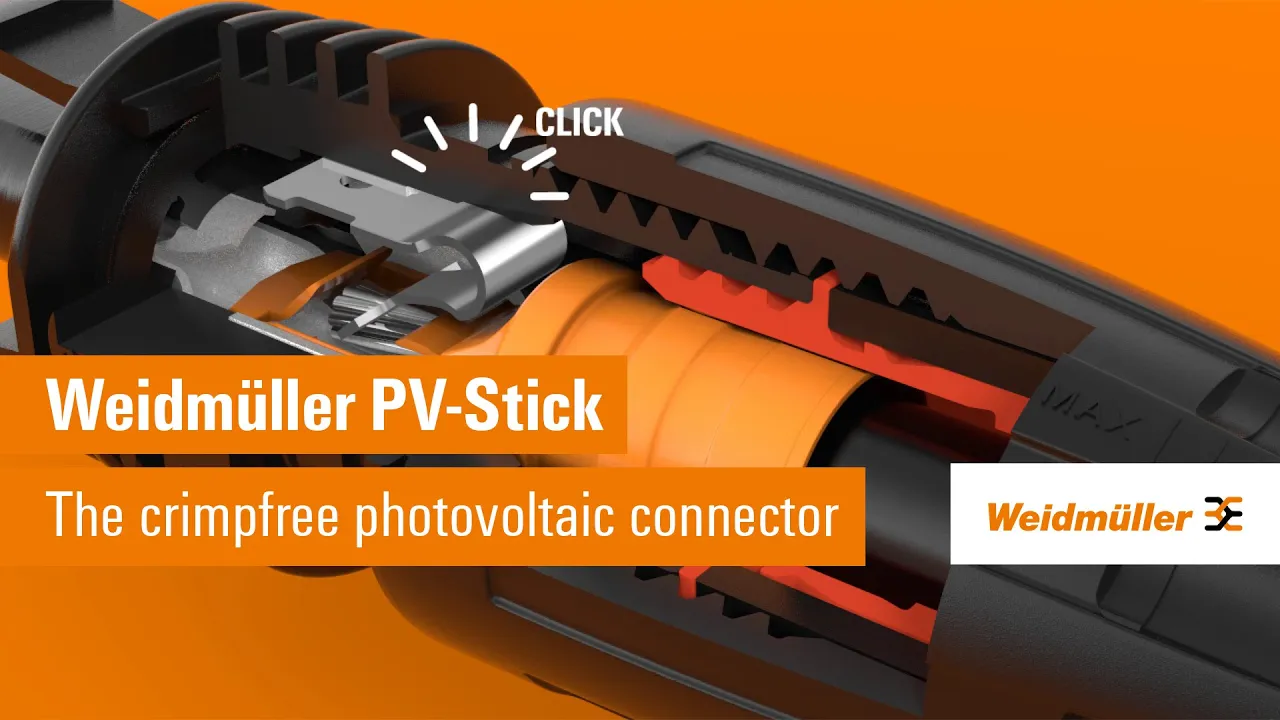

Ominaisuudet
| Version | Photovoltaics, Plug-in connector |
| Order No. | 1422030000 |
| Type | PV-STICK SET |
| GTIN (EAN) | 4050118225723 |
| Qty. | 1 items |
| Net weight | 39,5 g |
| Continuous operating temp., min. | −40 °C |
| Continuous operating temp., max. | 85 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Approvals | TÜV Rheinland (IEC 62852) |
| Cable type | IEC 62930:2017 |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
| Outer cable diameter, max. | 7,6 mm |
| Outer cable diameter, min. | 5,4 mm |
| Pollution severity | 3 (2 within the sealed area) |
| Protection degree |
IP65
IP68 (1 m / 60 min) IP2x open |
| Rated current | 30 A |
| Rated voltage | 1500 V DC (IEC) |
| Time interval | 2 years |
| Approval/Certificate/Document of Conformity |
[TÜV_PV_2023_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_189248)
[TÜV PV Stick 2023_DE_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_317751) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_216471) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1422030000) |
| Product Change Notification |
[20210127 Technical change to PV - STICK](https://mdcop.weidmueller.com/mediadelivery/asset/900_189321)
[20210127 Technische Änderung zu PV - STICK](https://mdcop.weidmueller.com/mediadelivery/asset/900_189322) |
| User Documentation | [Instruction Sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_43130) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002928 |
| ETIM 7.0 | EC002928 |
| ETIM 8.0 | EC002928 |
| ETIM 9.0 | EC002928 |
| ECLASS 9.0 | 22-57-92-03 |
| ECLASS 9.1 | 27-44-01-07 |
| ECLASS 10.0 | 27-44-01-07 |
| ECLASS 11.0 | 22-57-02-92 |
| ECLASS 12.0 | 22-57-02-92 |
| ECLASS 13.0 | 22-57-02-92 |
| ECLASS 14.0 | 22-57-02-92 |
| Approvals |   |
| ROHS | Conform |
