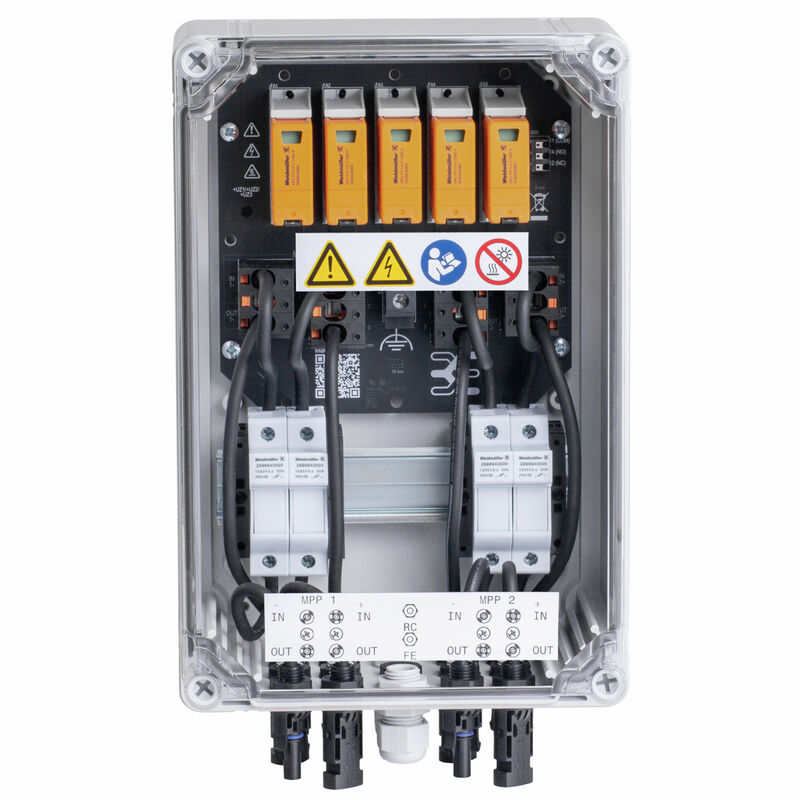

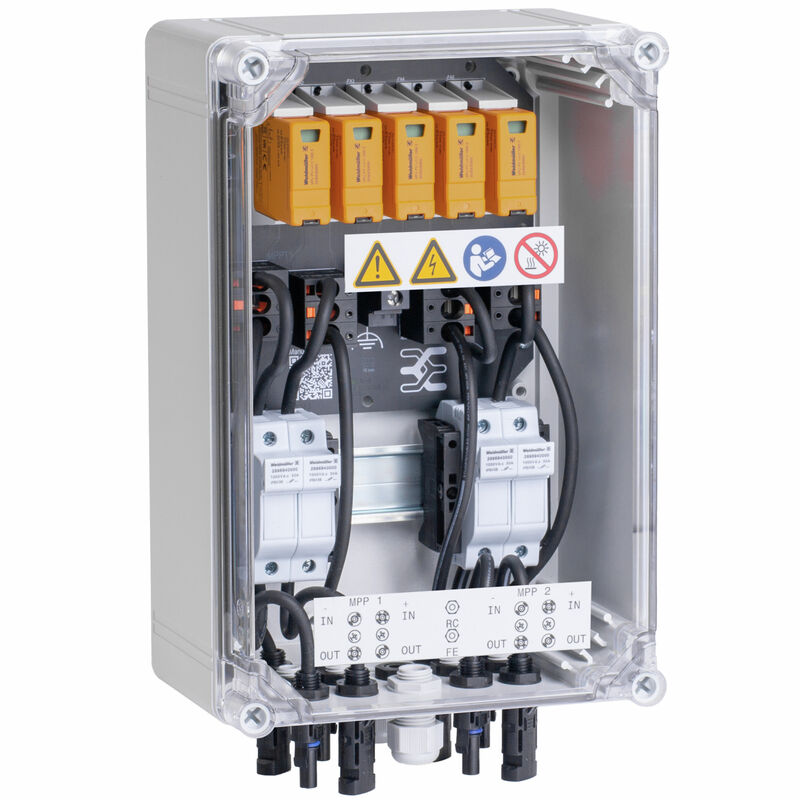

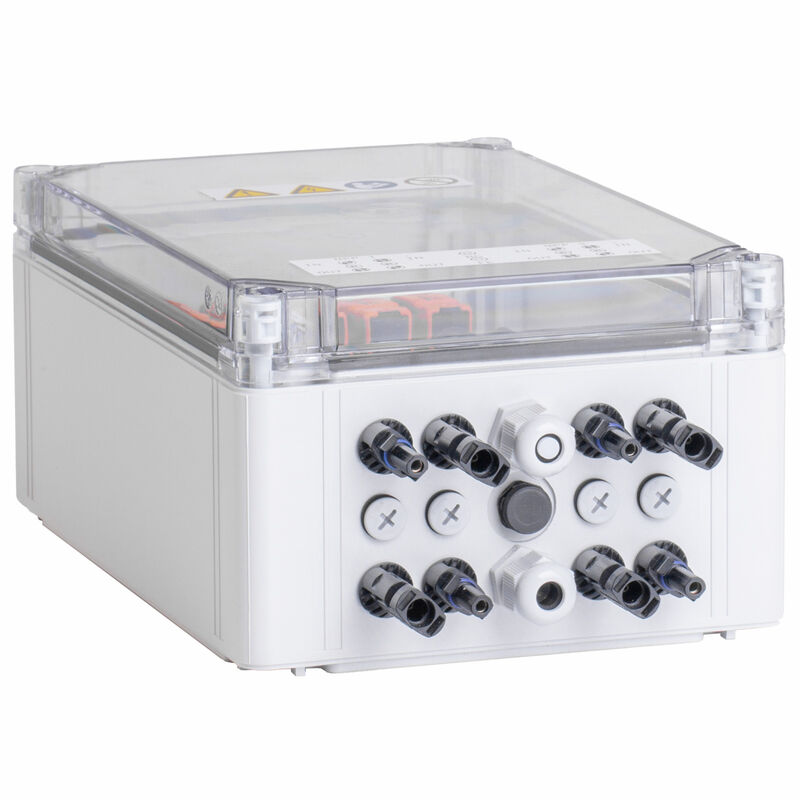

Photovoltaics, Combiner Box, PV Next, 2 MPP's, 1 Input / 1 Output per MPP, Surge protection I / II, With fuse holder, 1000 V

Produkt ID 8000137869
Download datablad Produktdownloads Engineering-support
Tilbehør 3 Er tilbehør til 1 Reservedele 1 Anvendte produkter 22
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Included in delivery Guarantee Electrical characteristics Enclosure General data Inputs Outputs Surge protection DC side DC load break switch Classifications Tender specification sheets

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Photovoltaics, Combiner Box, PV Next, 2 MPP's, 1 Input / 1 Output per MPP, Surge protection I / II, With fuse holder, 1000 V
Order No.
8000137869
Type
PVC DC 1IF 1O 2MPP SPD1R WM4C 10
GTIN (EAN)
4099987194174
Qty.
1 Styk

Dimensions and weights

Depth
132 mm
Depth (inches)
5,197 inch
Depth with add-on components
132 mm
Height
340 mm
Height (inches)
13,386 inch
Width
200 mm
Width (inches)
7,874 inch
Net weight
2.785 g

Temperatures

Ambient temperature
-20 °C…50 °C
Humidity
5...95 %, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
bdab5698-6a20-4370-8e28-8810d882d01a

Included in delivery

Included accessories
  • Article:
    Mounting foot
  • Quantity:
    4
  • Article:
    Sealing plug
  • Quantity:
    1

Guarantee

Time interval
5 years

Electrical characteristics

Current per Maximum Power Point, max.
20 A
Rated DC current per connection
  • Current per string, max.:
    20 A
Rated DC voltage
1.000 V
Rated short-term current resistance
  • Rated current:
    25 A

Enclosure

Cover
with cover
Enclosure attachment
Via mounting foots
Impact resistance
IK08 in accordance with IEC 62208
IK10 in accordance with IEC 62262
Insulating material
Polyester glass-fibre reinforced, Polycarbonate
Protection class
II
Type of mounting
Wall mounting

General data

Installation location
Protected outdoor area (>1 km from sea)
Protection degree
IP65
Standards
EN 61643-31

Inputs

Amount of maximum power points (MPP)
2
Cartridge fuse
10 x 38 mm
Functional earth connector
  • Cable entry:
    • Number of cable entries:
      1
Fuse type
Empty fuse holder
Fuse-link standard
gPV (EN 60269-6)
Fused poles of string
+/-
Max. number of DC inputs
per Maximum Power Point 1 input
Number of string inputs per MPP
1
Number of inputs
1

Outputs

Max. number of DC outputs
per Maximum Power Point 1 output

Surge protection DC side

Discharge current In (8/20 µs)
20 kA
Discharge current, max. (8/20 µs)
40 kA
Lightning test current Iimp (10/350 µs)
6.25 kA
Maximum continuous operating voltage DC UCPV mode +/-, -/PE, +/PE
1.000 V
Protection level Up (+/- , -/PE , +/PE)
≤ 3.8 kV
Protection level Up (+/-)
≤ 3.8 kV
Protection level Up (+/PE)
≤ 3.8 kV
Protection level Up (-/PE)
≤ 3.8 kV
PV system voltage, max. Ucpv
1.000 V
Requirements class
Type I/II
Short-circuit curent ISCPV
11 kA
Standards
EN 61643-31
Standby power consumption PC
<0.2 W
Surge protection DC side
1000 V type I + II
Total discharge current Itotal ( 8/20µs)
50 kA
Total discharge current Itotal (10/350µs)
12,5 kA

DC load break switch

Switch disconnector execution
no switch
Voltage type
DC

Classifications

ETIM 8.0
EC003857
ETIM 9.0
EC003857
ETIM 10.0
EC003857
ECLASS 14.0
22-57-02-92
ECLASS 15.0
22-57-02-92

Tender specification sheets

Long specification

Combiner box for inverters with 2 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.

MPP1:
1 input, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.
1 output, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.

MPP2:
identical to MPP1

Max. string voltage Uoc: 1000 VDC
1 class/type I + II combined arrester with signal contact
Fuse holders for inputs and outputs (fuses 10x38 to be ordered separately)
Connection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²
Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: ≥ 16 mm²
Protection class: IP65
All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 335x200x132 mm

Approval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
