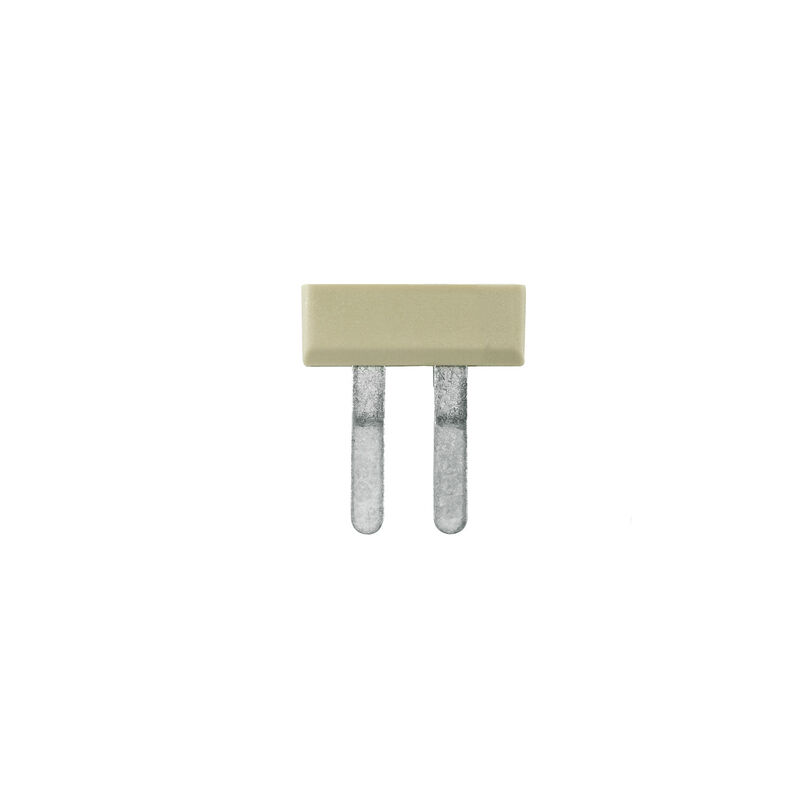

QB 2 WI RA6 IS

QB 2 WI RA6 IS

Cross-connector (terminal), when screwed in, grey, 27 A, Number of poles: 2, Pitch in mm (P): 6.00, Insulated: Yes, Width: 3 mm

Tuotteen tunnus 0482700000
Lataa tietosivu Engineering Support Product Downloads
On lisävaruste 6 Samankaltaiset tuotteet 467
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Dimensions General Rating data Product images Classifications

Approvals

ROHS
Conform

General ordering data

Version
Cross-connector (terminal), when screwed in, grey, 27 A, Number of poles: 2, Pitch in mm (P): 6.00, Insulated: Yes, Width: 3 mm
Best.-Nr.
0482700000
Type
QB 2 WI RA6 IS
GTIN (EAN)
4008190166021
Qty.
50 items

Dimensions and weights

Depth
19 mm
Depth (inches)
0,748 inch
Height
12 mm
Altura (pulgadas)
0,472 inch
Width
3 mm
Width (inches)
0,118 inch
Net weight
0,669 g

Temperatures

Temperatura di magazzinaggio
-25 °C...55 °C
Température ambiante
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
PA 66
Colour
grey
UL 94 flammability rating
V-2

System specifications

Version
Cross-connector

Additional technical data

Explosion-tested version
No
Installation advice
Direct mounting
Type of fixing
when screwed in
Type of mounting
when screwed in

Dimensions

Pitch in mm (P)
6 mm

General

極数
2
設置アドバイス
Direct mounting

Rating data

Rated voltage
400 V
Nominal current
27 A

Product images

Classifications

ETIM 8.0
EC000489
ETIM 9.0
EC000489
ETIM 10.0
EC000489
ECLASS 14.0
27-25-03-03
ECLASS 15.0
27-25-03-03
